Mower conditioner
40
FC883RA
Putting into service
Check that the system is properly engaged.
Secondary PTO shaft
Friction slip clutch
The secondary PTO transmission shaft is fitted with a
friction slip clutch.
-

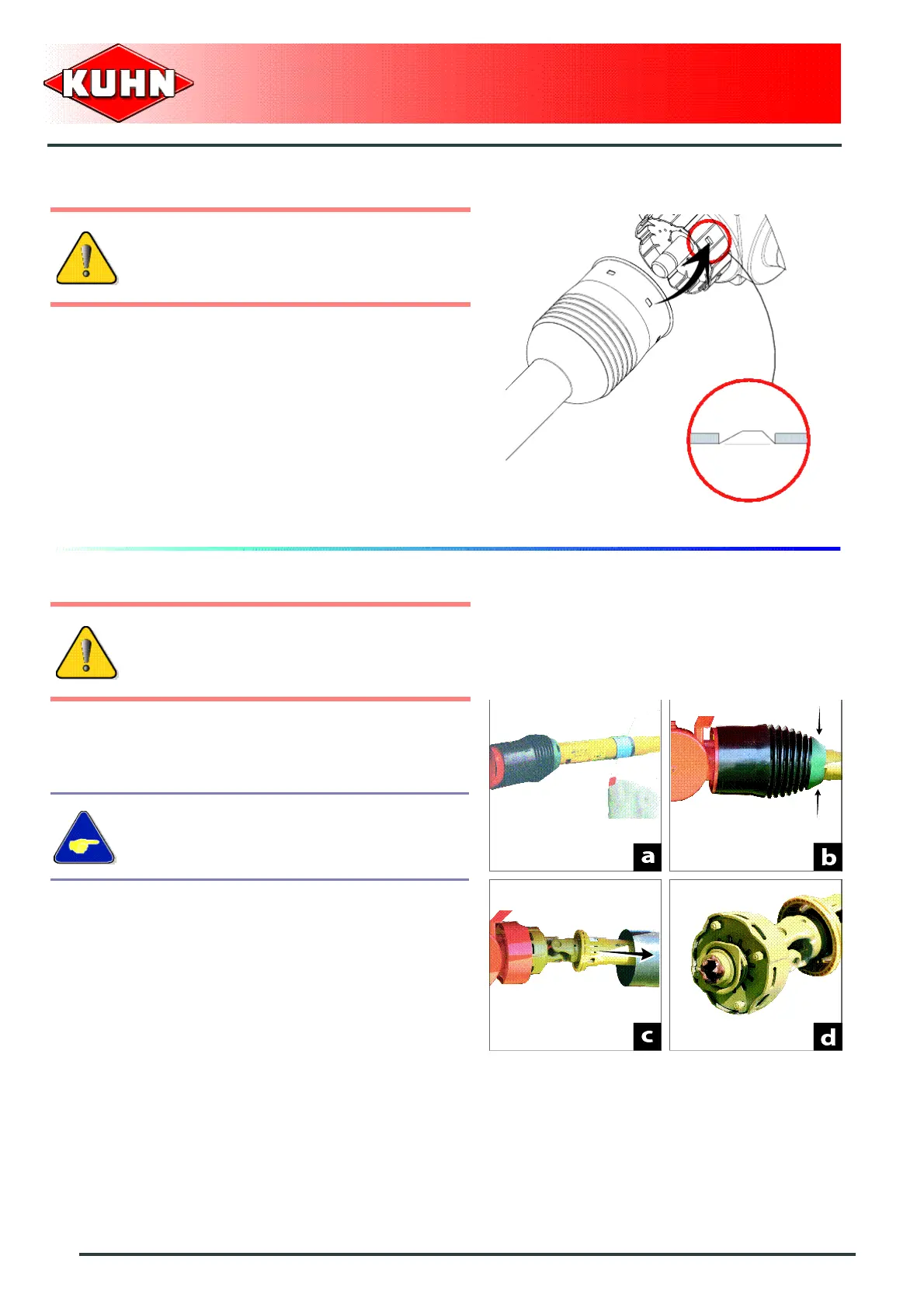

Remove the secondary PTO shaft from the central
gearbox:
- Place the machine in working position (a).
- Press vertically on the 2 lugs using a screwdriver to
release the PTO shaft guard (b).
- Slide the guard along the PTO shaft (c).
- Remove the secondary PTO shaft from the central
gearbox (d).
To avoid serious accidents, the PTO drive
shaft guards must be properly engaged in the
catches.
Before adjusting, maintaining or repairing
the machine, turn off ignition key and wait
until all moving parts have come to a
complete stop.
Before the machine is put into service and
after a long period of non-use, check the
function of slip clutch to ensure it is not
locked up.
