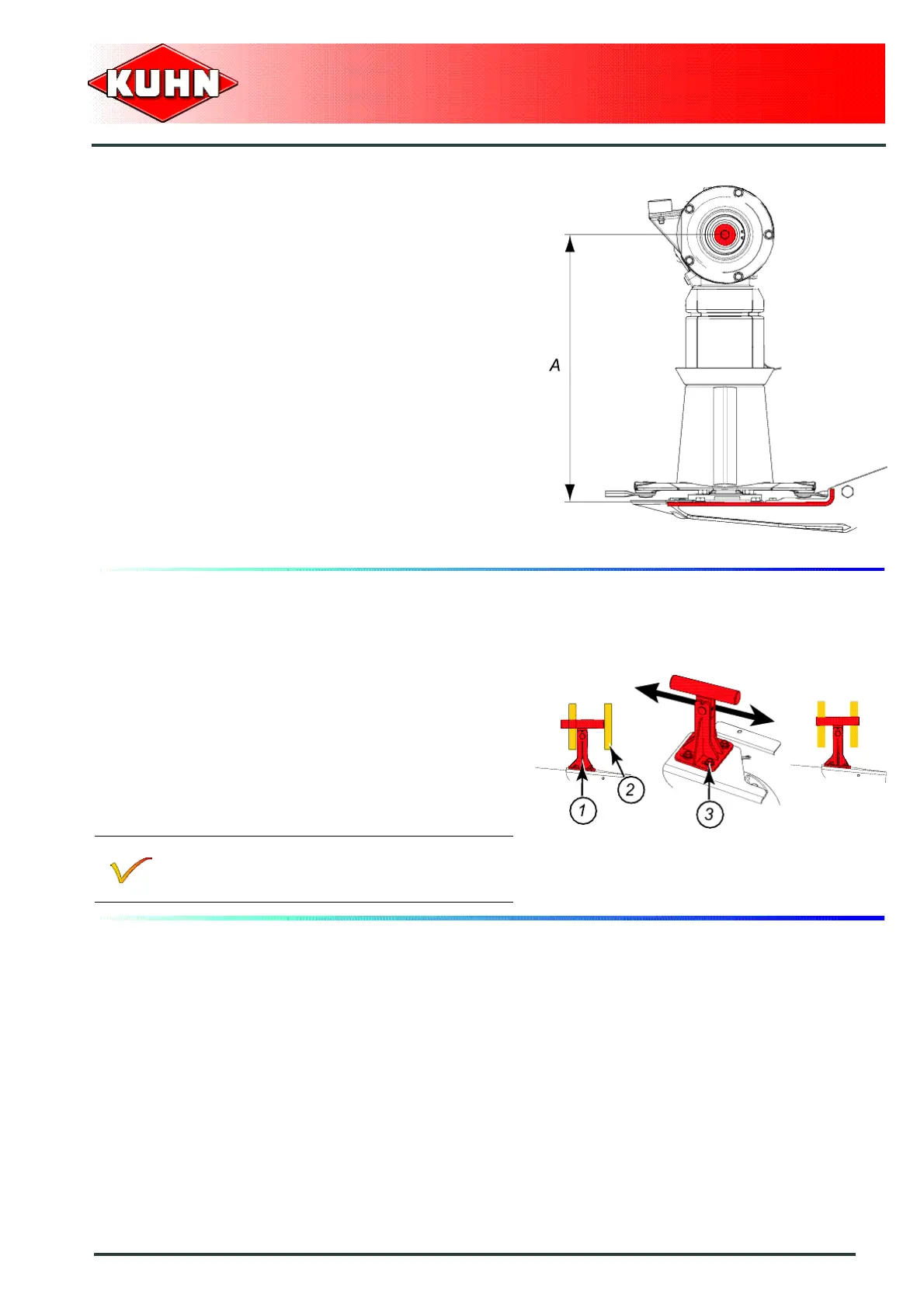

The drive system
Following all service operations on the drive system,
check that the distance between the side gearbox drive
shaft and the upper side of the cutterbar stiffener equals
measure A =577 mm (1’10’’)
+/- 4 mm (0.15’’)
.
Stop pins
The stop pins enable locking the mowing units for
transport.
Adjustment:
- Place the machine in working position.
- Unscrew the 4 bolts (3).
- Slide the stop pin (2) in the required position.
- Tighten the 4 bolts (3).
- Check that stop pins are in line with the transport
stops.
- Repeat procedure if necessary.
Follow same procedure on the second stop pin.
