GENERAL INFORMATION

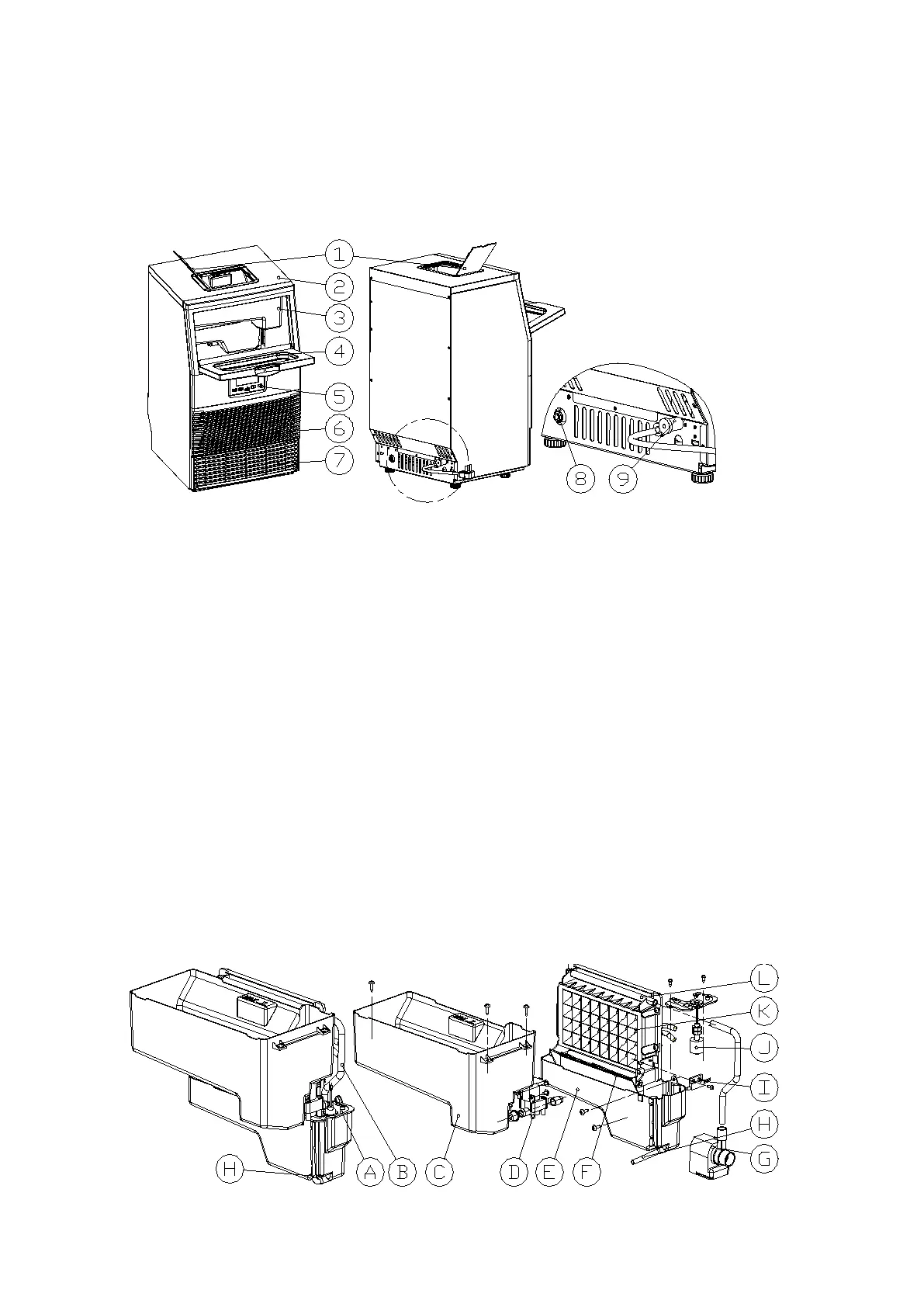

1) Main Unit Construction
1.Water filler cap on top
2.Top cover
3. Ice-making & its water tank assembly: Including ice-making evaporator, water tank, water
charging tank,water control valve, water pump and some detecting parts
4. Door for ice taking
5. Operation panel
6. Air outlet: Must keep the air circulate smoothly, hot air will blow out when unit running.
7.Air inlet
8.Main Water supplying inlet: For connecting the main water supplying pipe
9. Water draining port：Normal plugged with the cap. When need to drain the water, unplug the cap.
And connect the white drain pipe.
Accessory: About 6 feet long and white color water drain pipe、
1/4 inches to 1/2 inches water quick connector of the water faucet, ice spoon
¢5/8 inches diameter and white color water supplying hose
2) Ice-making and its water tank parts
