KUPPET HZB-45 - EXPLOSIVE DRAWINGS

8

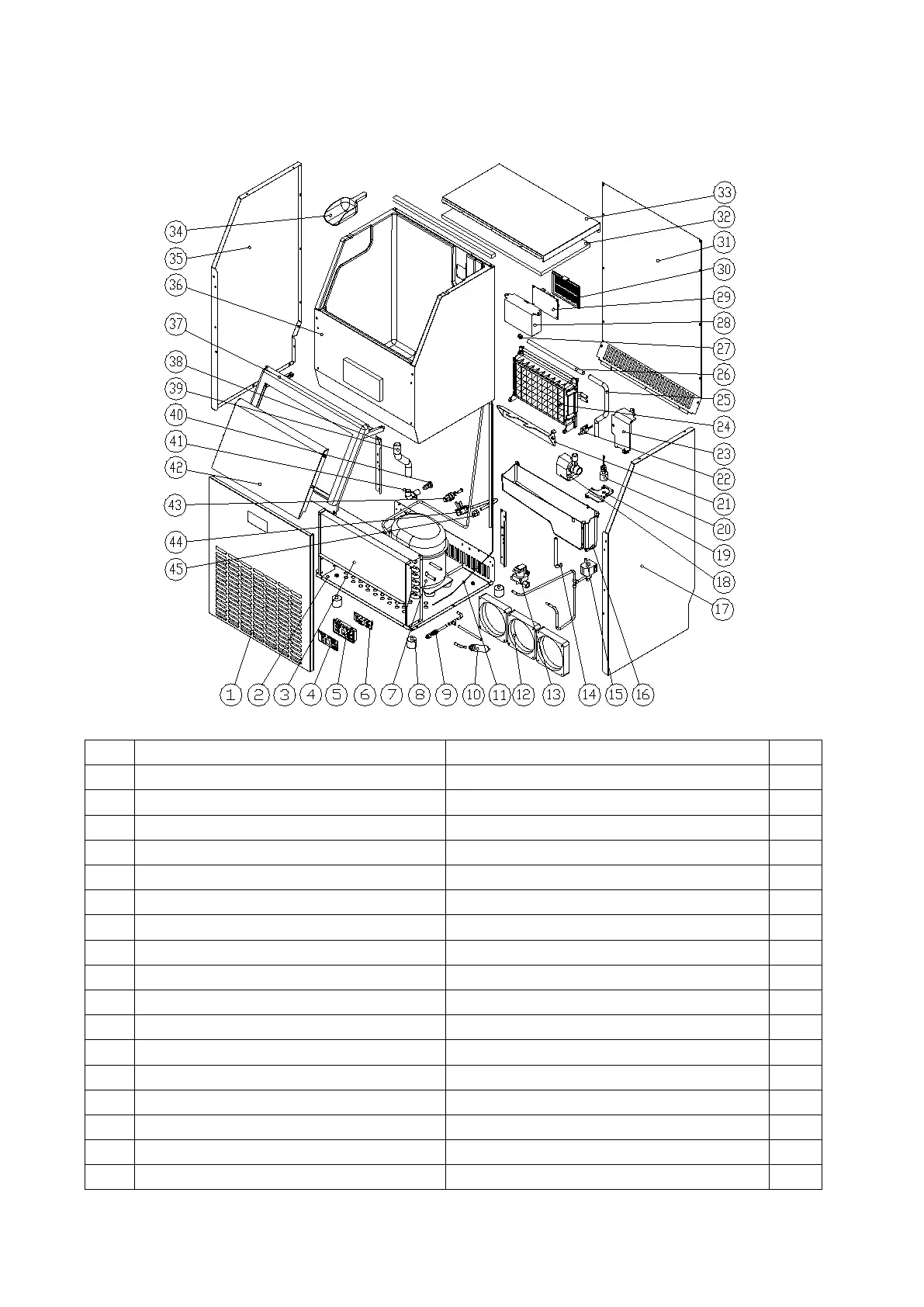

4) EXPLOSIVE DRAWINGS
No.
Parts Name
Material
Qty.
1
Front panel
Stainless steel
1
2
Bottom plate
Zinc-plated steel board
1
3
Condenser
Copper tube and aluminum fin
1
4
Operation panel paper
PET
1
5
Operation panel PCB box
ABS
1
6
Operation panel PCB
Electrical and Electronic parts
1
7
Compressor
AC110-120V, 60Hz
1
8
Adjustable foot
ABS and bolts
4
9
Service valve
Copper
1
10
Dry filter
Copper
1
11
Capillary
Copper
1
12
DC fan
DC12V, Electrical parts
3
13
Water inlet valve
DC12V Electrical parts
1
14
Water drainage pipe of the water tank
Silicone pipe
1
15
Ice-harvesting Electro-magnetic valve
AC115V/60Hz, Electrical parts
1
16
Water tank
ABS
1
17
Right side plate
430 stainless steel，可选
1
