Kurzweil PCR-1 Installation Instructions

14
Tools and Materials Required for Installation
2. Grasp the board as shown in Figure 7, so that the chips
face toward you when you insert the connecting edge of
the board into the socket. Notice the semi-circular
notch at the center of the connecting edge. This notch
aligns with a key on the SIMM socket, and ensures that
you position the board correctly in the socket.

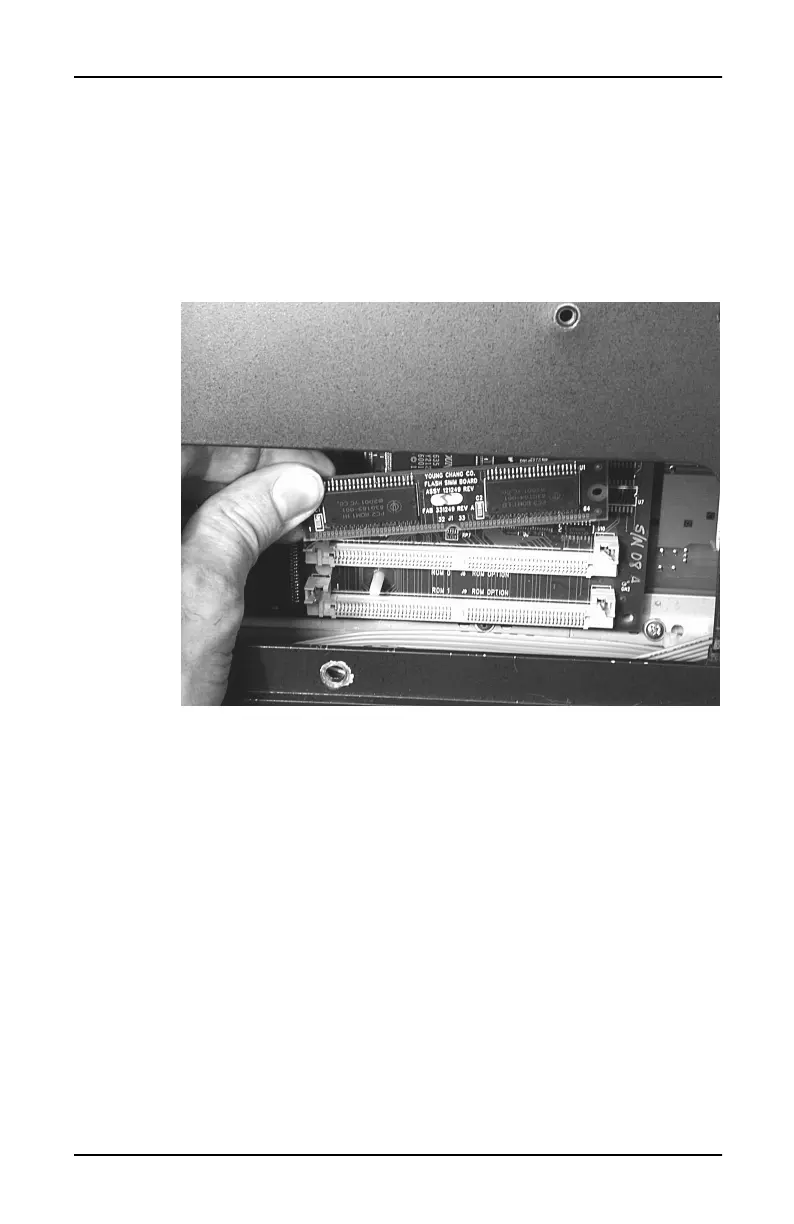

Figure 7 Proper orientation of option board
3. Place the option board in the connection slot in the
SIMM socket, aligning the notch in the board with the
key in the socket. The board will rotate away from you
when you release it.
