Step 6 - Reinstall the Reflector Bracket and Feed
Tube
Follow the instructions below to reinstall the feed
tube and reflector bracket.
a. Properly align the reflector bracket to the
reflector (see Figure 5).
b. Secure the reflector bracket into place using
the six screws and washers you removed in
Step 2b. on page 2 (see Figure 6).
c. Reinstall the feed tube fully into the choke
feed. Then tighten the two 5/64" allen screws
to secure it in place (see Figure 6).
d. Reinstall the radome. Then restore power to
the TracVision system and any connected
receivers and/or multiswitch.
The procedure is complete!

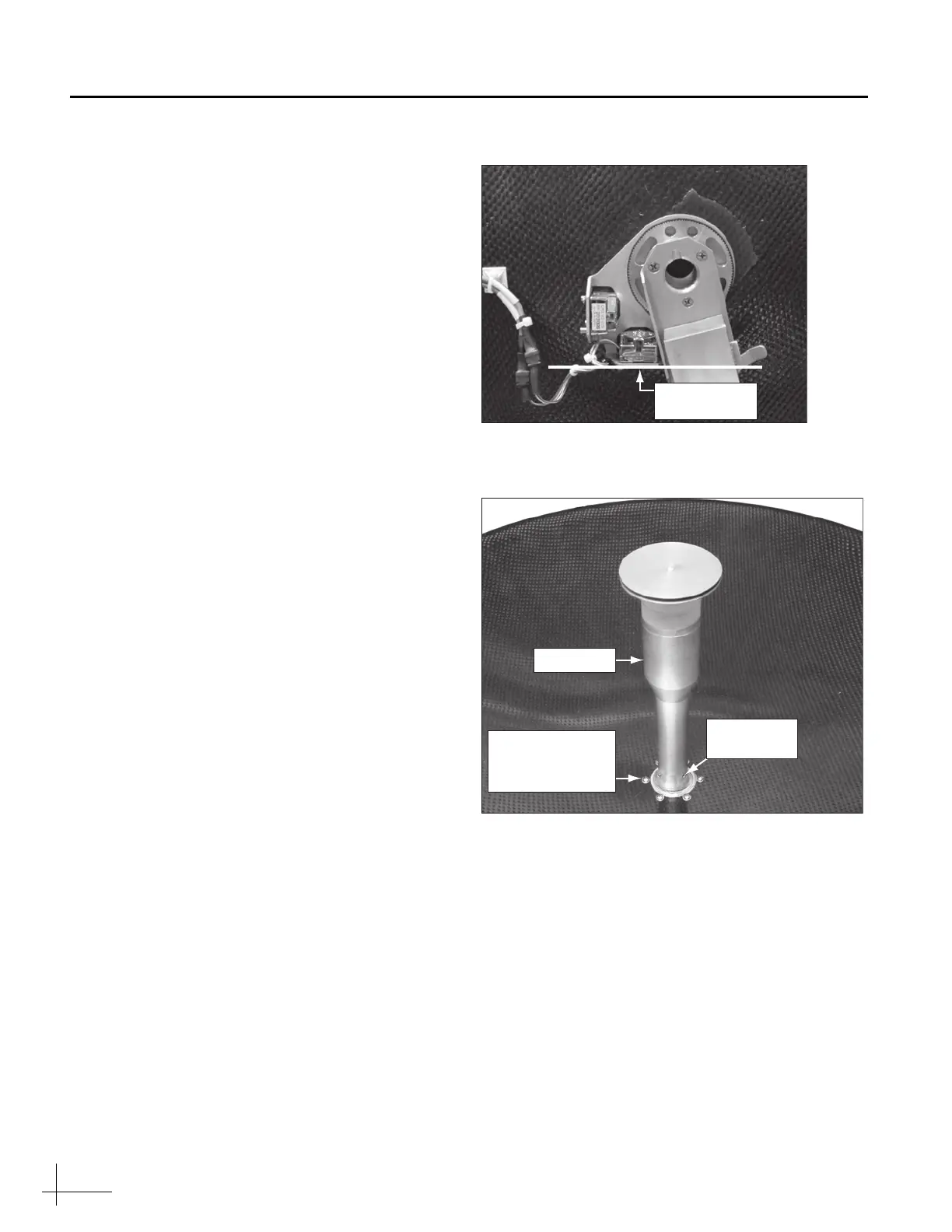

Figure 5 Reflector Bracket Alignment
Figure 6 Feed Tube/Reflector Bracket Screws
Feed Tube
Reflector Bracket
Screws and
Washers (x6)
Feed Tube
Screws (x2)
