9 FE+downward transfer+ascending worm

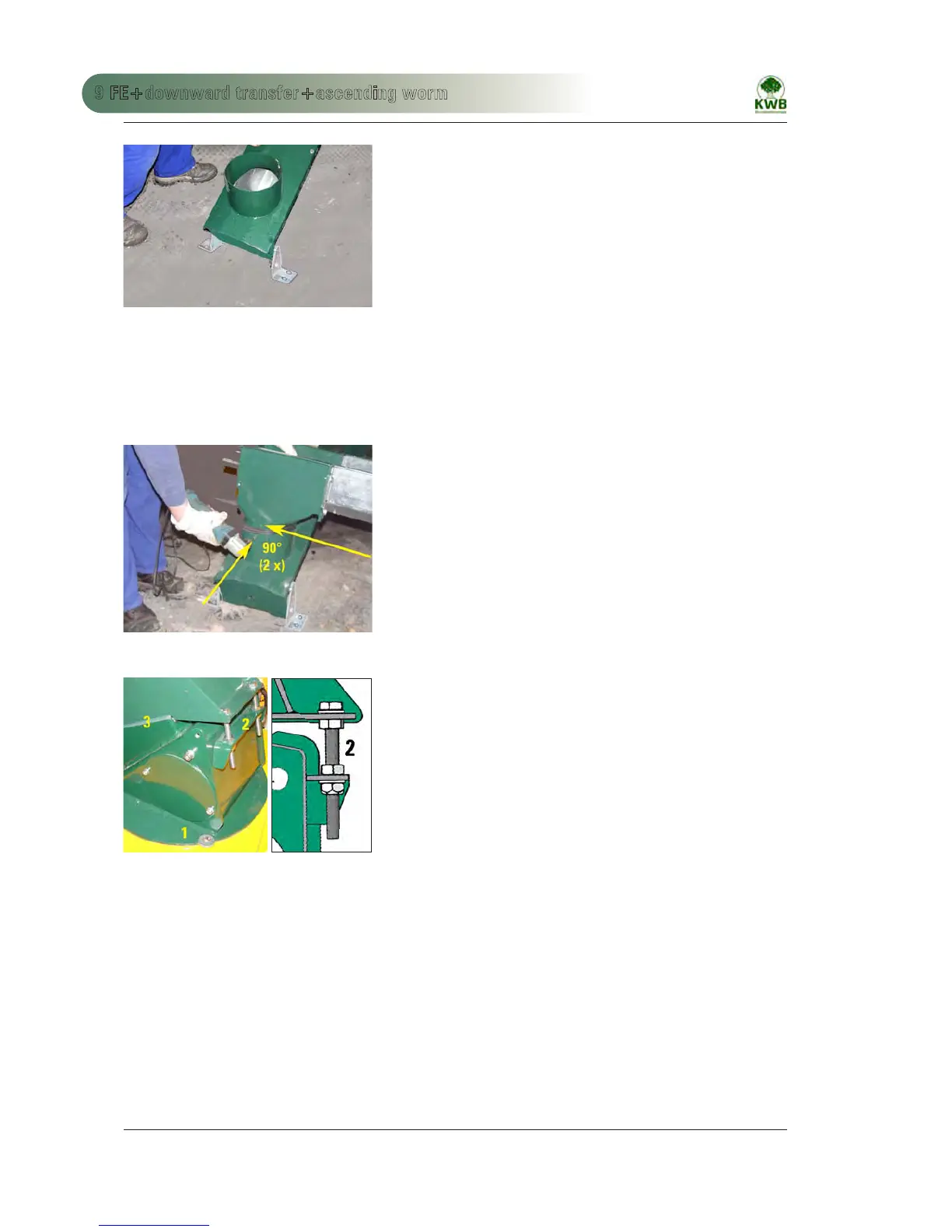

Install the support feet on the channel of the ascending worm.
Fig. 267: Install support feet
9.4 Installing the fuel extractor trough
Follow the instructions in the installation manual, point 2.2.2 to Fig. 121. (Also comply with the instructions in 10.1.2)
Install the edge protection with sealing lip on the connecting pipe of the ascending worm.
Then insert the FE trough into the ascending worm.
Correctly align the troughs.
Drill (Ø 8.5) and bolt the connection 2x on opposing sides (under 90° on
the FE trough).
(Nuts outside)
• 2 saucer-head screws M8 x 25, 2 large washers, 2 self-locking Nuts
(outside)
Place the 4 anchor bolts M10 x 85
Fig. 268: Bolt on the ascending worm 1
To conclude fix the ascending worm on the FS.
(1) Firmly clamp the fire shutter onto the container.
(2) Bolt the ascending worm to the FS.
(Screw head pointing up).
• 2 hex screws M10 x 120, 2 washers, 4 hex nuts, 2 washers,
2 self-locking nuts
(3) Seal the gap at the FS/hopper sheet metal with silicon.
Fig. 269: Bolt the ascending worm 2
9.5 Installing the FE worm drive
Follow the instructions in point 2.2.3 of the manual
