P 5.8
SECTION V
Parts Identification

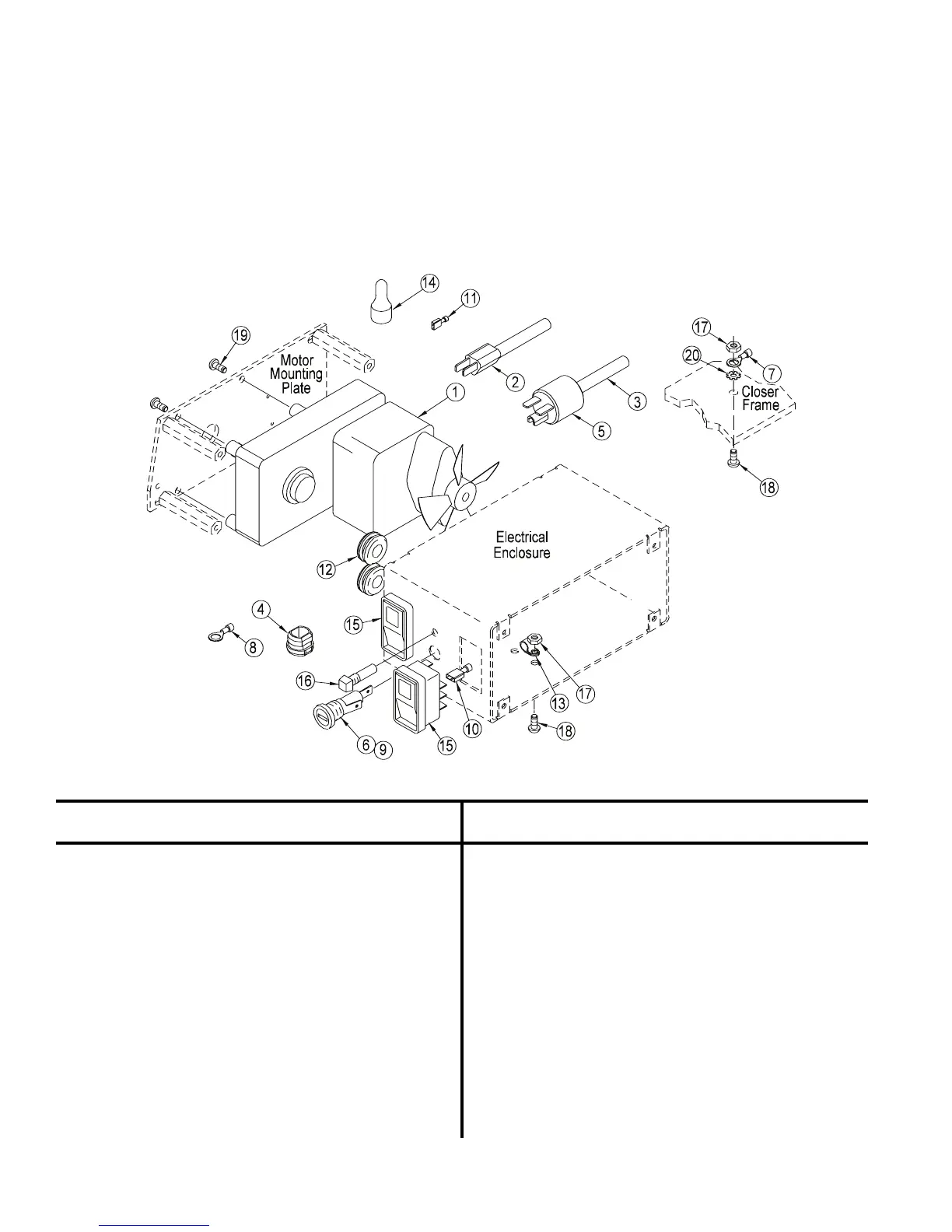

ELECTRICAL COMPONENTS
Item
No.
Part
No.
Description Qty.
1 00-001000 Motor - 115VAC 1
00-001001 Motor - 230VAC 1
2 P11-00064 Cord - Motor - 115VAC 1
3 P11-00019 Cord - Motor - 230VAC 72”
P11-00736 Cord - Motor - 230VAC
International 72”
4 P11-00031 Strain Relief - 220-250VAC 1
P11-00665 Strain Relief - 115VAC 1
5 P11-00033 Plug - Motor - 230VAC 1
6 P11-00042 Holder - Fuse 1
7 P11-00144 Terminal - Closed 1
8 P11-00221 Terminal - Closed Loop 1
9 P11-00270 Fuse - 115VAC 1
P11-00616 Fuse - 220 - 240VAC 1
10 P11-00274 Terminal - Spade 11
Item
No.
Part
No.
Description Qty.
11 P11-00323 Terminal - Spade 4
12 P11-00478 Grommet 2
13 P11-00485 Clamp - Cord 1
14 P11-00812 Joint - Wire 1
15 P12-00287 Switch - Rocker - 115VAC 1
P12-00288 Switch - Rocker - 220-250VAC 1
16 P12-00193 Light - 115VAC 1
P12-00194 Light - 230VAC 1
17 F03-190FS Nut - 10-32UNF - Hex 2
18 F11-190F06S Screw - 10-32UNF x 3/8 Lg
Skt Btn Hd 2
19 F11-190C06S Screw - 10-24UNC x 3/8 Lg
Skt Btn Hd 4
20 F17-190S Washer - Star 1
086A 08 08
Figure 5.4
