SECTION III
Adjustments
P 3.2
086A 08 08
C. REMOVE THE FRONT SHIELD:
Some of the adjustments described in this section
require removal of the front SHIELD.
DISCONNECT POWER.
1. Remove the side access cover from the closer
frame.
2. Remove the two self tapping phillIps screws
(P23-00291) used to fasten the sides of the
SHIELD from the closer frame.
3. Loosen (turn clockwise) the two SHIELD
mounting screws at the bottom of the closer
frame.
4. Press lightly, from inside the closer frame, on
the backside of the SHIELD to remove it.
D. CHECK POSITION:
The check stops the closure strip from moving
backward while the pick retracts.
Depending on the model closer there are two
different mounting locations for the check.
Refer to Figure 3.3 to further understand the check
mounting position. For this adjustment the closure
track must be removed from the closer.
For 086 Model 100 the check is mounted in the
forward mounting holes (the two mounting holes
closest to the front of the closure track).
For 086 Models 200, 300, or 400, the check is
mounted in the back mounting holes (furthest from
the front of the closure track).
1. With the check mounted in the correct
holes, and the mounting screws loose, slide the
check forward toward the front of the closure track
to the end of the mounting slots.
2. Tighten the mounting screws.
E. CLOSURE STOP POSITION:
The end closure is separated from the closure strip
when the closure stop limits the travel of the second
closure in the strip while the pick continues to
advance the first closure.
As with the position of the check, the closure
stop mount is located in a specific way depending
on the closer model being adjusted.
1. For 086 Model 100 the closure stop mount is
mounted as shown (Figure 3.3 upper view).

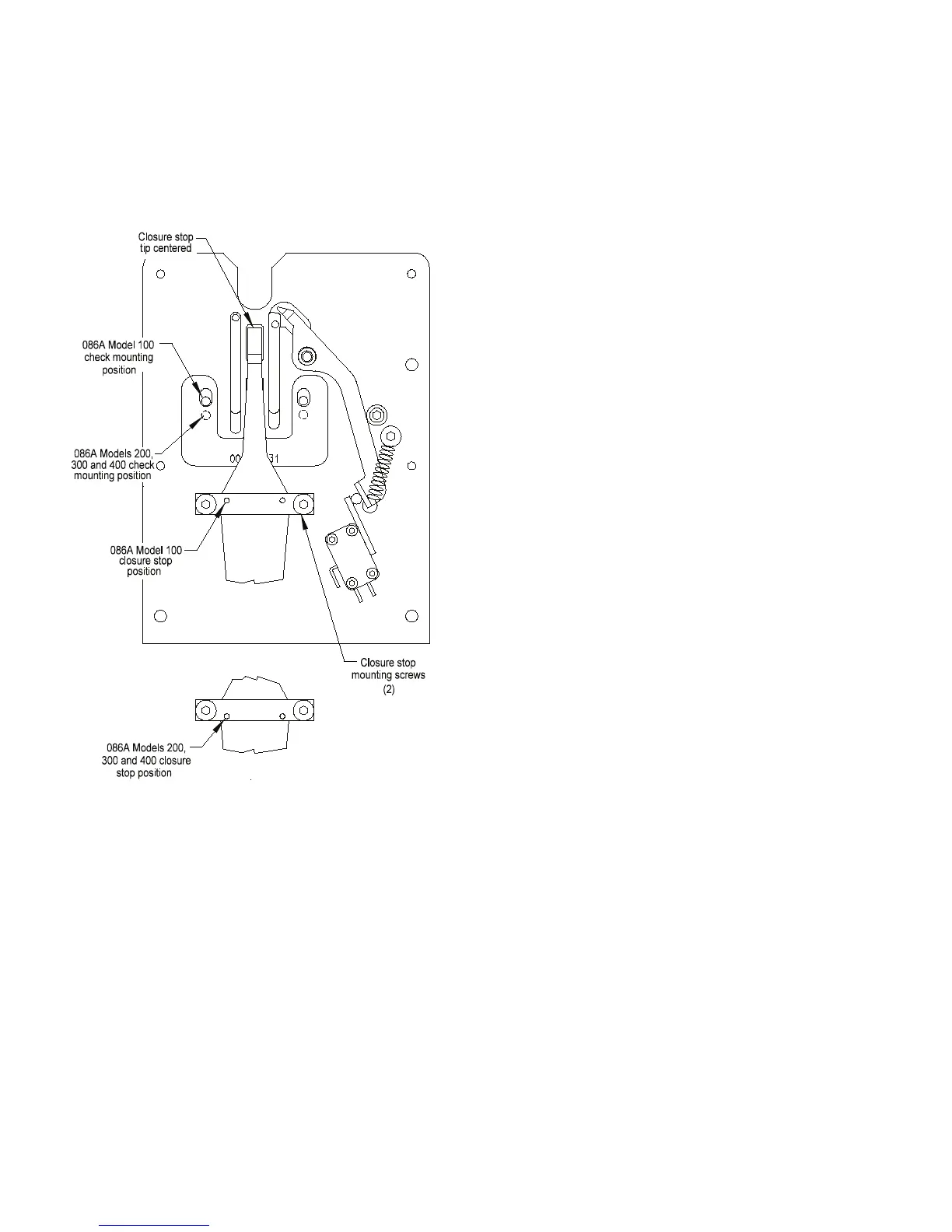

Figure 3.3
Closure track assembly as viewed from the underside.
