Kwikee Level Best - On;Off Switch (No Function); On;Off Switch (Ignition)

A On / Off Switch (no function)
1. No function indicates that the panel is not receiving power, or the vehicle ignition
system is in the off position. See 2B Ignition. Power is transmitted to the control
panel by the multi-wire cable. Check the cable connections at the panel and at the
pump / manifold assembly. Verify that the cable is not damaged and is fully inserted into
connectors (Figure 2a.)
2. Check the controls 12-volt connection that is attached to the pump motor solenoid.
This connection is located on the same terminal as the battery cable from the vehicle
battery. Power for the control system is derived from this connection. The Level Best
control requires a minimum of 12 volts for proper operation (Figure 2b.)
B On / Off Switch
(ignition)
1. Green LED will not
illuminate when turning the
control panel “ON”. This
condition indicates a lack of, or
an inadequate ignition signal, or
a low battery. Check the source
for the ignition signal. The
ignition source must be a
constant signal with a minimum
of 12 volts.
2. The Level Best control
panel will not operate when the
vehicle ignition system is in the
off position.
Level Best Service Guide Page 8
SEGMENT
2
Control

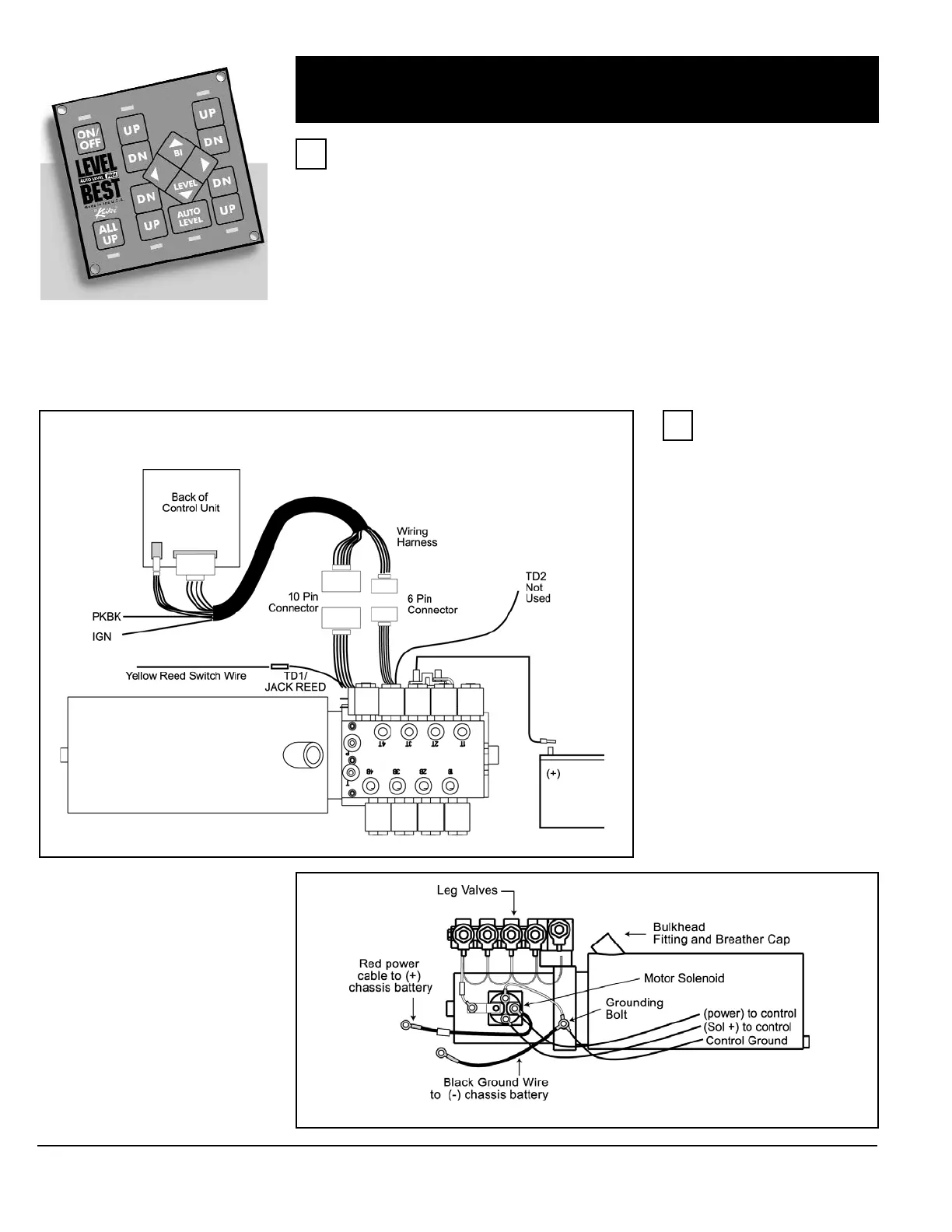

Figure 2a: Pump, Reservoir, Manifold Assembly (top view)
Figure 2b
