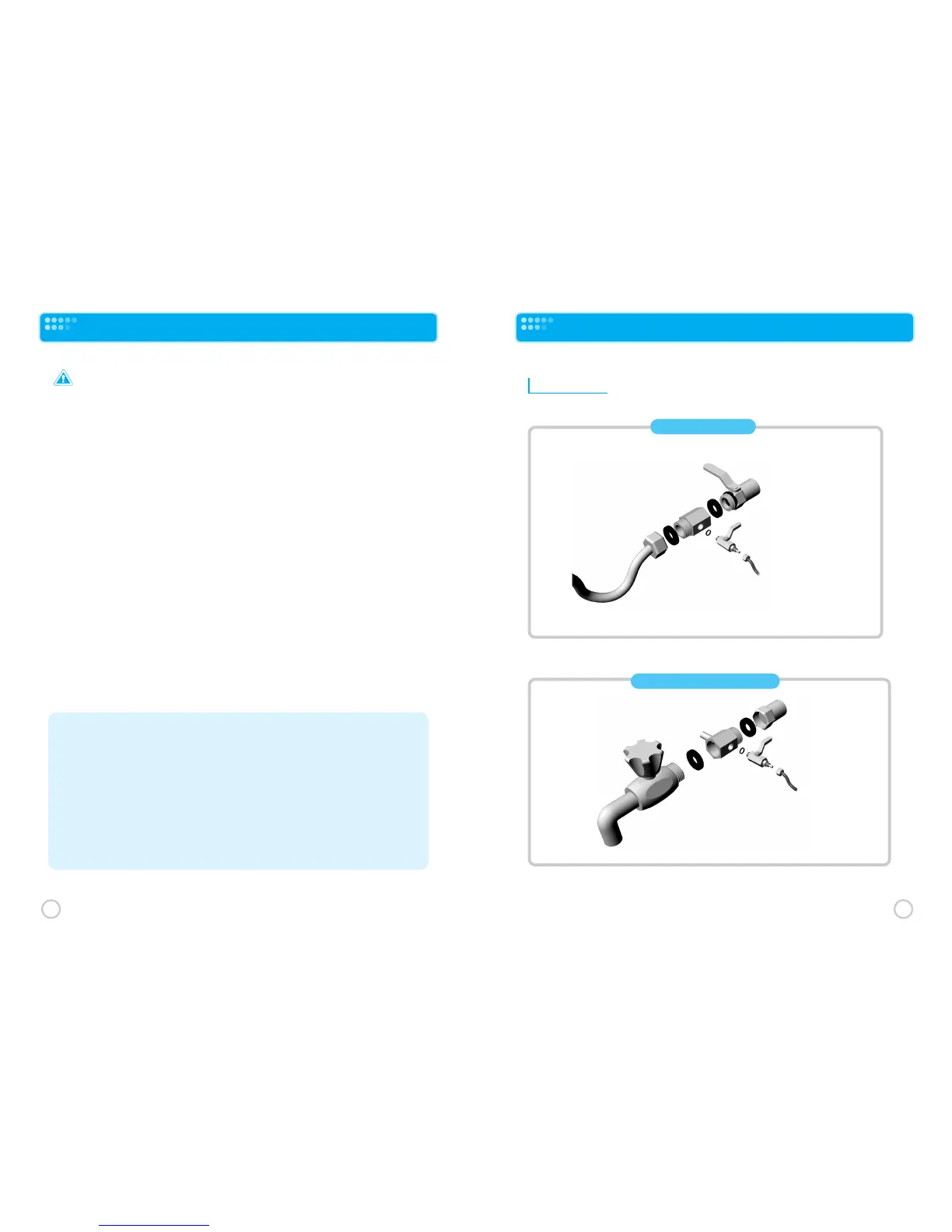

How to instal-Separation cool and hot water type
How to install - Under sink water supply system/General model type
Installation
Under sink installation
Nipple with a hole
Nipple with a hole
Switch valve of incoming water
(Controlling the water pressure)
c
‘O’ Shape Packing
‘O’ Shape Packing
Switch valve of incoming raw water
The connecting hose with product
for incoming water
General model type installation
Nipple with a hole
Switch valve of incoming water
Hose stop down nut
‘O’ Shape Packing
‘O’ Shape Packing
The connecting hose with
product for incoming water
I
f you mix up the raw water inlet with the acidic water outlet, alkali water will not be produced
and be the cause of a failure. So you must not install reversely between the raw water inlet and
the acidic water outlet. If the failure happens because of a reverse installation, the man who
installs the product will have to be charged with the failure.
❼ Cut the acidic water draining hose about 50cm~70cm and connect with the acidic water outlet
(after removing the rubber stopper) as the same connecting way at the raw water inlet in 11 page.
You have to cut the acidic water draining hose within 1m because if the length is over 1 m,
we will be possible to smell in the water.
The acidic water draining hose is placed lower than the body not to affect the quality of water.
❽ Connect and assemble the alkali water delivery pipe (flexible hose) by turning to clockwise
direction with the alkali water outlet placed on the upper side of the body.
(When the leakage is happened, reassemble the product after wrapping up the tape properly.)
❾ Before operating the product, check the leakage by opening the switch valve and there is
no problem then operate the system.
◆
How to check the water pressure and set up
1) When you use a measuring instrument: Measure the pressure of raw water with a measuring
instrument and if the water pressure is low then you will increase the pressure of raw water
and if the incoming water pressure to the product is low then, you will increase the pressure
by using the water pressure controlling valve (see the installation figure).
(Standard -Adjust over 2.0ℓ/min.)
2) When you do not have a measuring instrument (A simple measuring way)
: If water can be filled in the vending machine cup during 6~7 seconds, the water pressure is
about 1.8ℓ/min and it is the proper water pressure for operating the product
To Next Page
