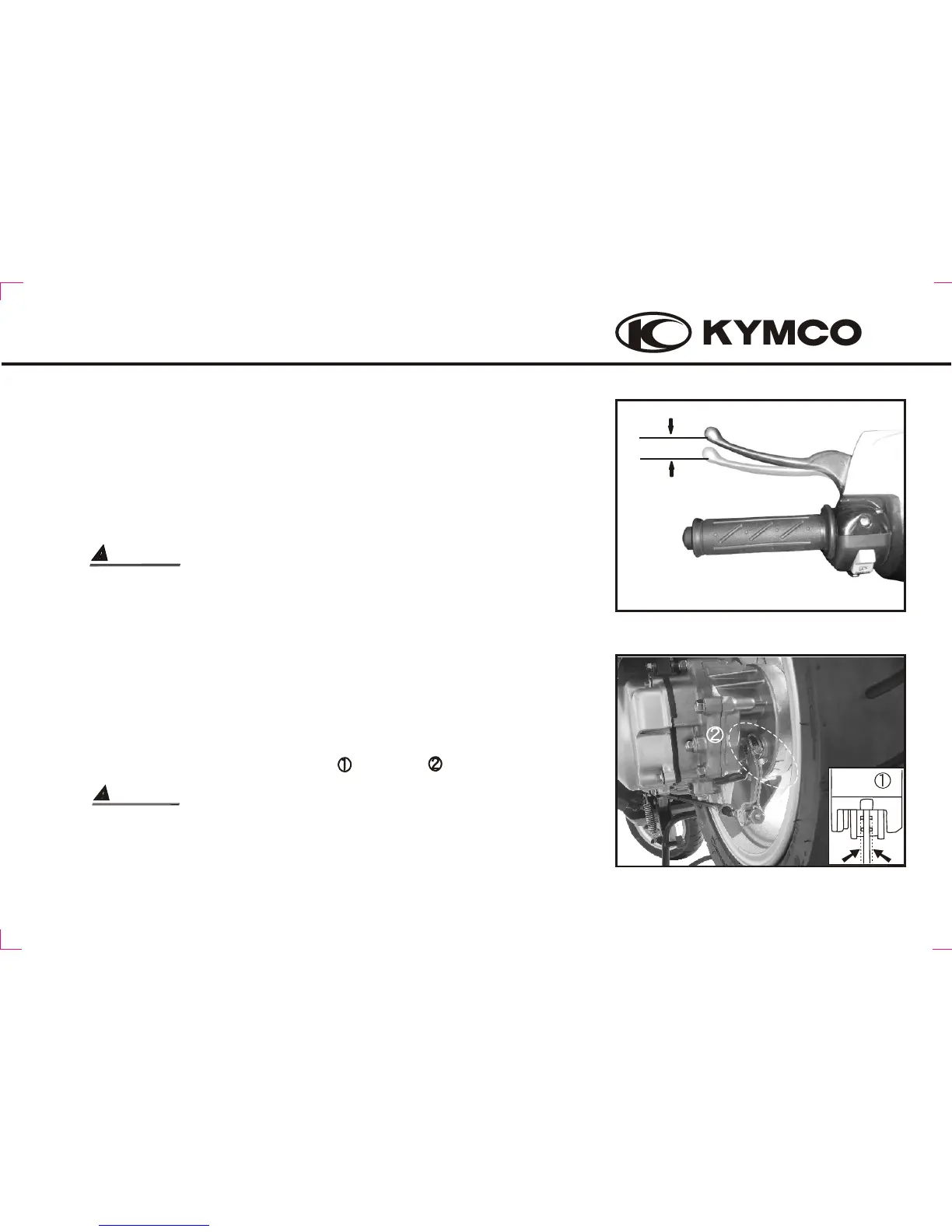

(8) BRAKE LEVER FREE PLAY INSPECTION & ADJUSTMENT(8) BRAKE LEVER FREE PLAY INSPECTION & ADJUSTMENT
Adjust the rear brake pedal free play with the brake
adjusting nuts.
After adjustment, fully apply the rear brake pedal and
check if the free play is within the specified value
(1-2cm).
Adjust the rear brake pedal free play with the brake
adjusting nuts.
After adjustment, fully apply the rear brake pedal and
check if the free play is within the specified value
( cm). 1-2
After the brake is adjusted, align the groove of adjusting
nut with the pin in order to avoid accident and danger
during riding.
After the brake is adjusted, align the groove of adjusting
nut with the pin in order to avoid accident and danger
during riding.
CAUTION: CAUTION:
(9) BRAKE SHOE INSPECTION(9) BRAKE SHOE INSPECTION
When the brake lever is fully applied, if the mark "〉" on
the brake indicator aligns with the reference mark "〉" on
the brake panel, it means the brake shoe is worn out. Go
to our designated distributors or service stations for brake
shoe replacing.
Brake shoe service limit: Front Rear
When the brake lever is fully applied, if the mark "〉" on
the brake indicator aligns with the reference mark "〉" on
the brake panel, it means the brake shoe is worn out. Go
to our designated distributors or service stations for brake
shoe replacing.
Brake shoe service limit: Front Rear
Brake shoe will be worn more quickly if the brake lever is
always applied lightly during riding.
Brake shoe will be worn more quickly if the brake lever is
always applied lightly during riding.
CAUTION: CAUTION:
1-2cm
