10. FINAL REDUCTION
10-2
AGILITY CITY 125
FINAL REDUCTION DISASSEMBLY
Remove the rear brake cable. (
Ö
13-3)
Remove the rear wheel. (
Ö
13-2)
Remove the left crankcase cover. (
Ö
9-2)
Remove the clutch/driven pulley. (
Ö
9-10)
Drain the transmission gear oil into a clean
container.
Remove the transmission case cover
attaching bolts.
Remove the transmission case cover.
Remove the gasket and dowel pins.

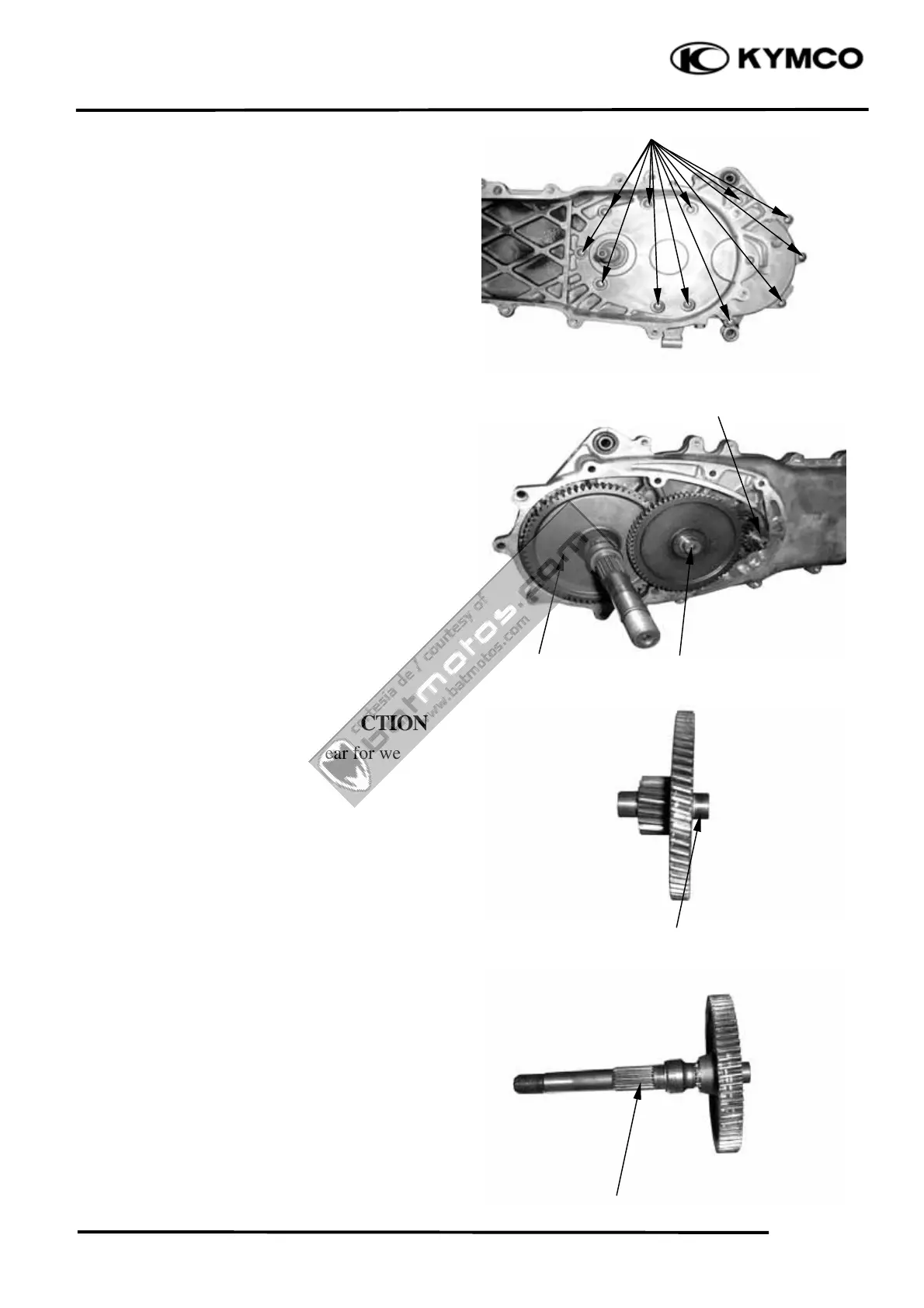

Remove the final gear and countershaft.
FINAL REDUCTION INSPECTION
Inspect the countershaft and gear for wear or
damage.
Inspect the final gear and final shaft for wear,
damage or seizure.
Final Gea
r
Countershaf
t
Drive Shaf
t
Countershaf
t
Bol
t
Final Shaf
t
