1. GENERAL INFORMATION
1-7

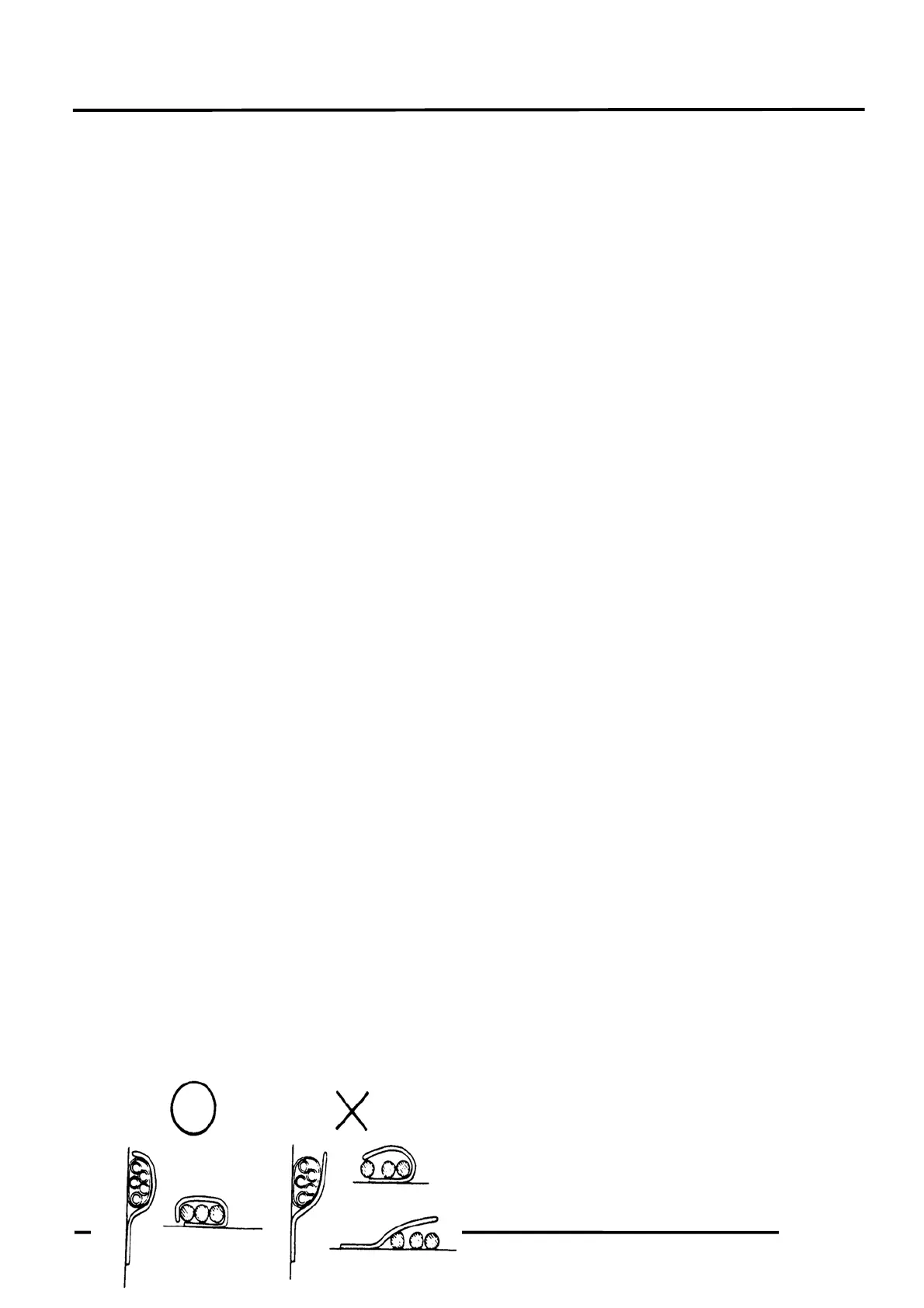

Do not squeeze wires against the weld or its
clamp.
After clamping, check each harness to make sure
that it is not interfering with any moving or
sliding parts.
When fixing the wire harnesses, do not make it
contact the parts which will generate high heat.
Route wire harnesses to avoid sharp edges or
corners. Avoid the projected ends of bolts and
screws.
Route wire harnesses passing through the side of
bolts and screws. Avoid the projected ends of
bolts and screws.
o Contact !
Route harnesses so they are neither pulled
tight nor have excessive slack.
