8. CYLINDER/PISTON
8-13

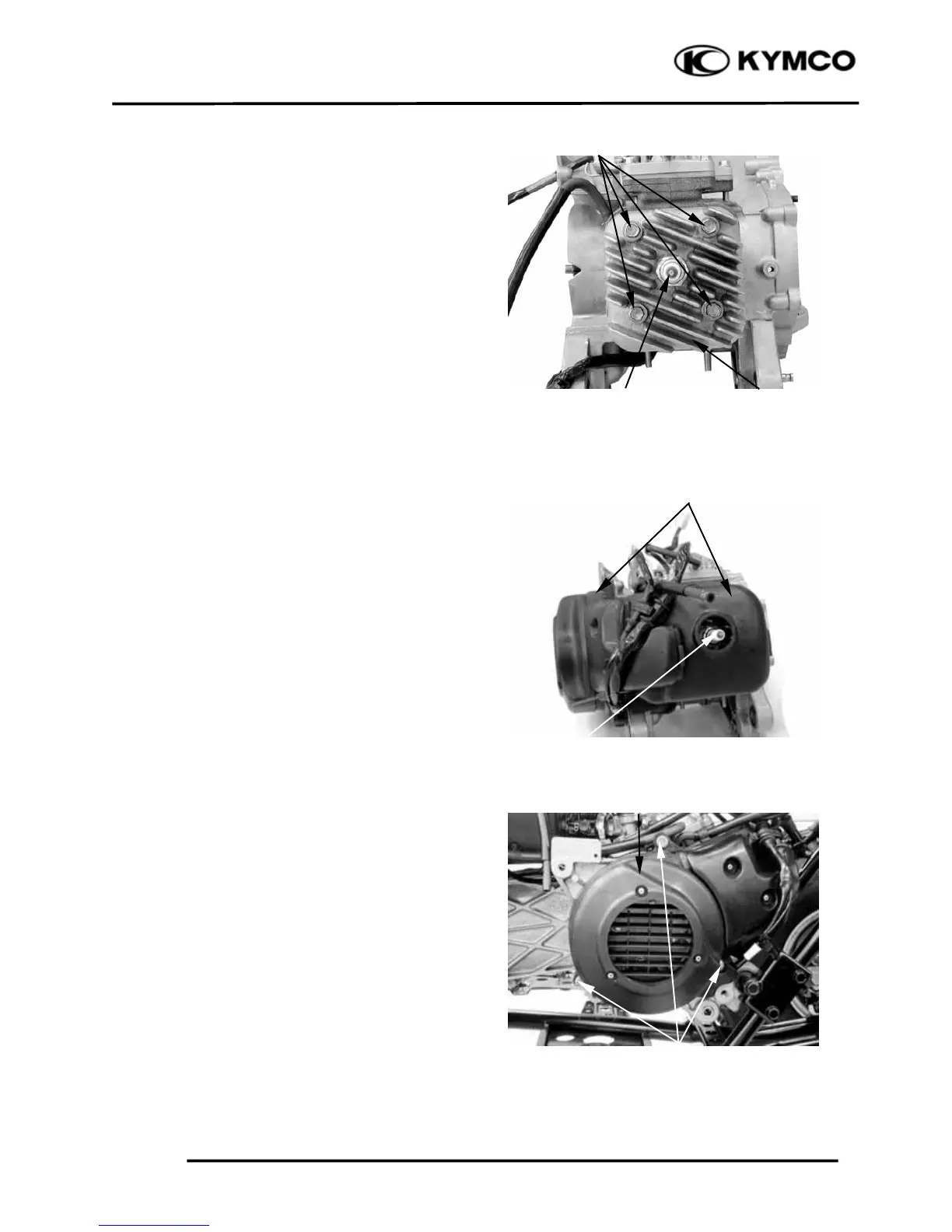

Cylinder Head Bolts Installation
Install and tighten the cylinder head bolts
diagonally in 2 or 3 times.
Torque: 10 N-m (1 kgf-m, 7 lbf-ft)
Install the spark plug.
Torque: 15 N-m (1.5 kgf-m, 11 lbf-ft)
Install the engine hood and fan cover.
Perform the following inspections after
installation:
• Compression test
• Abnormal engine noise
• Cylinder air leaks
Cylinder head Bolts
Bolts
Cylinder Head
Spark Plug
Spark Plug
Engine Hood
Fan Cove
