13. REAR WHEEL/SWING ARM/
HYDRAULIC BRAKE
13-4

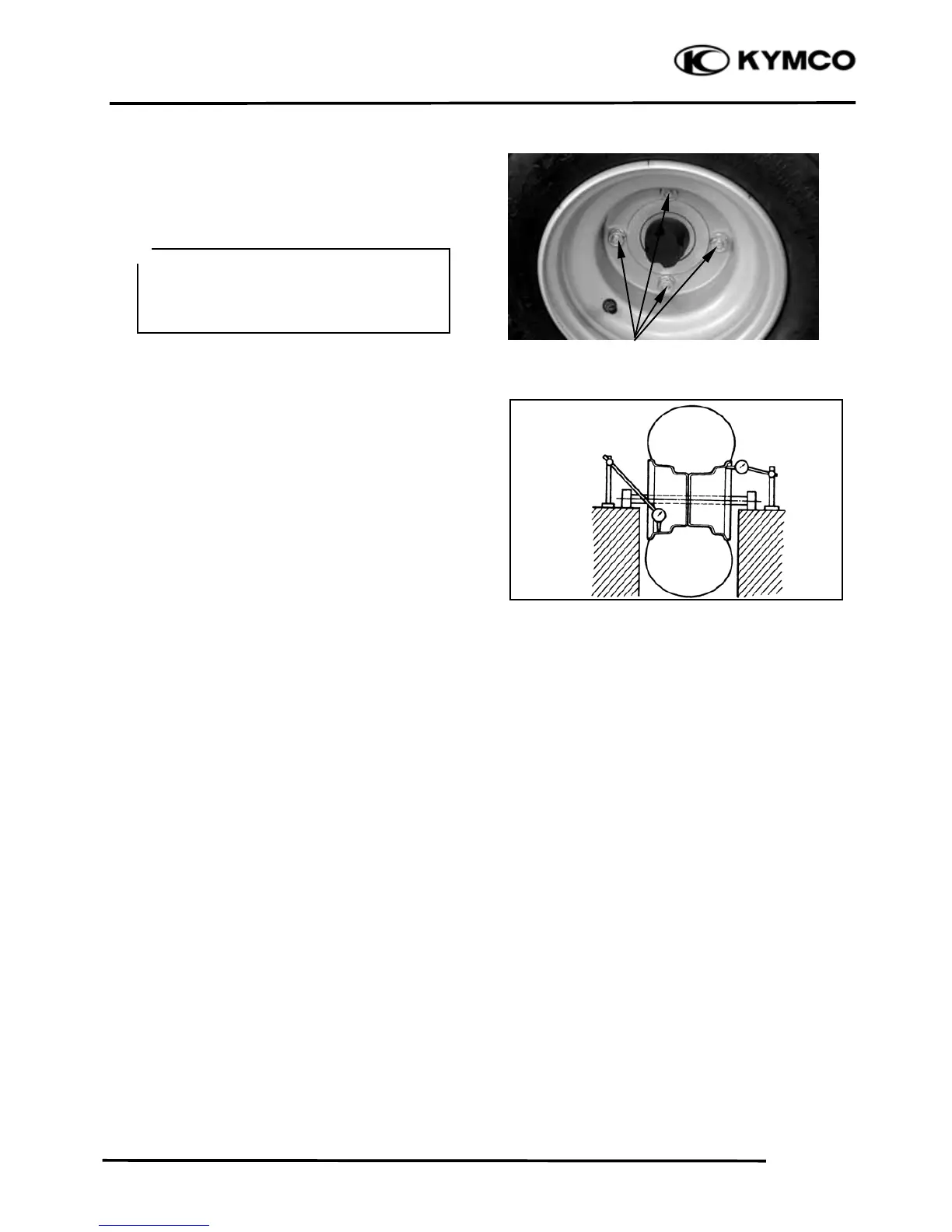

REAR WHEEL
REAR WHEEL REMOVAL
Place the machine on a level place.
Remove four nuts attaching the wheel.
Remove wheel.
INSPECTION
Measure the wheel runout.
Service Limit:
Vertical: 2 mm (0.08 in )
Lateral: 2 mm (0.08 in)
Replace wheel if out of specification.
INSTALLATION
Install the rear wheel and tighten the nuts
(wheel).
Torque: 45 N-m (4.5 kgf-m, 32 lbf-ft)
s
Elevate the rear wheels by placing a
suitable stand under the rear of frame.
Support the machine securely so there is
no danger of it falling over.
＊
