13
.
REAR WHEEL/SWING ARM/
HYDRAULIC BRAKE
13-23

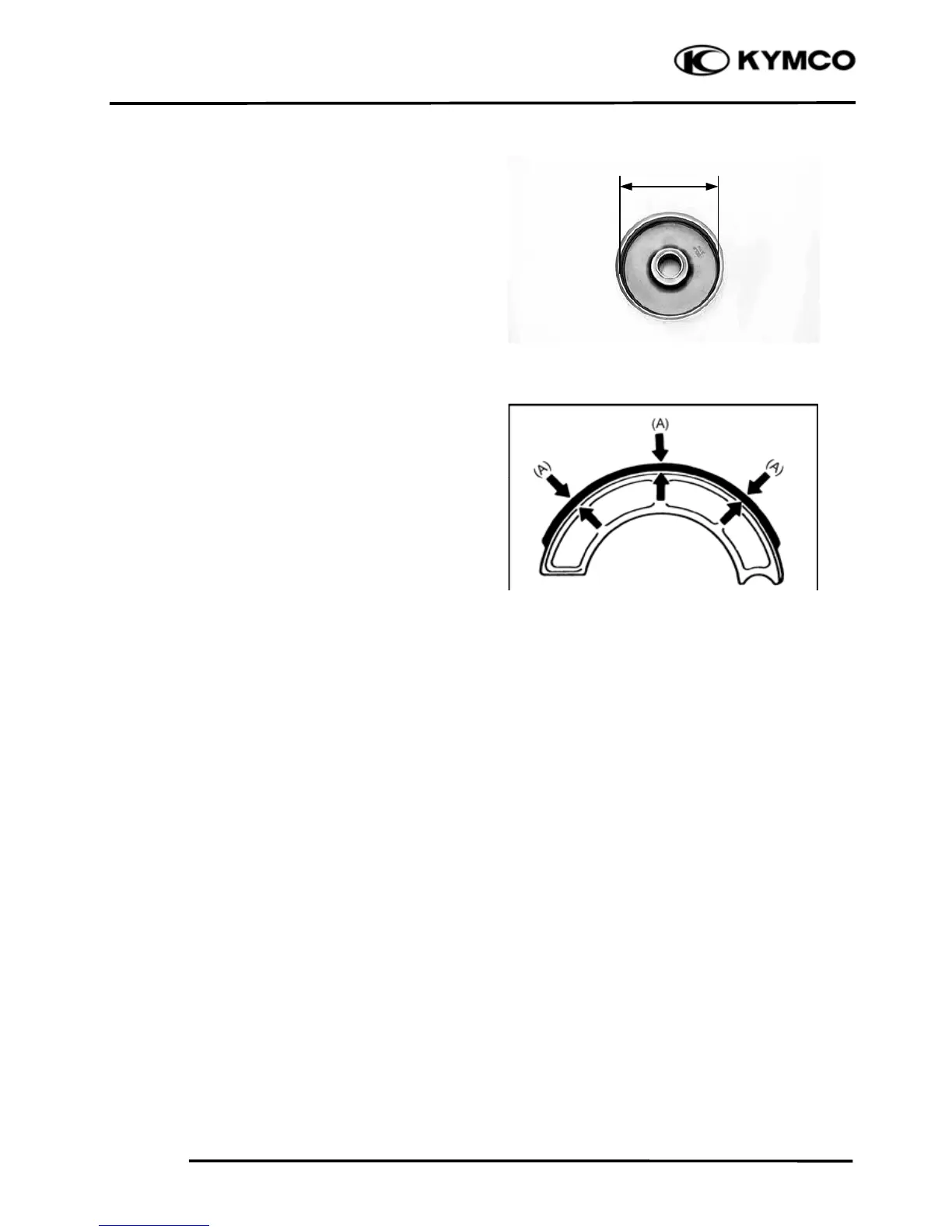

INSPECTION
Inspect the inner surface of the brake drum
is scratches, polish brake drum lightly and
evenly with emery cloth.
Measure the inside diameter of the brake
drum.
Service limit:
131 mm (5.24 in)
Replace it if it is out of specification.
Measure the front brake lining thickness
(A).
Service limit:
2 mm (0.08 in)
INSTALLATION
Reverse the “REMOVE” procedures.
220
