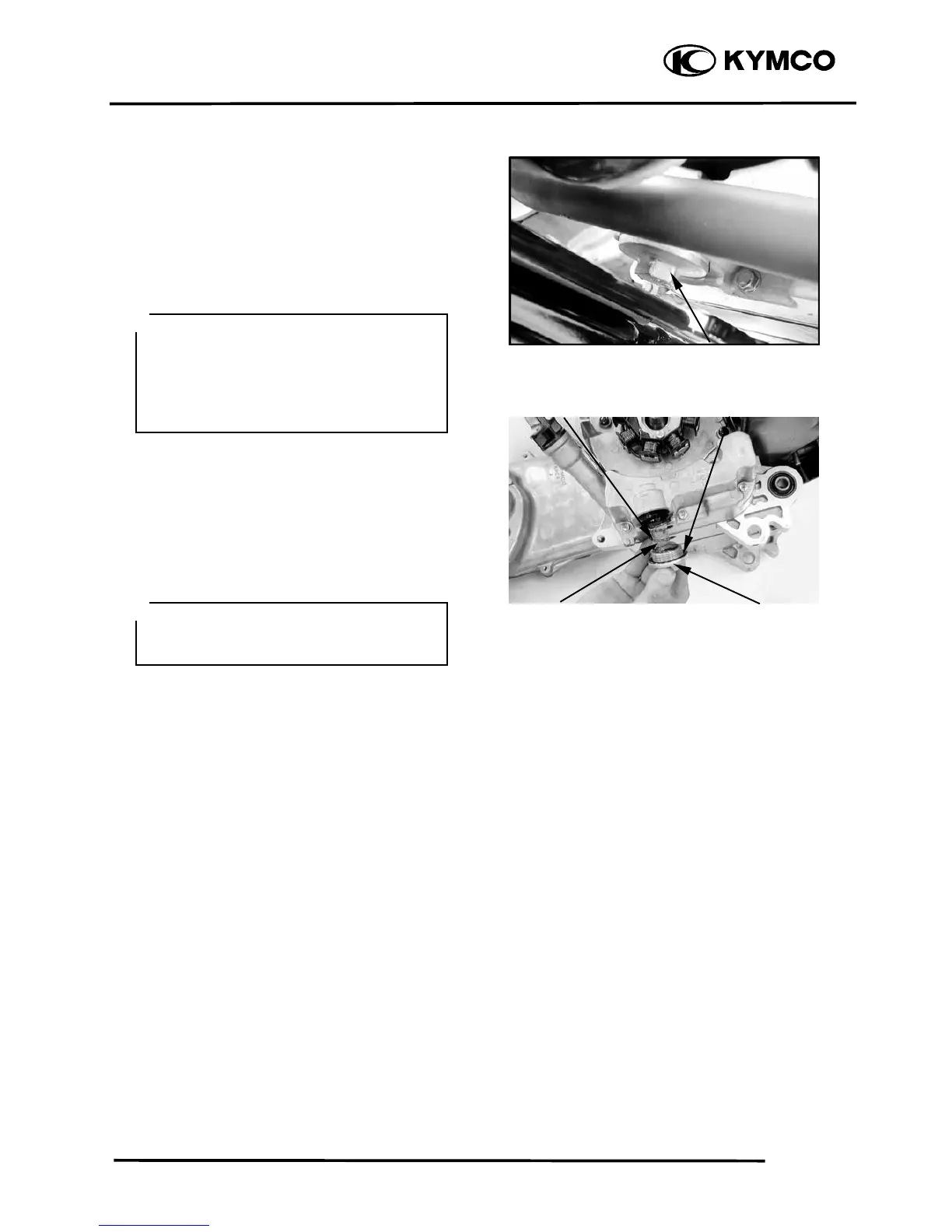

3. INSPECTION/ADJUSTMENT
3-10
ENGINE OIL REPLACEMENT AND
OIL FILTER CLEANING
A. Place the machine on a level place.
B. Warm up the engine for several minutes
and stop it.
C. Place a container under the engine.
D. Remove the oil filler cap and oil filter
cap to drain the oil.
E. Clean the oil strainer with solvent.
F. Inspect the O-ring and replace if
damaged.
G. Reinstall the O-ring, oil strainer,
compression spring and drain plug.
Tighten the drain plug to specification.
Torque: 15 N-m (1.5 kgf-m, 11 lbf-ft)
Oil Capacity:
At disassembly:
0.8 L (0.7 lmp qt , 0.85 US qt)
At change:
0.7 L (0.62 lmp qt , 0.74 US qt)
Oil Filter Cap
．Be sure no foreign material enters the
crankcase.
．When removing the drain plug, the
compression spring, oil strainer and
O-ring will fall out. Take care not to
lose these parts.
＊
Before reinstalling the drain plug, be sure
to install the O-ring, compression spring
and oil strainer.
＊
Oil Filter Cap
Compression Spring
Oil Straine
