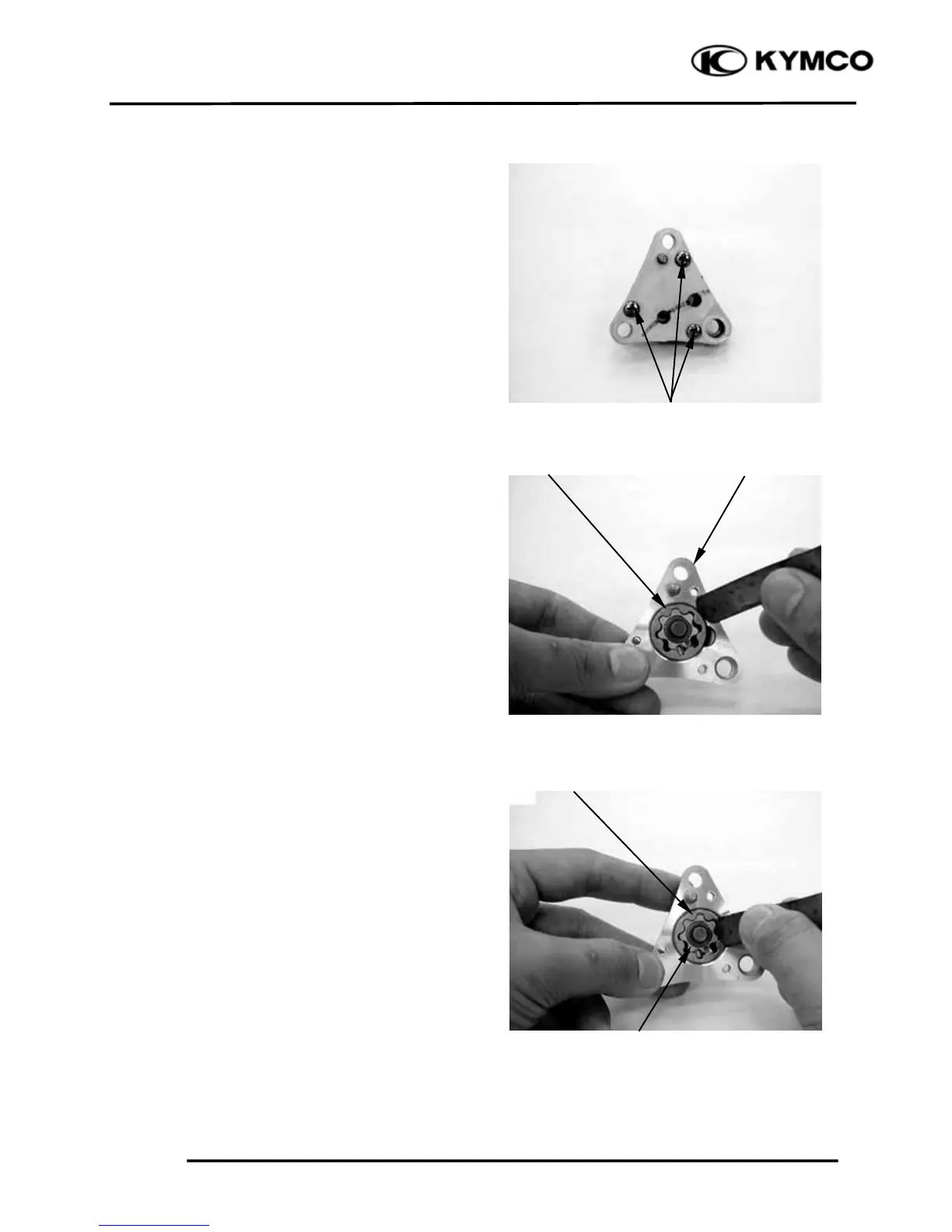

. LUBRICATION SYSTEM
4-11
Bolts
Screws
Oute
r
Roto
r
Pump Body
Oute
r
Roto
r
Inner Roto
r
DISASSEMBLY
Remove the screws and disassemble the oil
pump.
INSPECTION
Measure the pump body-to-outer rotor
clearance.
Service Limit:
0.25 mm (0.01 in)
Measure the inner rotor-to-outer rotor
clearance.
Service Limit:
0.2 mm (0.008 in)
