4
. LUBRICATION SYSTEM
4-13

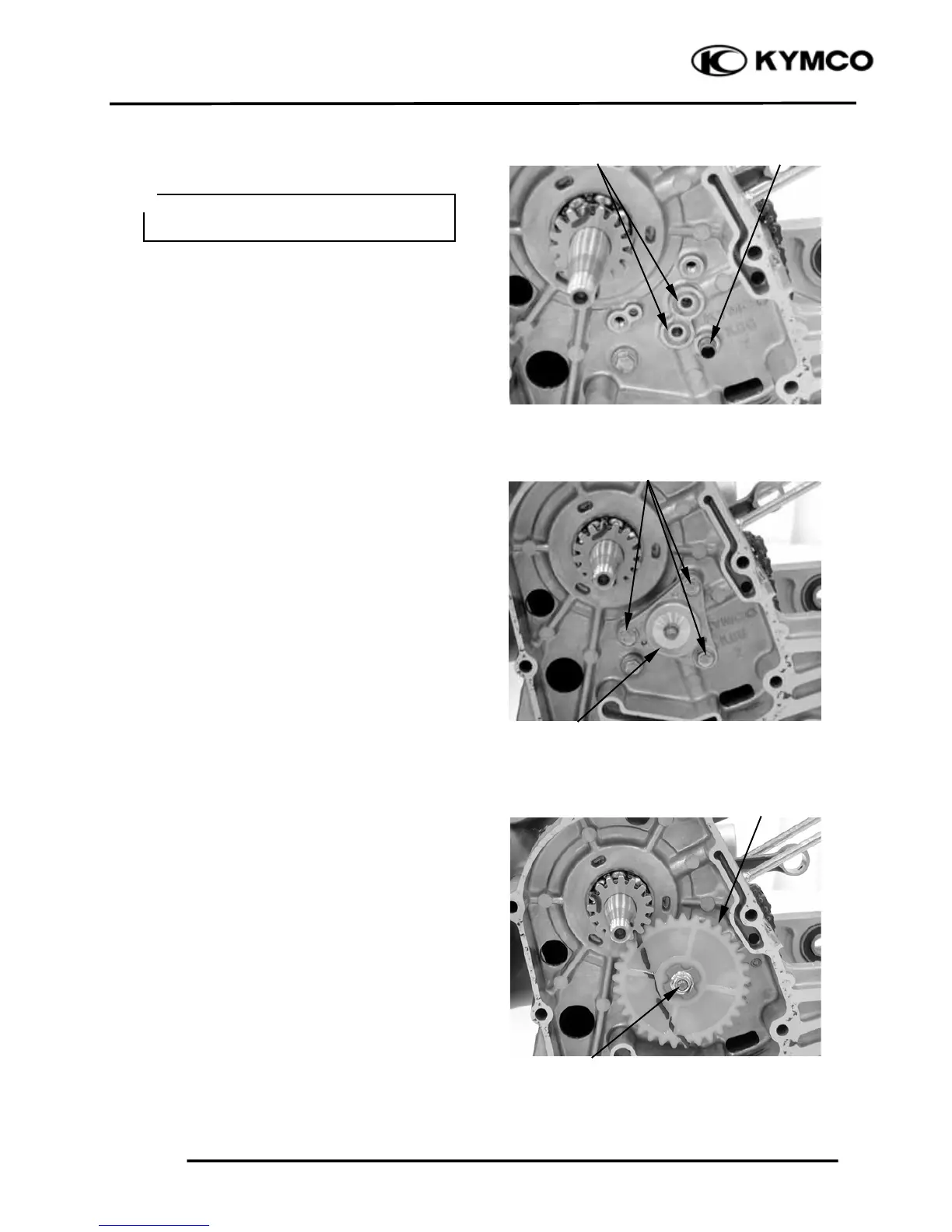

INSTALLATION
Install the O-rings and dowel pin.
Install the oil pump and tighten the bolts.
Make sure that the pump shaft rotates freely
without binding.
Install the oil pump gear and tighten the nut.
Inspect the O-rings and replace if
damaged.
＊
Bolts
Oil Pump
O-rings
Dowel Pin
Oil Pump Gea
r
N
u
t
80
82
