FRONT INSPECTION (MXU
150)

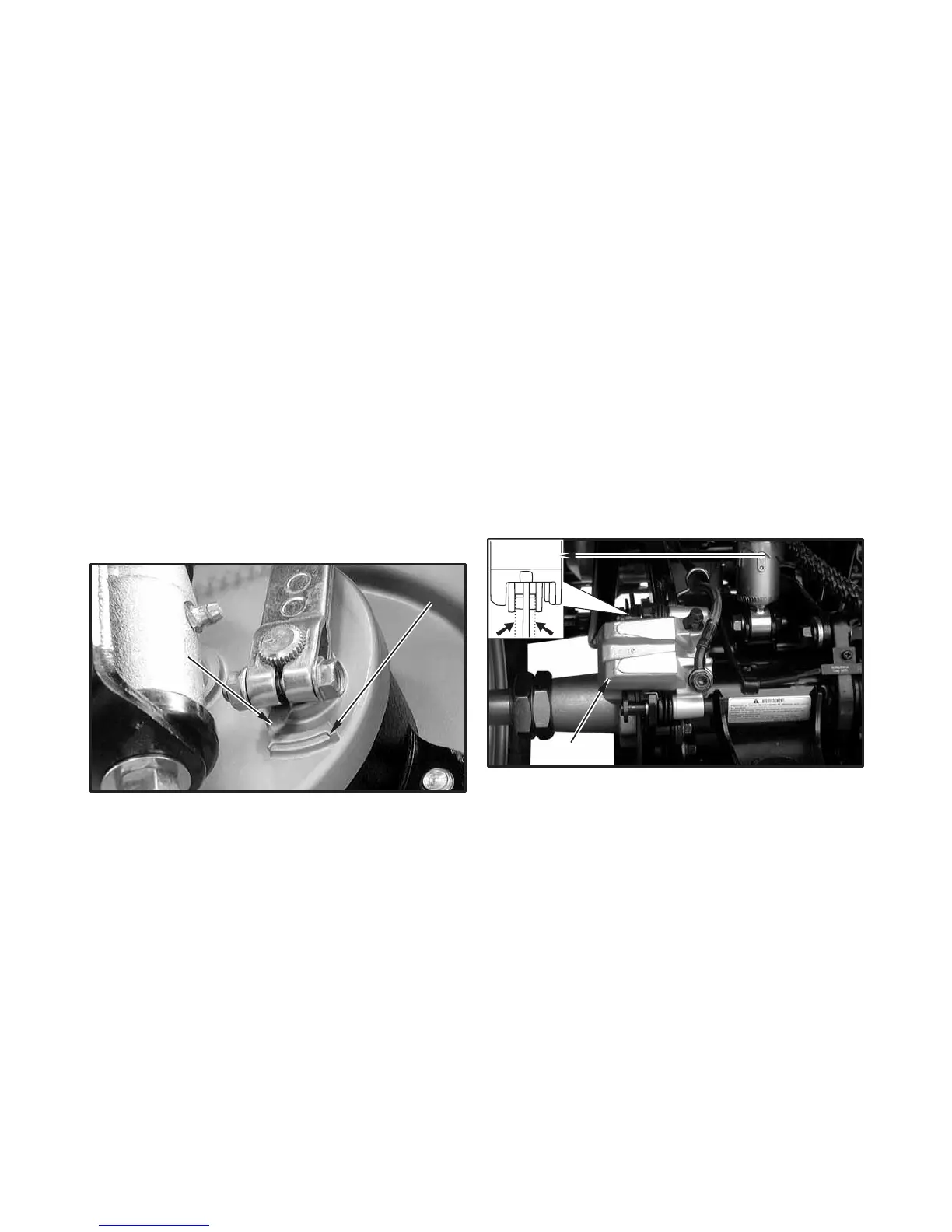

A wear indicator (1) is provided on each front
brake. The indicators allows checking of brake
shoe wear without disassembling the brake.
Apply the brake and check the position of the
indicator. If the indicator reaches the wear limit
line(2), ask a KYMCO dealer to replace the
shoes as a set.
BRAKE SHOES
(2)
(1)
(2)
(1)
(1) Wear indicator (2) Rear brake
REAR BRAKE PADS INSPECTION (MXU 150)
A wear indicator is provided on each brake. The
indicators allows checking of brake pads wear.
Check the position of the indicator. If the
indicator reaches the wear limit line, ask a
KYMCO dealer to replace the pads.
155
(1) Wear indicator (2) Wear limit
