7. CYLINDER HEAD/VALVES

7-9

PEOPLE S 4T

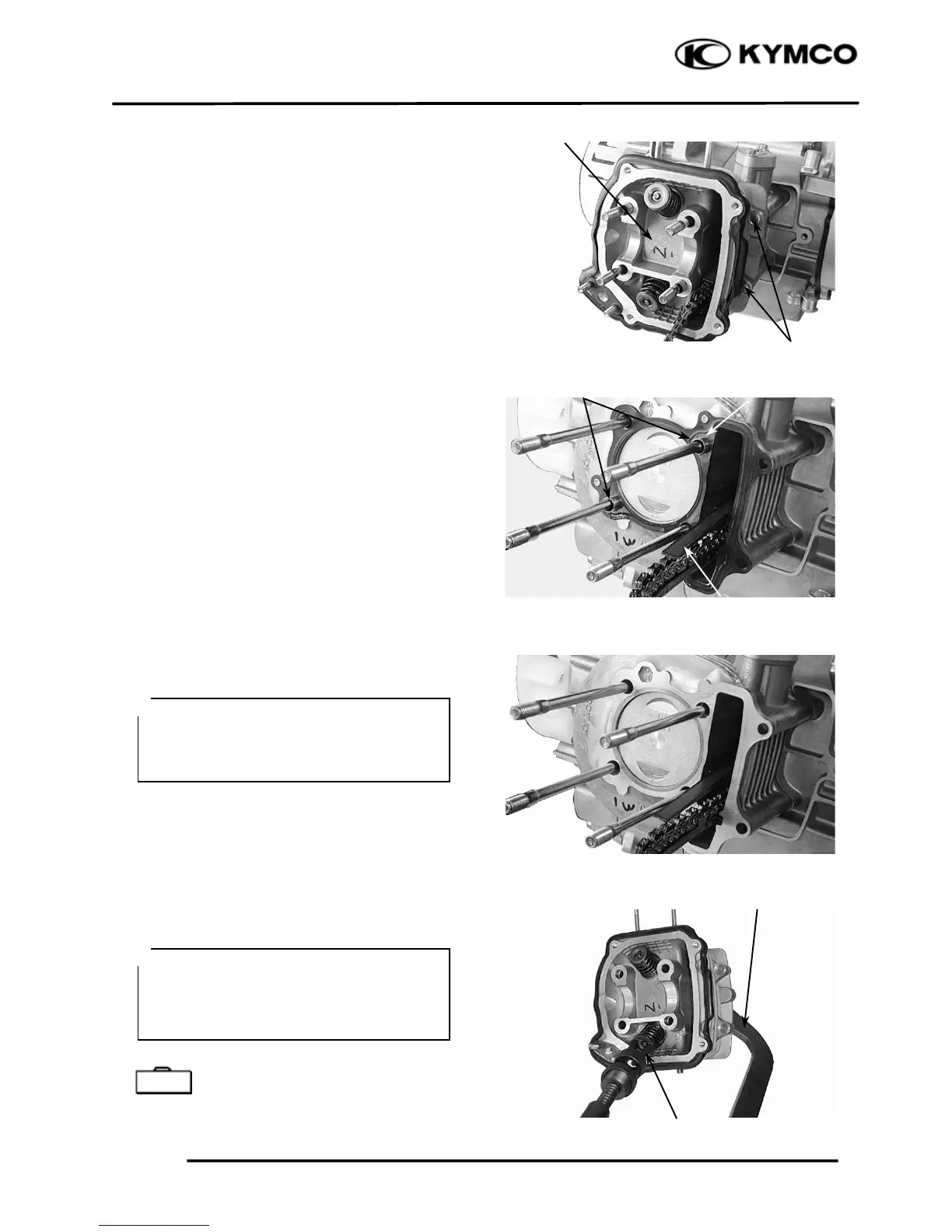

Remove the two cylinder head bolts.

Remove the cylinder head.

Remove the dowel pins and cylinder head

gasket.

Remove the cam chain guide.

Remove all gasket remnants from the

cylinder surface.

CYLINDER HEAD DISASSEMBLY

Remove the valve spring cotters, retainers,

springs, spring seats and valve stem seals

using a valve spring compressor.

Valve Spring Compressor

Valve Spring Compressor Attachment

Valve Spring Compresso

Cylinder Head

• Be sure to compress the valve springs

with a valve spring compressor.

• Mark all disassembled parts to ensure

correct reassemble.

＊

Dowel Pins

• Avoid damaging the cylinder contact

surface.

• Be careful not to drop any gasket

remnants into the engine.

＊

Cam Chain Guide

Cylinder Head Gasket

Special

Bolts

Valve Spring Compressor Attachment
