KYMCO SUPER 8 - Folding the Tiller down; Disengaging the Drive Unit from the Chassis

Folding the tille
r
down
13.3.4
Folding the tille
r
down

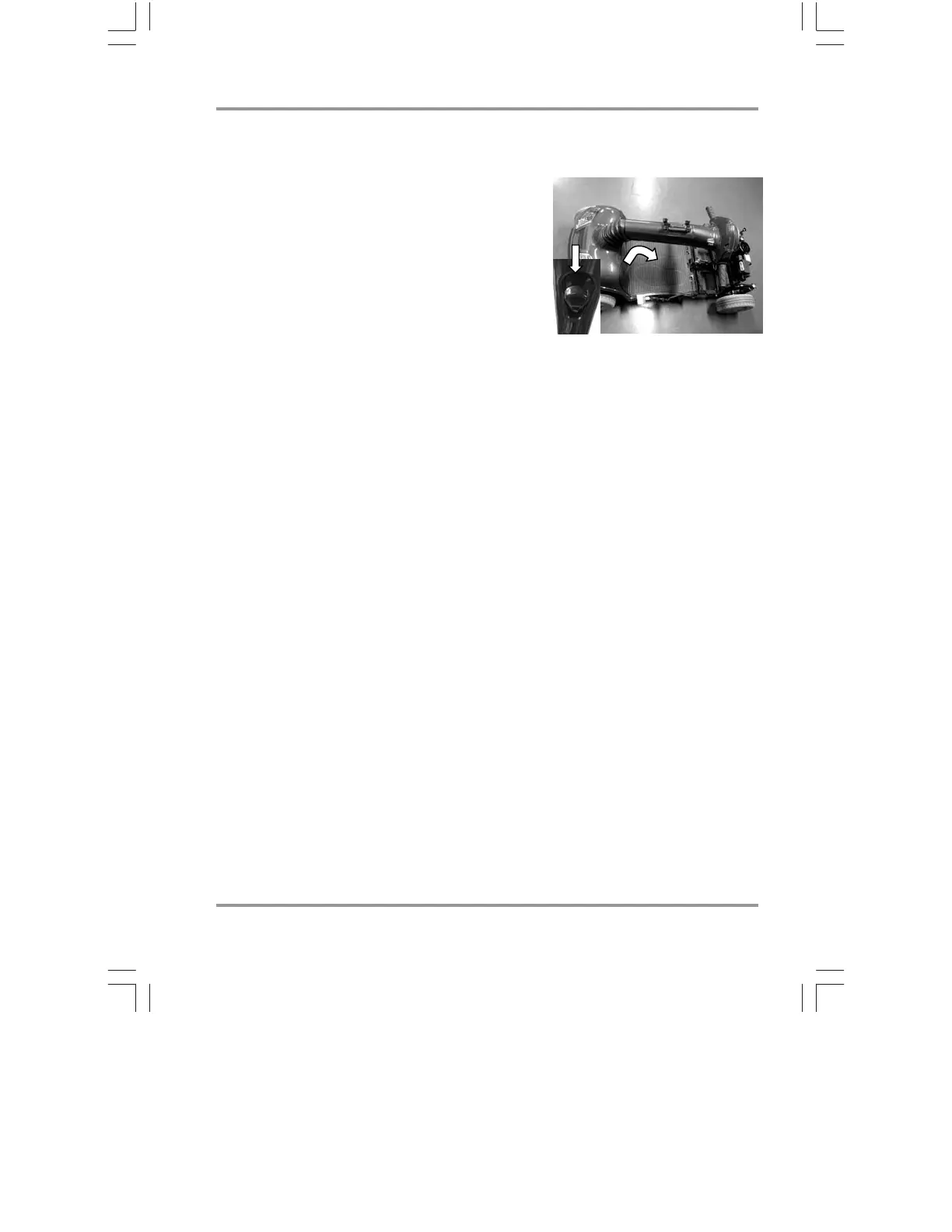

Pull the locking lever(1) and fold the
tiller to the rear (2) until it is horizontal.
48
13.3.5 Disengaging the drive unit from
the chassis
(a) Separate the front unit connecting
plug.
(b) Open the clamping bolt camping
lever and fold the claming bolt
upwards.
(c) The drive unit to the rear onto the
anti tip wheels.
(d) Remove the frames upwards from
the holding bolts on the drive unit.
13.3.6 Installing step in the reverse
order of removal.
T
ransport ing the scooter
(2)
(1)
