djusting the TOE-IN(2)
74

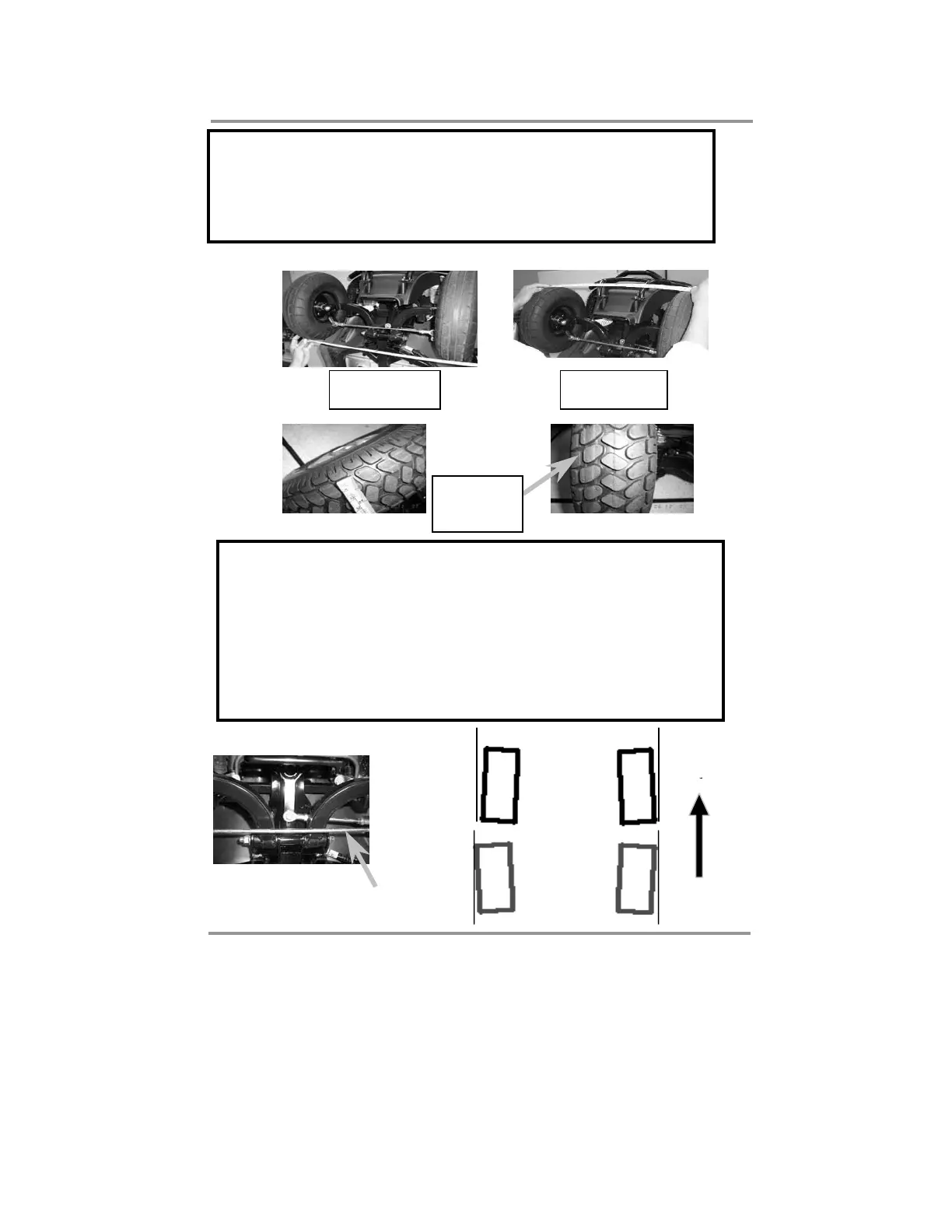

Step 2: Measure the tyre’s “toe-in”
Separately measure the figure between the upper and
lower side.
For Midi XL, should setting the standard point as picture.
Lower Upper
Standard
poin
t
Step 3: Adjusting the longer rod’s figure
- For tyre’s “toe-in”, the upper distance should be less
than the lower one.
Standard: Maxi 0~5 mm
Midi XL& Midi Super 4/8 0~4 mm
Mini & Micro 0~3 mm
To tighten the rod’s nuts after adjusting
Correct
Wrong
Forwar
