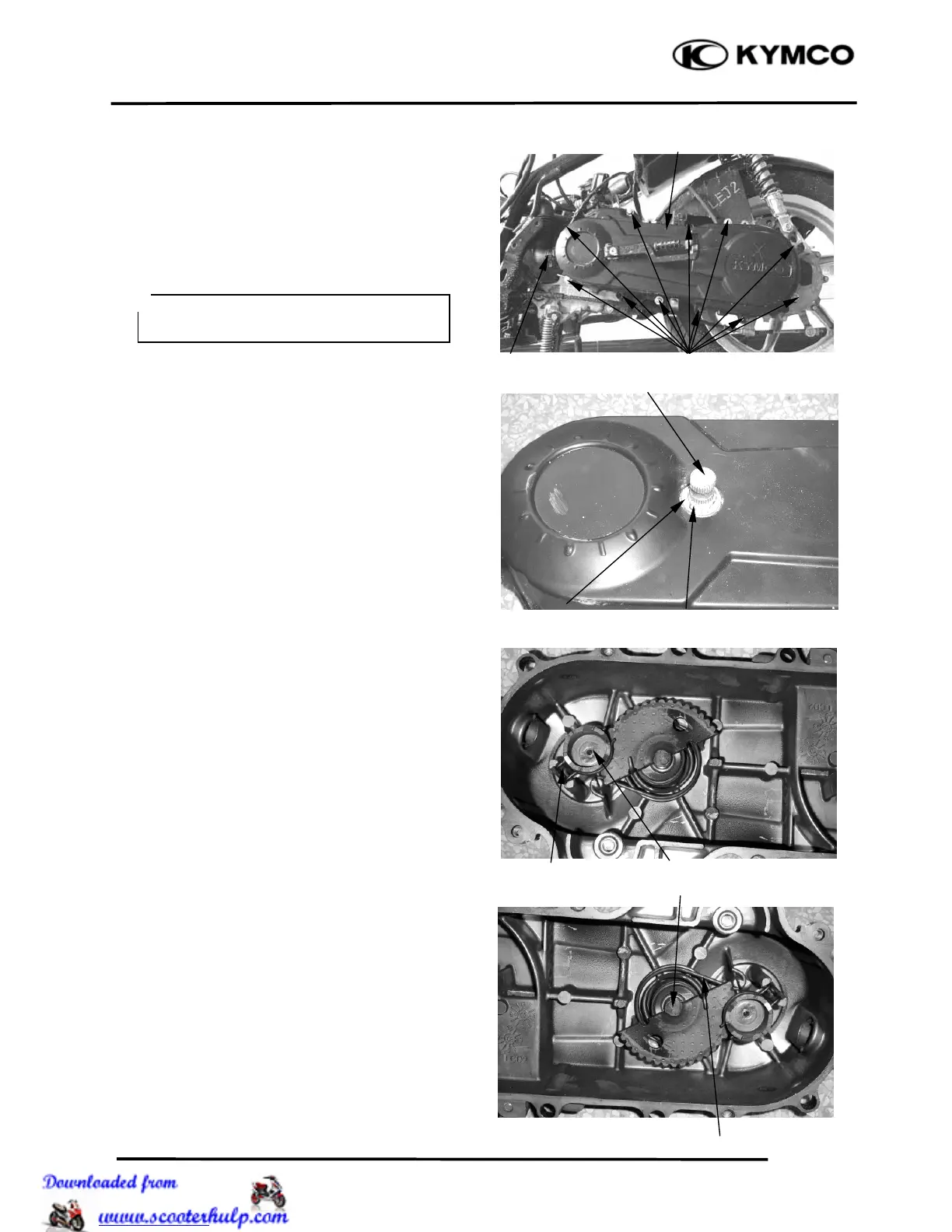

KYMCO SUPER8 50 - Left Crankcase Cover

9. DRIVE AND DRIVEN PULLEYS/
KICK STARTER
9-2
SUPER8 50
LEFT CRANKCASE COVER
REMOVAL
Loosen the drive belt air tube band screw.
Remove the eight left crankcase cover bolts
and left crankcase cover.
Remove the seal rubber and dowel pins.
Inspect the seal rubber for damage or
deterioration.
KICK STARTER
REMOVAL
Remove the kick lever from the kick starter
spindle.
Remove the circlip and washer from the kick
starter spindle.
Gently turn the kick starter spindle to remove
the starter driven gear together with the
friction spring.
Remove the kick starter spindle and return
spring from the left crankcase cover.
Remove the kick starter spindle bushings.
Return Spring
Kick Starter S
p
indle
Friction Spring
Kick Starter S
p
indle
Circlip
Starter Driven Gea
r
Washe
r
Use specified genuine parts for replace-
ment.
＊
Air Tube Band Bolts
Left Crankcase Cove
r
