3-82
Enhancement device setup procedure > Optional device installation
[CONFIDENTIAL]
102

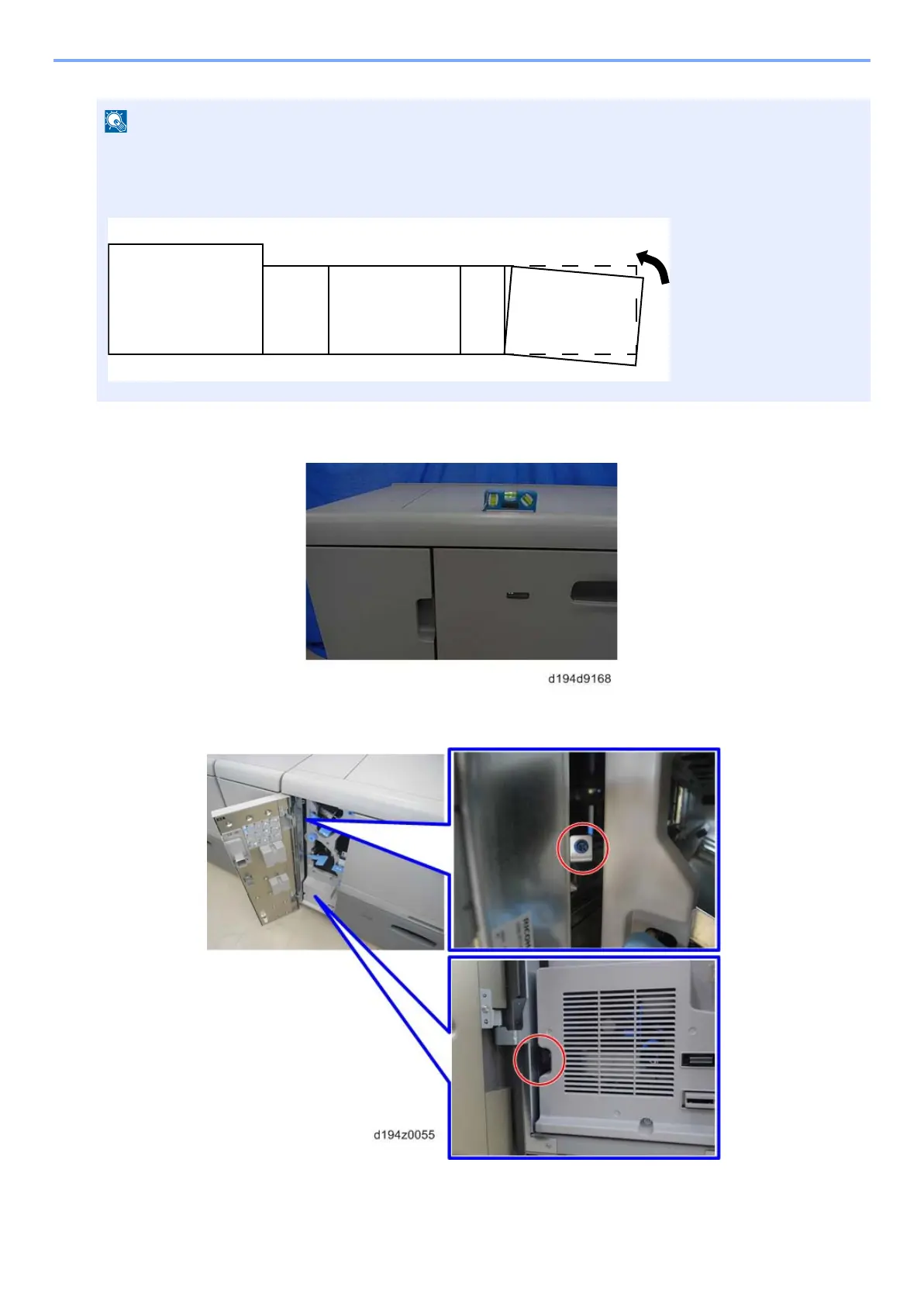

Place a level on the top of the paper feeder and then adjust the machine level and
height with leveling shoes.
103
Open the front door of the upstream paper feeder, and then fix the lock stay and joint
bracket (Screw x1 each).
• Install this unit on same line as main frame, otherwise it may cause of skew or paper jam.
• Check centering of paper and skew by U034. If there are any problems, adjust the installation position and fix
it.
Main Unit
AK
PF-9100
PF-9100
AK
