3-96
Enhancement device setup procedure > Optional device installation
[CONFIDENTIAL]
5

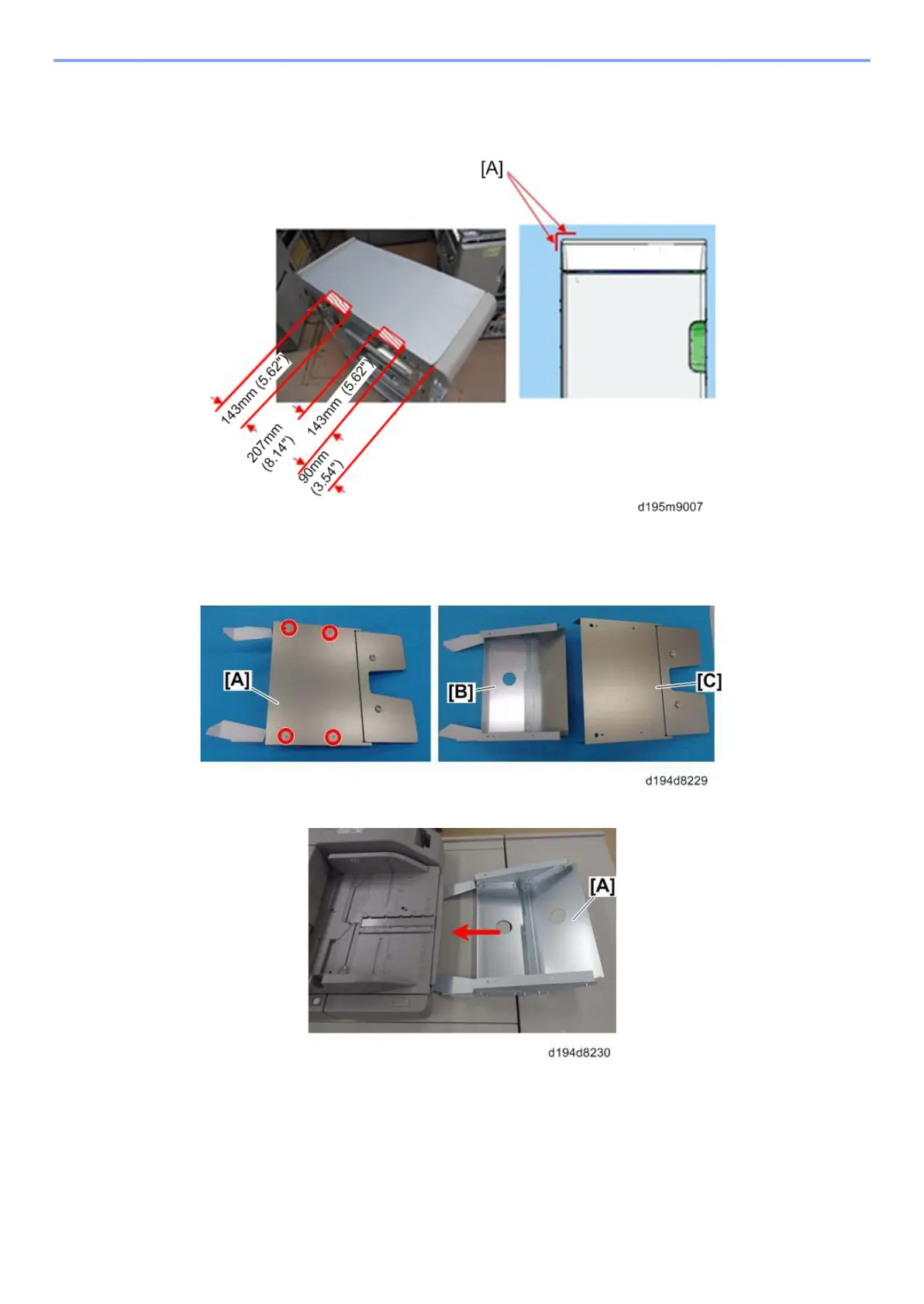

Attach the sheets to the bridge kit in landscape orientation, according to the banner
tray following dimensions. [A]: Attach each sheet with its center on the ridge line and
a width of approximately 7.5 mm on the vertical and horizontal sides.
Attaching the Multi Bypass banner tray to the Bypass Tray
6
Remove the screws from the banner tray [A] and then separate the base tray [B] and
cover [C] (screw x4). Screws are used in Step 10.
7
Insert the base tray [A] under the bypass tray.
To Next Page
