Enhancement device setup procedure > Optional device installation
[CONFIDENTIAL]
9

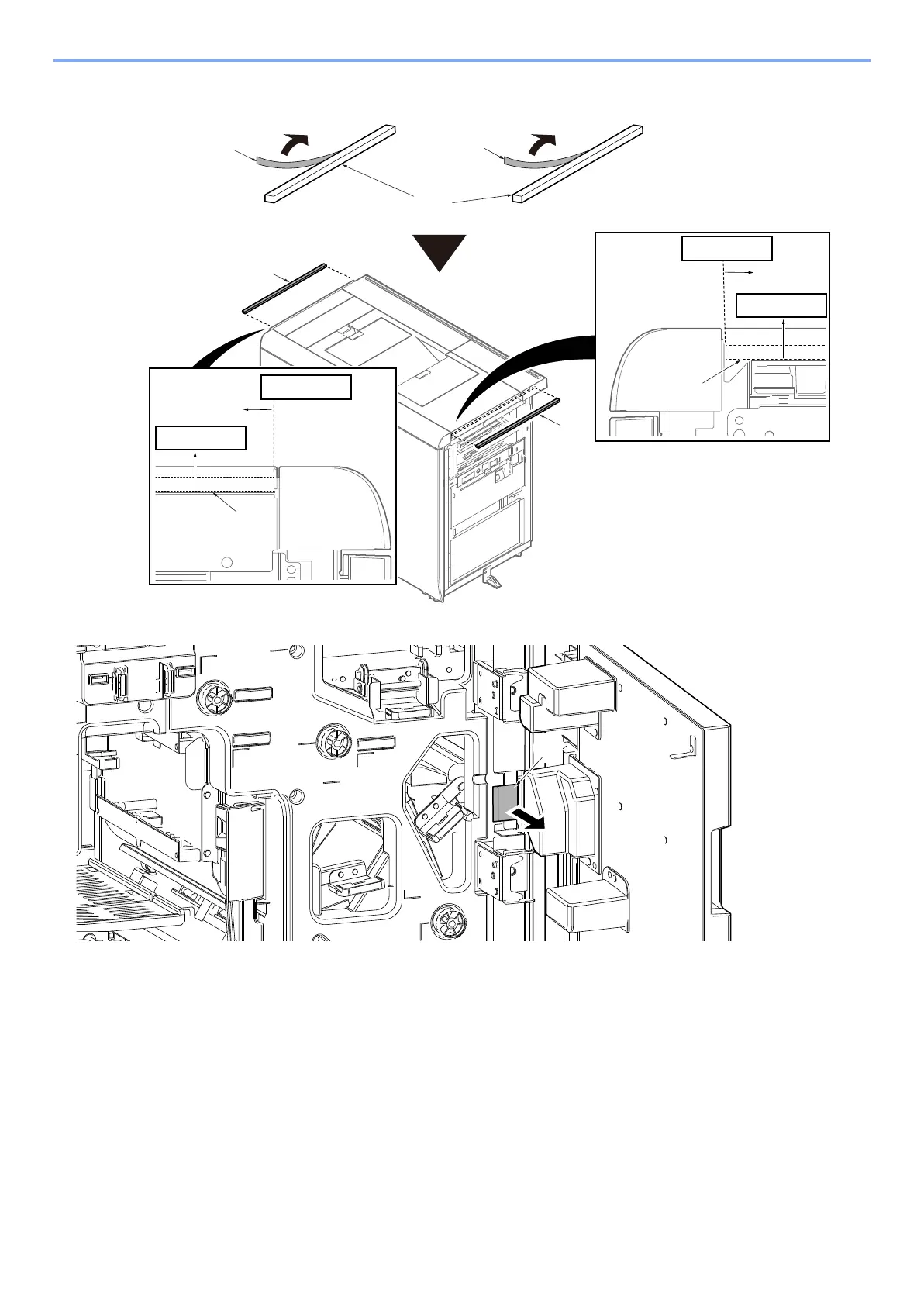

Peel off the release paper [B] on sponge [A] and install in on dashed line [C].
10
Open front right cover [A] of DE-9100 and pull lock lever [B].
0 to 5mm
[A]
[B]
[B]
0 to 5mm
[C]
[A]
[A]
0 to 5mm
[D]
0 to 5mm
[B]
