3-168
Enhancement device setup procedure > Optional device installation
[CONFIDENTIAL]
90

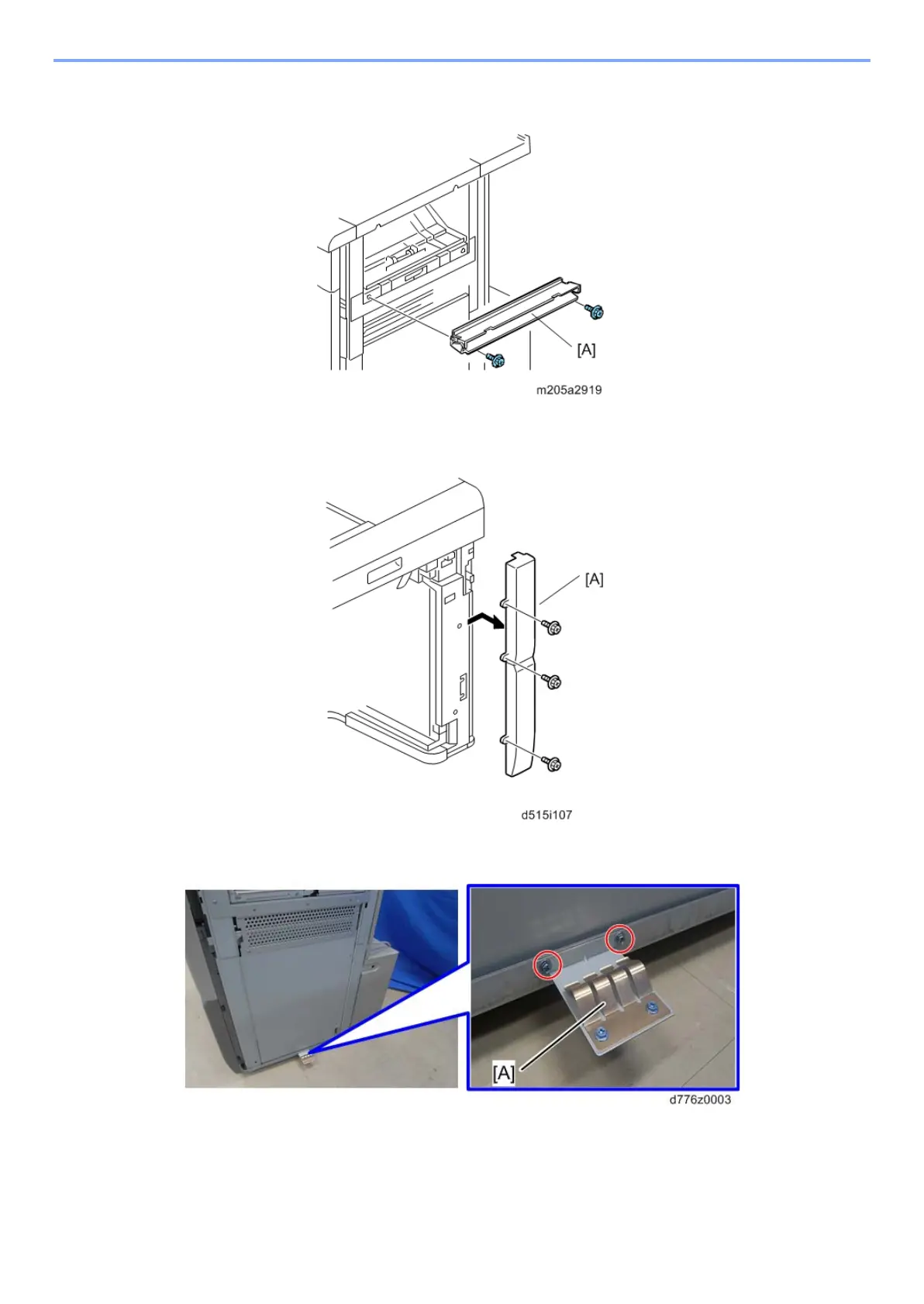

Install the entrance guide [A] on the right side of the high capacity stacker (screw x2:
M3x6).
91
Open the front door of the high capacity stacker.
92
Remove the front right cover [A] (screw x3).
93
Attach the ground plate [A] to the bottom right edge of the high capacity stacker
(screw x2: M4x6).
