Enhancement device setup procedure > Optional device installation
[CONFIDENTIAL]
155

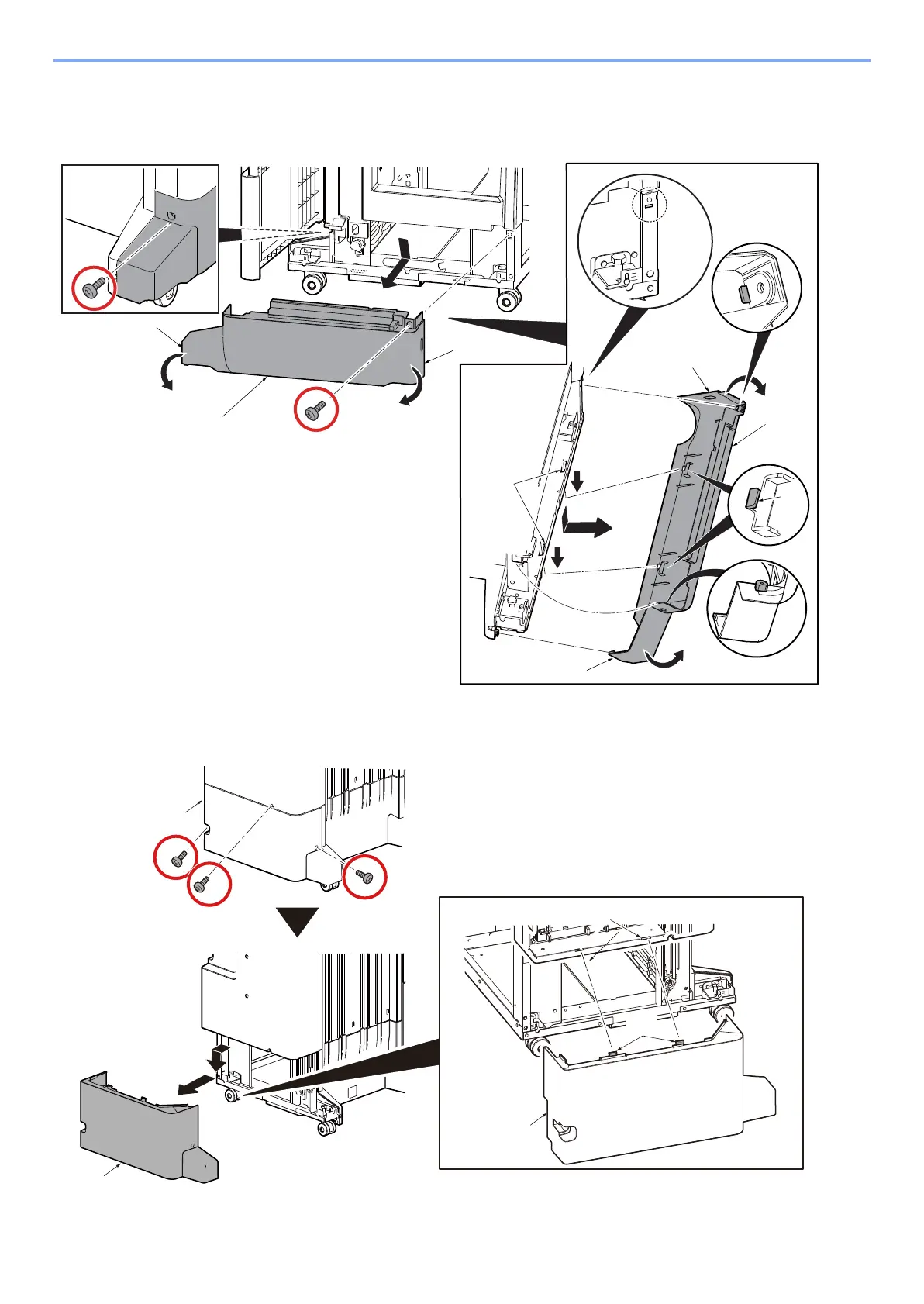

Bend both sides [B] of the food cover front [A] slightly and get 2 projections [C] out
from holes [D] by pushing down the cover [A] (Screw x2). The screw will use in step
160. Remove foot cover front [A].
156
Pull the foot cover rear [A] and get 2 projections [B] out from holes [C] (Screw x3).
The screw will use in step 159. Remove foot cover rear [A].
[B]
[B]
[A]
[B]
[D]
[B]
[C]
[A]
[A]
[A]
[A]
[C]
[B]
