Enhancement device setup procedure > Optional device installation
[CONFIDENTIAL]
15

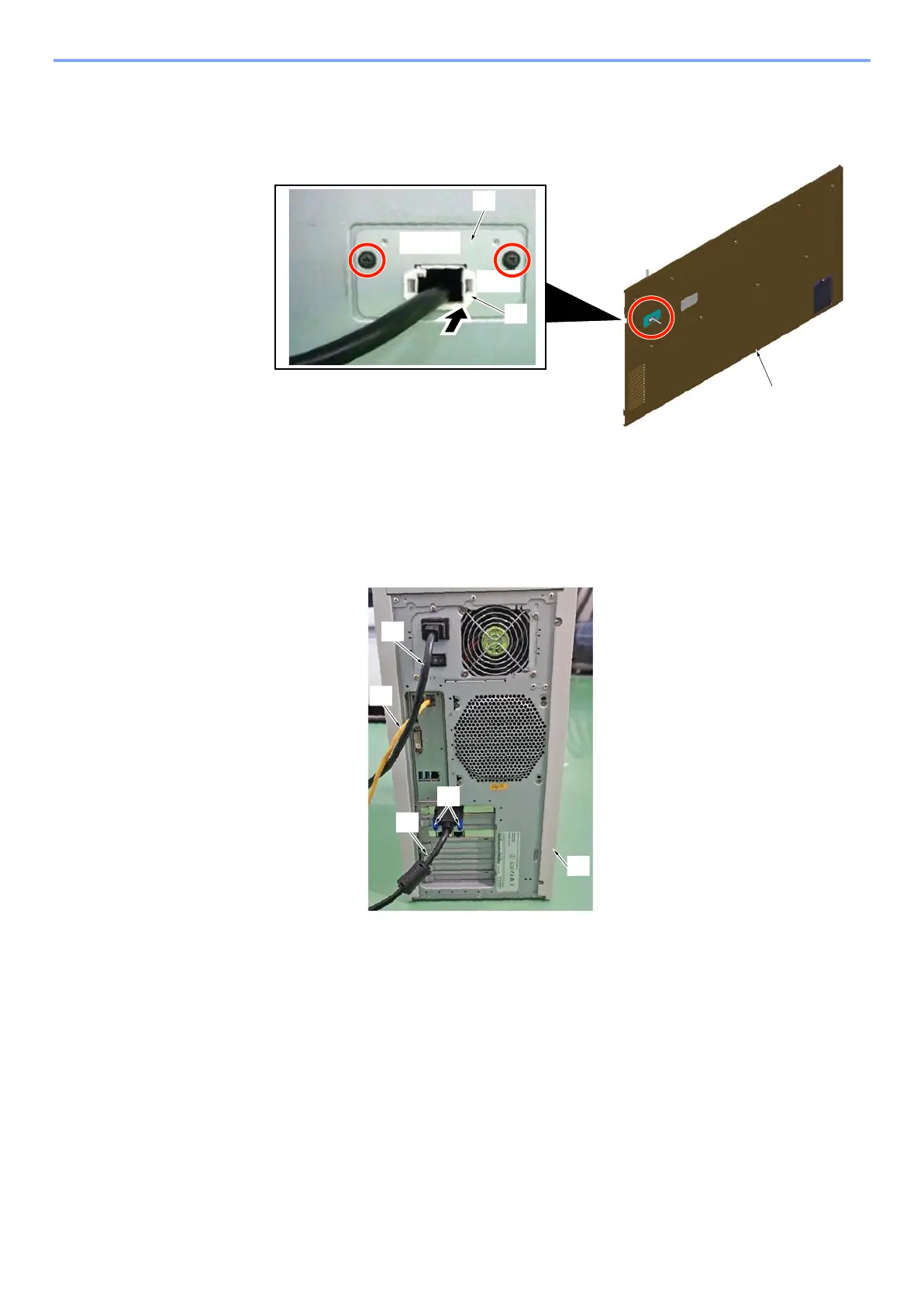

Attach Fiery plate [A] to the rear lower cover [B] (Screw x2). Fix ACCESS.EDGING [C]
to fiery plate [A] by pushing it. Screw was removed in step 3.
16
Secure the DVI cable [B] onto Printing System 50 [C] with 2 screws [A]. Connect LAN
cable [D] to Printing System 50 [C] and connect another side to network connector.
Connect the power cord [E] to Printing System 50 [C] and connect another end to a
power outlet.
