Troubleshooting > Regular Maintenance

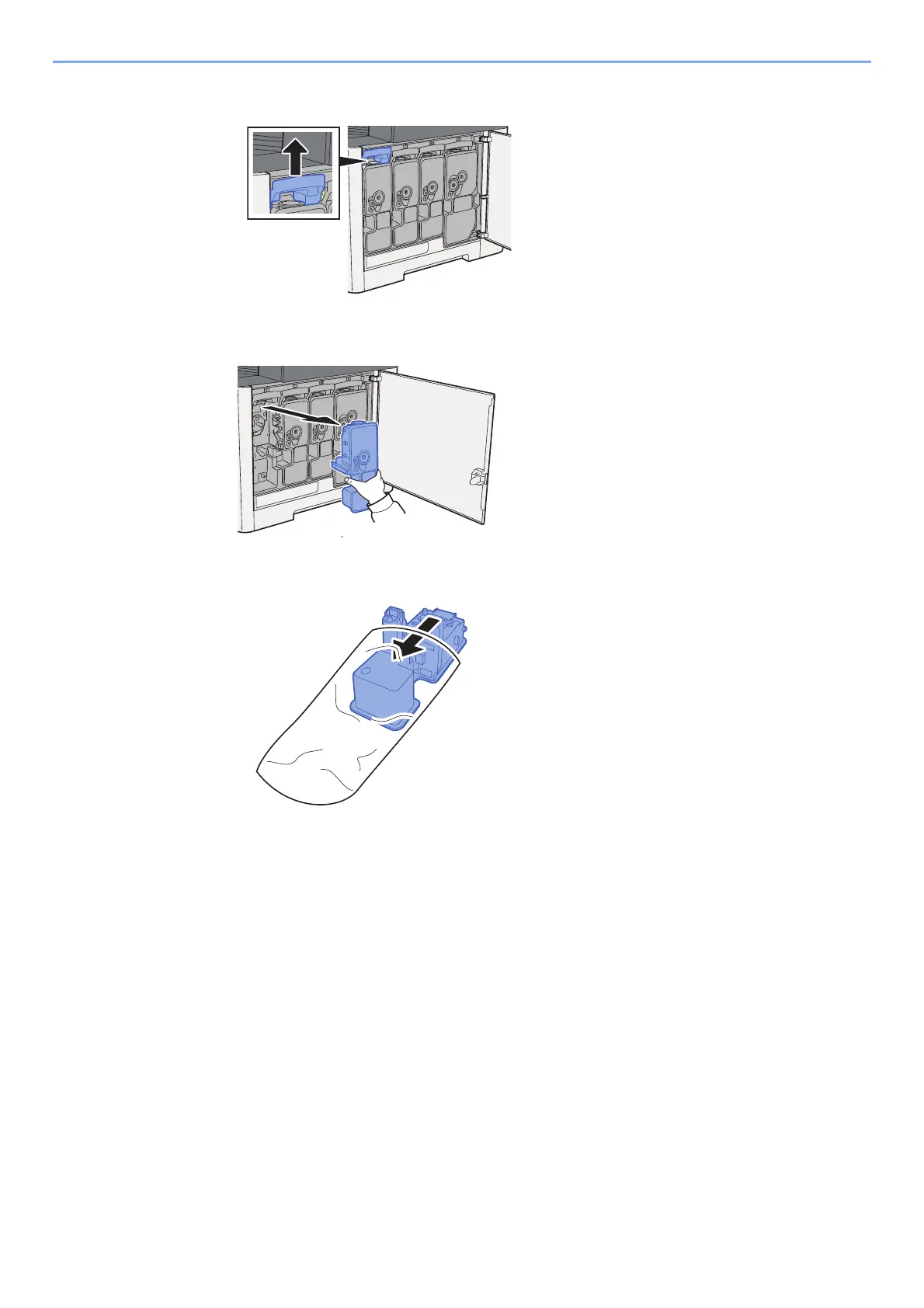

Unlock the toner container.

Remove the toner container.

Put used toner containers into the plastic waste bag.
