Troubleshooting > Clearing Paper Jams

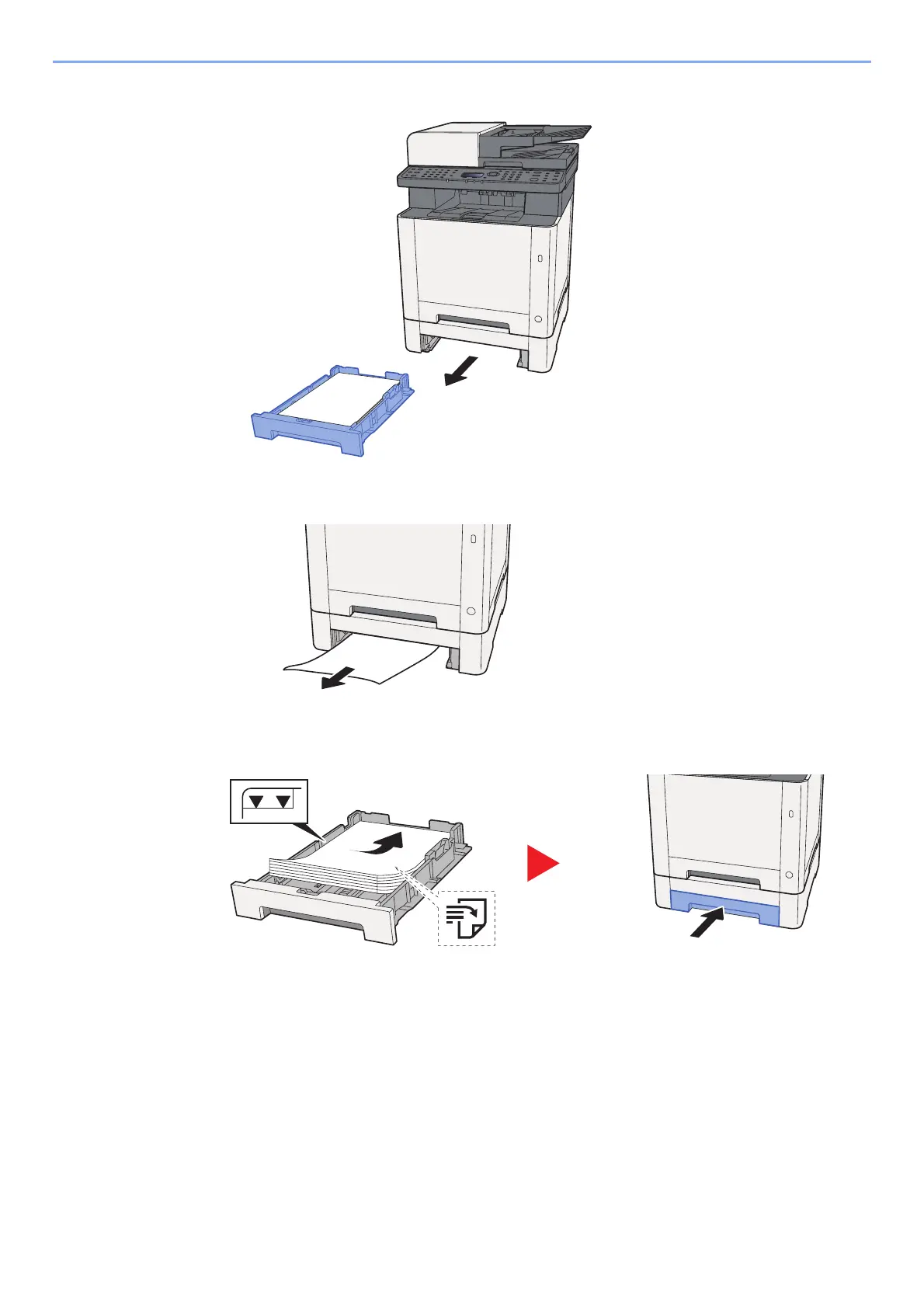

Pull Cassette 2 out toward you until it stops.

Remove any jammed paper.

Push Cassette 2 back in.
