Kyocera ECOSYS P2040dw Service Manual

2RV/2RW/2RX/2RY/3RA
3-30
(5) Conveying/Transfer and Separation section
Conveying section conveys paper to the transfer and separation section after adjusting the paper position at
the registration rollers.
The transfer and separation section consists of the transfer roller and separation needles attached to the
paper conveying unit. The DC bias is impressed to the transfer roller by the high-voltage PWB (HVPWB), and
the toner image formed on the drum is transferred to the paper by the potential gap. Then,, the paper is sep-
arated by the drum curvature separation. and discharged by the grounded separation brush *1
*1: 100V model applies DC voltage.
Components parts
1. registration roller
2. Registration pulley
3. Actuator
(Registration sensor)
4. Transfer front guide
5. Transfer roller
6. Separation brush
7. Conveying guide
8. Drum

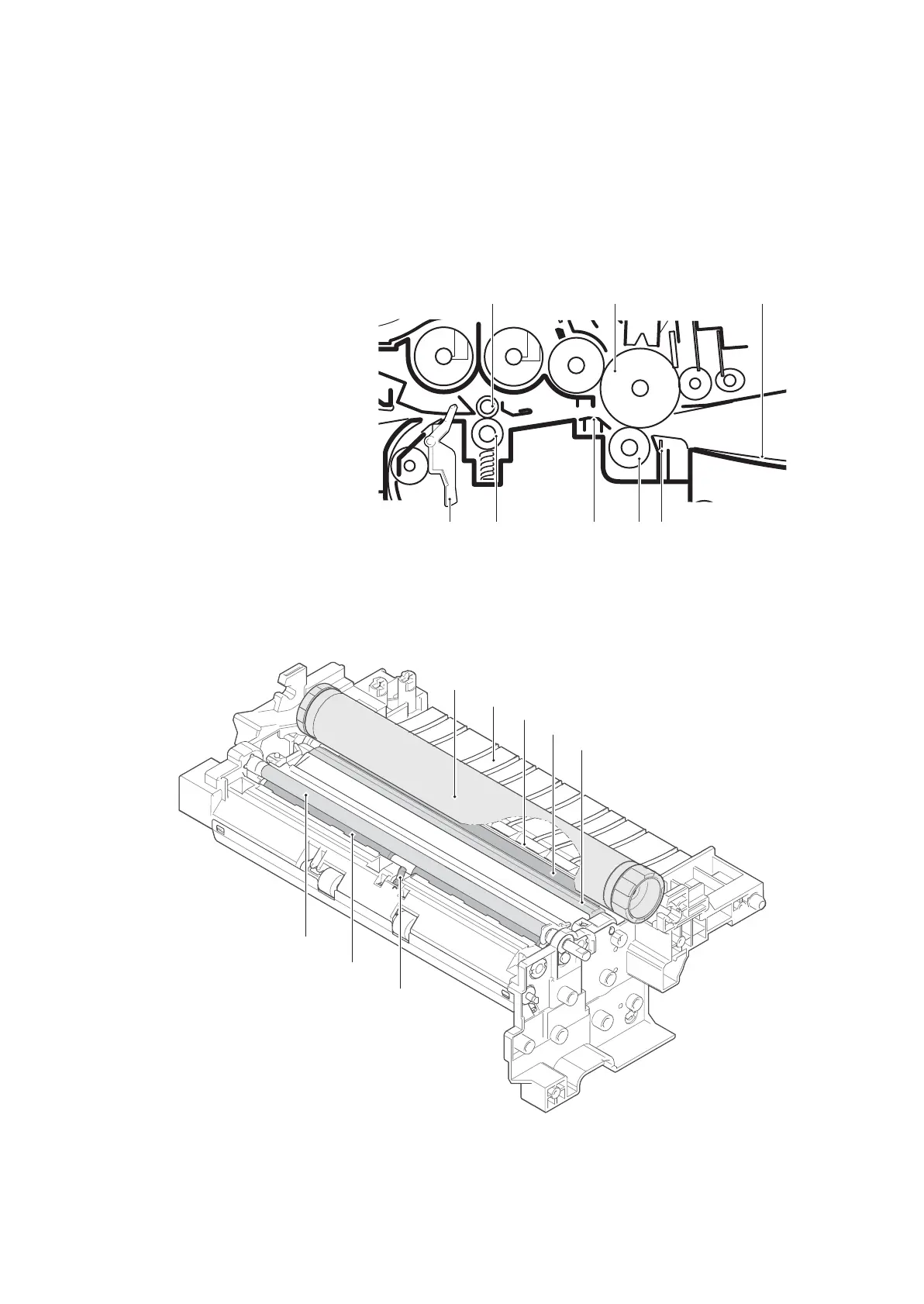

Figure 3-31
Figure 3-32
1 7
23 4 5 6
8
5
4
3
6
7
1
2
8

Kyocera ECOSYS P2040dw Specifications

General

Processor family	ARM Cortex
Built-in processor	Yes
Compatible memory cards	SD, SDHC
Sound pressure level (printing)	48.8 dB
Sound pressure level (quiet mode)	45.5 dB
Color	No
Print technology	Laser
Duplex printing mode	Auto
Time to first page (black, normal)	6.4 s
Print speed (black, normal quality, A4/US Letter)	40 ppm
Duplex print speed (black, normal quality, A4/US Letter)	20 ppm
Printing colors	Black
Maximum duty cycle	50000 pages per month
Recommended duty cycle	2000 - 3000 pages per month
Replacement cartridges	TK-1160 (7.200 pagina's)
Number of print cartridges	1
Page description languages	Epson LQ, IBM ProPrinter, PCL 5e, PCL 6, PCL XL, PDF 1.7, PostScript 3, XPS
Display	LCD
Certification	TÜV-GS, CE
Product color	Black, White
Market positioning	Home & office
Display number of lines	2 lines
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Power consumption (ready)	8 W
Power consumption (printing)	620 W
Power consumption (PowerSave)	0.8 W
Energy Star Typical Electricity Consumption (TEC)	1.6 kWh/week
Total input capacity	250 sheets
Maximum input capacity	850 sheets
Maximum number of input trays	3
Multi-Purpose tray input capacity	100 sheets
Custom media width	70 - 216 mm
Maximum print size	216 x 356 mm
Custom media length	148 - 356 mm
Paper tray media types	Plain paper
Paper tray media weight	60 - 163 g/m²
Non-ISO print media sizes	Legal (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 220 g/m²
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100/1000Base-T(X)
Security algorithms	802.1x RADIUS, HTTPS, IPPS, IPSEC, SNMP
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Mobile printing technologies	Apple AirPrint, Google Cloud Print, Kyocera Mobile Print, Mopria Print Service
Standard interfaces	Ethernet, USB 2.0, Wireless LAN
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Sustainability certificates	Blue Angel, ENERGY STAR
Package depth	516 mm
Package width	500 mm
Package height	400 mm
Package weight	18000 g
Cables included	AC
Included cartridge capacity (black)	3600 pages
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	393 mm
Width	375 mm
Height	272 mm
