Kyocera ECOSYS P2135d - Detaching and Refitting the Eraser Lamp

2PG/2PH
1-5-32
(3) Detaching and refitting the eraser lamp
Procedure
1. Remove the laser scanner unit (See page 1-
5-30).
2. Remove the connector.
3. Remove the eraser lamp.
4. Check or replace the eraser lamp and refit
all the removed parts.

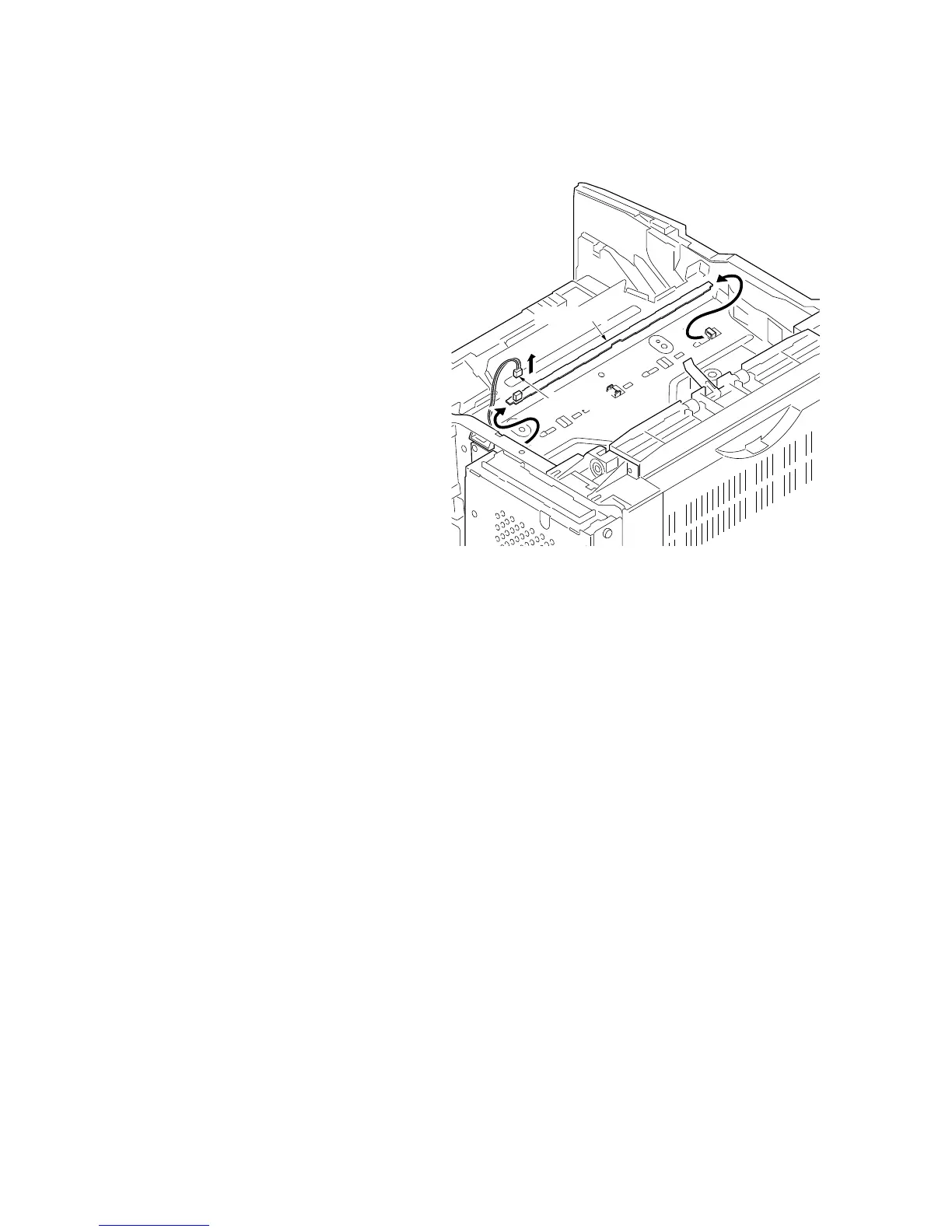

Figure 1-5-44
Eraser lamp
Connector
