Kyocera ECOSYS P3055dn

To Next Page

To Previous Page

2T6/2T7/2T8/2T9

1-5-11

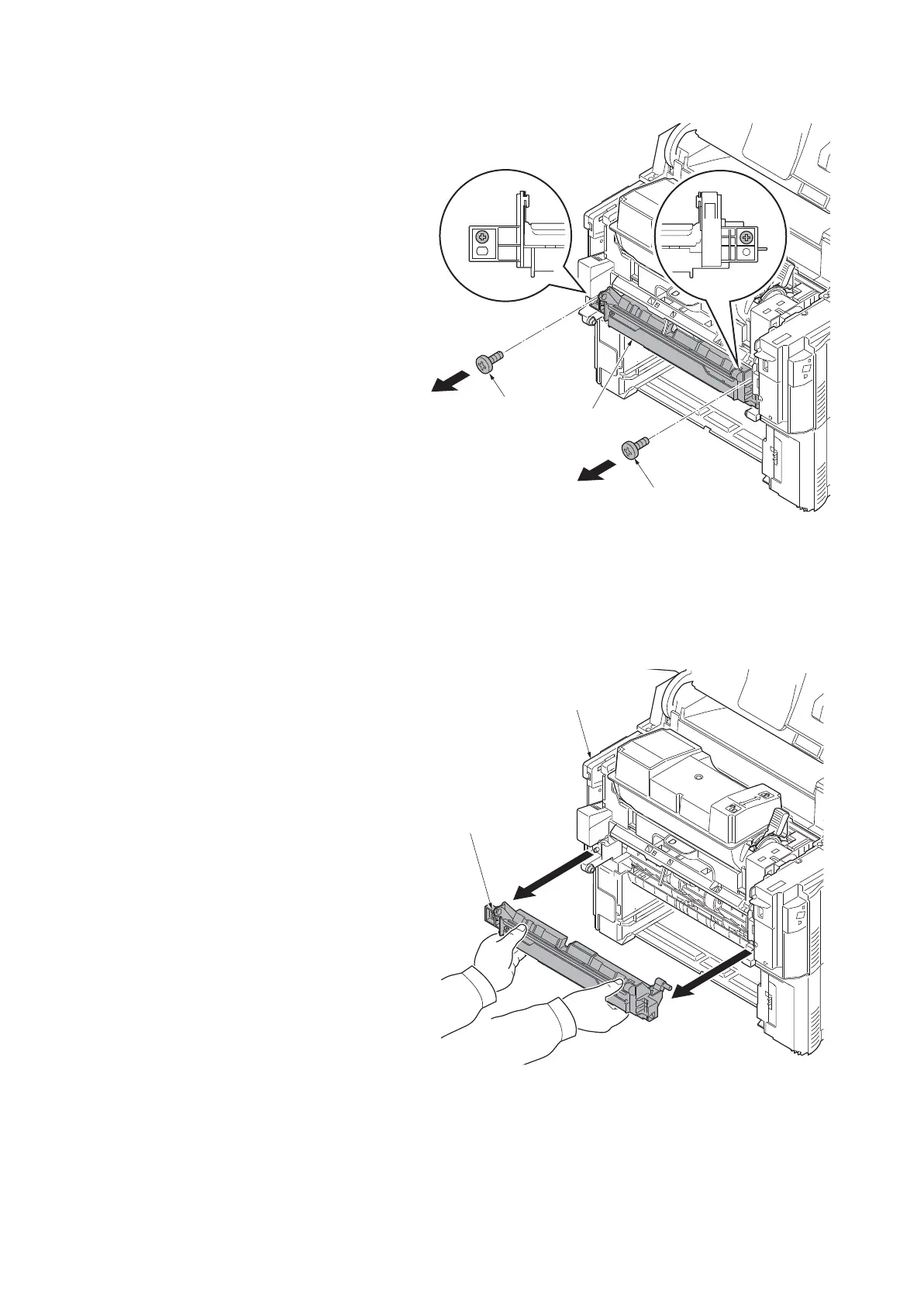

7. Remove two screws on the MP paper

feed unit.

Figure 1-5-17

8. Remove the MP paper feed unit from

the printer.

Figure 1-5-18

MP paper feed unit

Screw

MP paper feed unit

Printer
