Using the Operation Panel 6-33
Entering the Width and Length

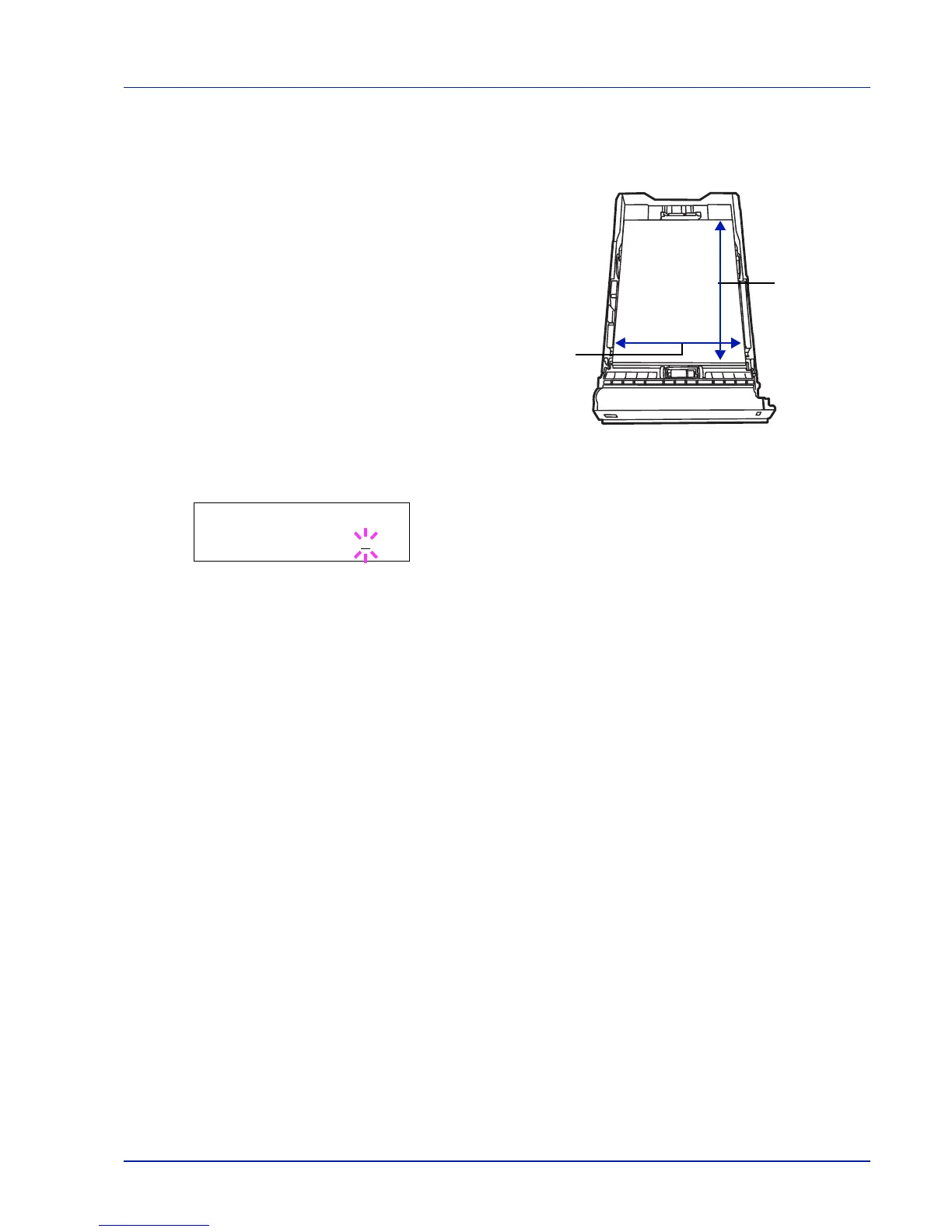

Enter the paper size for X Dimension and Y Dimension as shown in
the figure.
1 When the unit of measurement is set, press .
>>X Dimension appears (the paper width setting).
2 Press [OK]. A blinking cursor (_) appears.
3 Press  or  to increase or decrease the value of the figure where
the cursor is blinking and display the desired width.
Acceptable paper widths are as follows:
• Cassette : 105 to 216 mm (4.13 to 8.5 inches)
• Paper Feeder PF-500/PF-510 (optional) : 92 to 216 mm (3.62 to
8.5 inches)
4 Display the paper width and press [OK].
5 When the width is set, press . >>Y Dimension appears (the paper
length setting). Set the desired length in the same way as the width.
Acceptable paper lengths are as follows:
• Cassette : 148 to 356 mm (5.83 to 14.02 inches)
• Paper Feeder PF-500/PF-510 (optional) : 162 to 356 mm (6.38 to
14.02 inches)
6 Display the paper length, press [OK].
7 Press [MENU]. The display returns to Ready.
Cassette (1 to 4) Type (Setting the cassette paper type)
By setting a paper type (plain, recycled, etc.) for the paper cassette, you
can automatically select the paper in the paper cassette according to the
paper type you command on the printer driver. The default setting is plain
paper for all paper cassettes.
If the PF-500 or PF-510 optional paper feeder is installed, use the same
procedure to setting the cassette paper type.
For more information about paper types that you can feed from the paper
cassette, refer to Paper Specifications on page 2-2.
1 Press  while Paper Settings > is displayed.
2 Press  or  repeatedly until >Cassette Type appears.
X Dimension
Y Dimension
105 to 216 mm
(4.13 to 8.5 inches)
148 to 356 mm
(5.83 to 14.02 inches)
>>X Dimension
216
mm

Kyocera ECOSYS P6030cdn Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	600 x 600 DPI
Duplex printing mode	Auto
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	30 ppm
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	100000 pages per month
Number of print cartridges	4
Page description languages	Microsoft XPS, PCL 5c, PCL 6, PCL XL, PDF 1.7, PostScript 3
Paper input type	Cassette, Paper tray
Total input capacity	650 sheets
Total output capacity	- sheets
Maximum input capacity	2150 sheets
Total number of input trays	2
Maximum number of input trays	5
Multi-Purpose tray input capacity	150 sheets
Custom media width	70 - 216 mm
Maximum print size	216 x 356 mm
Custom media length	138 - 356 mm
Paper tray media types	Plain paper
Paper tray media weight	60 - 120 g/m²
Non-ISO print media sizes	Folio (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 220 g/m²
Wi-Fi	No
Mobile printing technologies	-
Standard interfaces	Ethernet, USB 2.0
Optional connectivity	Wireless LAN
Processor model	465S
Processor family	PowerPC
Maximum internal memory	1536 MB
Sound power level (standby)	34.4 dB
Sound pressure level (printing)	52.5 dB
Display	LCD
Certification	TÜV/GS, CE
Product color	Black, White
Display number of lines	2 lines
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0 W
Power consumption (standby)	76 W
Power consumption (printing)	529 W
Power consumption (PowerSave)	4 W
Mac operating systems supported	Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Sustainability certificates	Blue Angel, ENERGY STAR

Weight and Dimensions

Depth	518 mm
Width	345 mm
Height	480 mm
