(3) Detaching and refitting the upper registration and lower roller
Procedure
1. Remove the developing unit.
(See page 1-5-25)
2. Remove the spring.
3. Pull the upper registration roller.

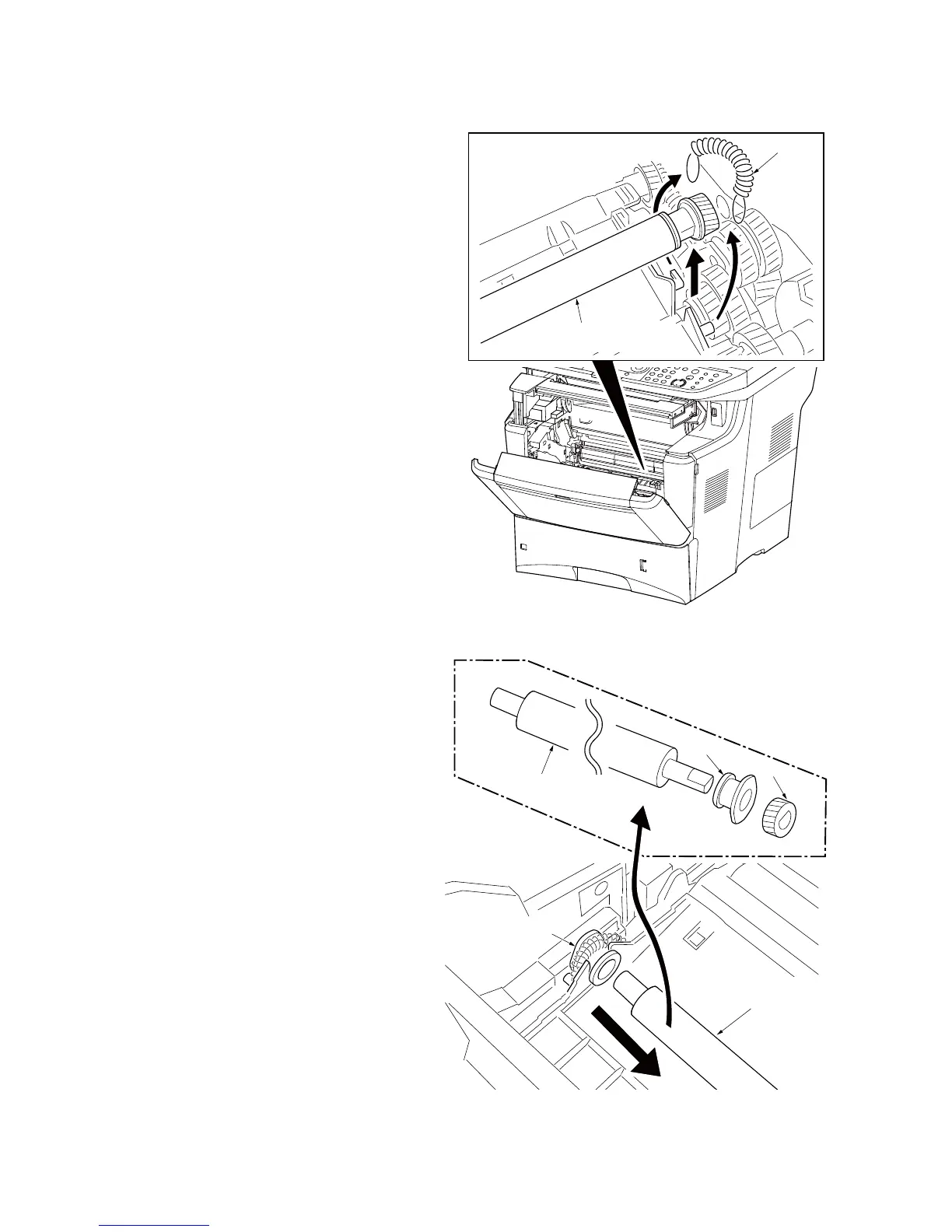

Figure 1-5-10
4. Remove the upper registration roller
from the bush.
5. Remove the gear and bush from the
upper registration roller.
Figure 1-5-11
Spring
Upper registration roller
Upper registration roller
Gear
Bush
Bush
Upper registration roller
