2FZ/2F0/2HC-3
1-5-25

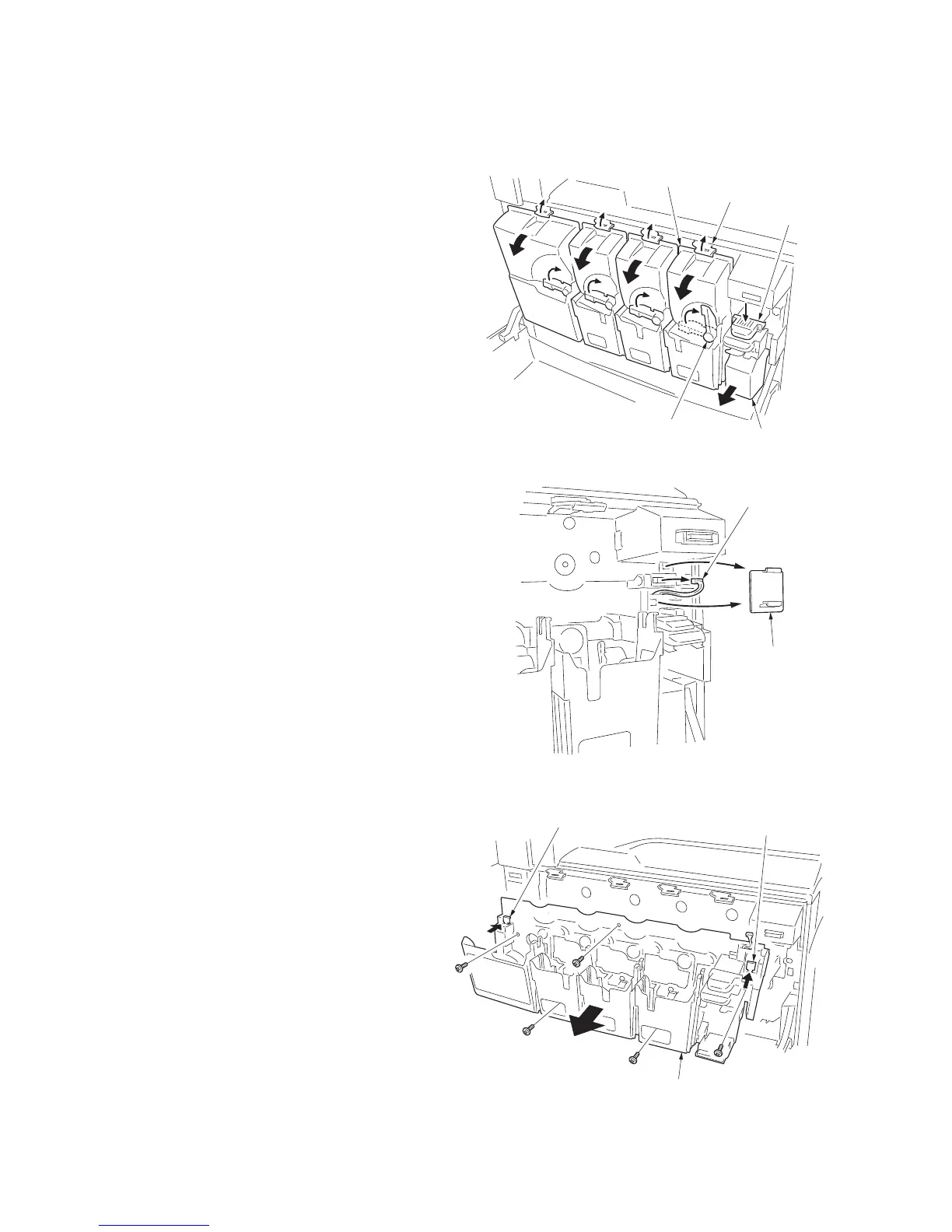

1-5-4 Image formation section
(1) Detaching and refitting the image formation holder
Procedure
1. Open the front cover.
2. Turn the toner container lock lever for the
toner container clockwise to release the
lock.
3. Lift the clip to open the toner container.
4. Remove four toner containers.
5. Hold down release lever and slowly pull out
the waste toner box.
Figure 1-5-52
6. Remove the connector cover and remove
one connector.
Figure 1-5-53
7. Remove five screws and push the left and
right levers into the inner part, and then
remove the image formation holder.
Figure 1-5-54
Clip
Release leve
Toner container
Lock lever
Waste toner box
Connector cove
Connector
Image formation holder
Lever
Lever
To Next Page
