Kyocera PF-320 - Detaching and Refitting the Operation PWB

2T6/2T7/2T8/2T9
1-5-28
(6) Detaching and refitting the operation PWB
Procedure
1. Open the top cover.
2. Remove the JAM processing procedure
sheet.
3. Remove three screws.

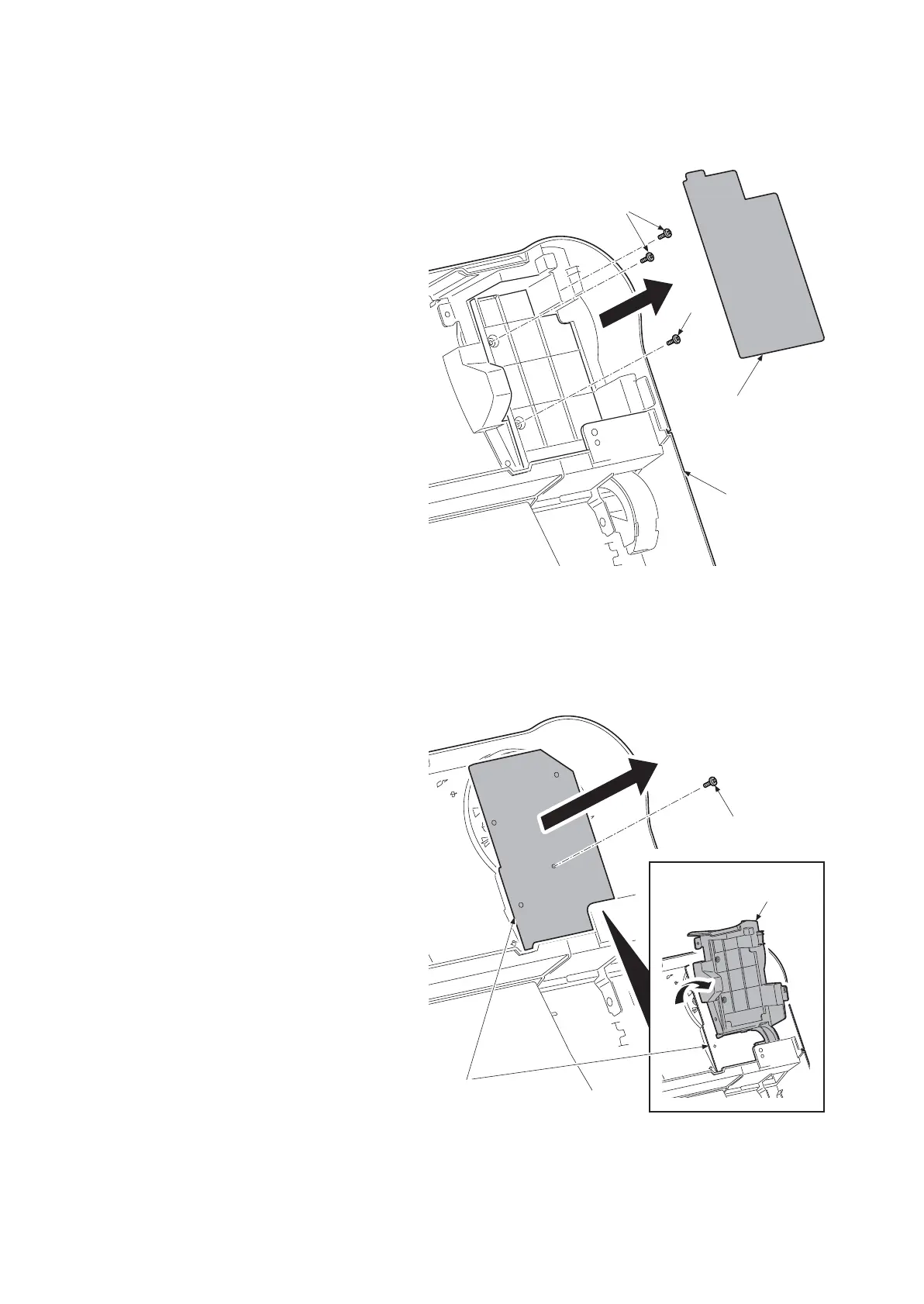

Figure 1-5-45
4. Rotate the operation PWB cover.
5. Remove the screw and then remove the
operation PWB.
6. Check or replace the operation PWB
and refit all the removed parts.
Figure 1-5-46
JAM processing
procedure sheet
Screws
Screw
Top cover
Operation panel PWB
Operation panel
PWB cover
Screw
