Enhancement device setup procedure > Unpacking enhancement device
[CONFIDENTIAL]
4

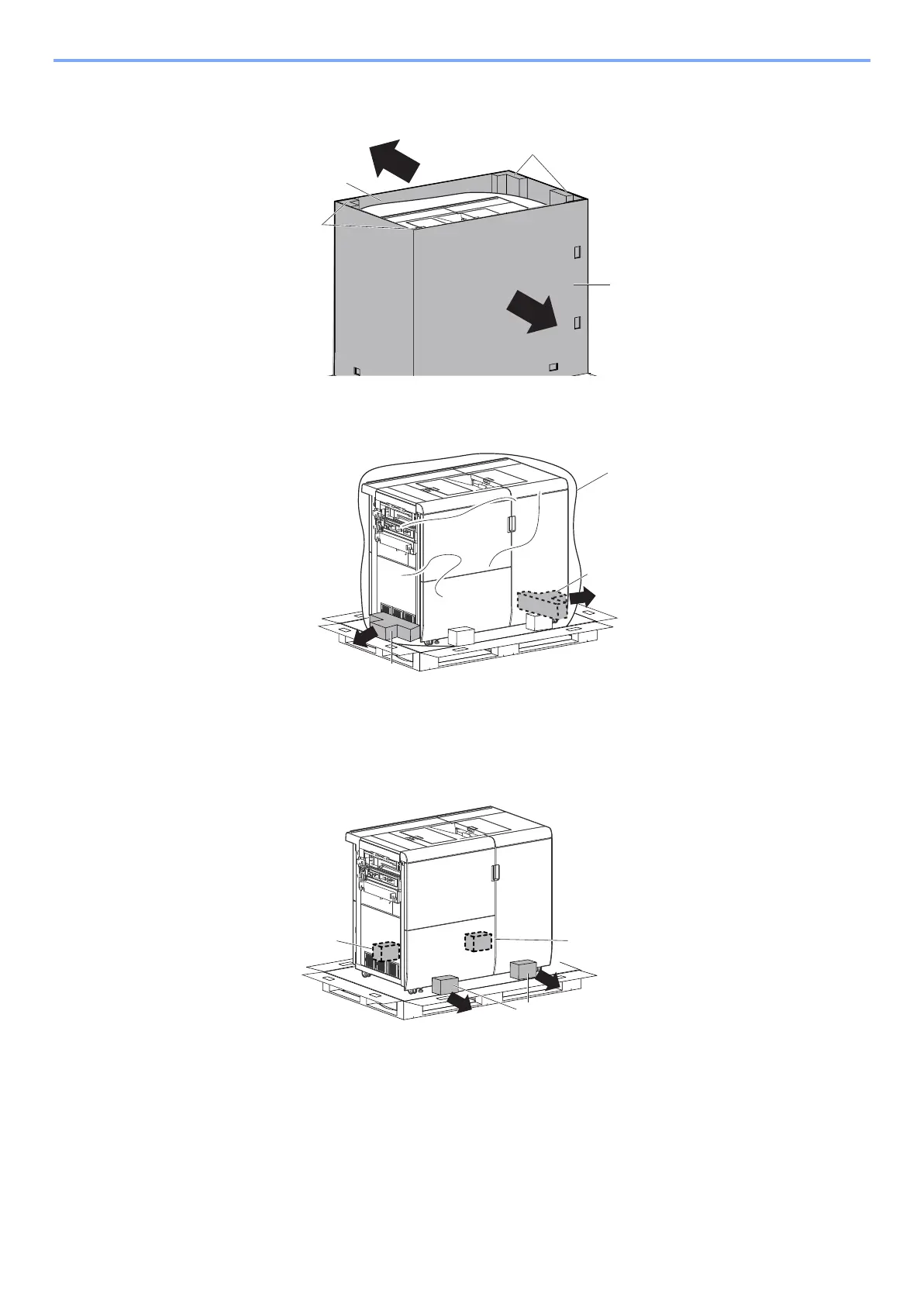

Remove 4 hinges and take outer case [A], [B] and side pad [C].
5
Remove DE-9100 cover [A]. Lift up the left and the right of DE-9100 in order and
detach the bottom pad [B] each.
6
Lift up the front and the back of DE-9100 in order and detach two bottom pads [A]
each.
• When working, support the machine not to fall down and be careful not to pinch the hands or feet.
