(3) Output enhancement
(3-1) Output (3-1)
<E> Main Unit and Decurler Unit (DE-9100)
Preparation for main unit
1

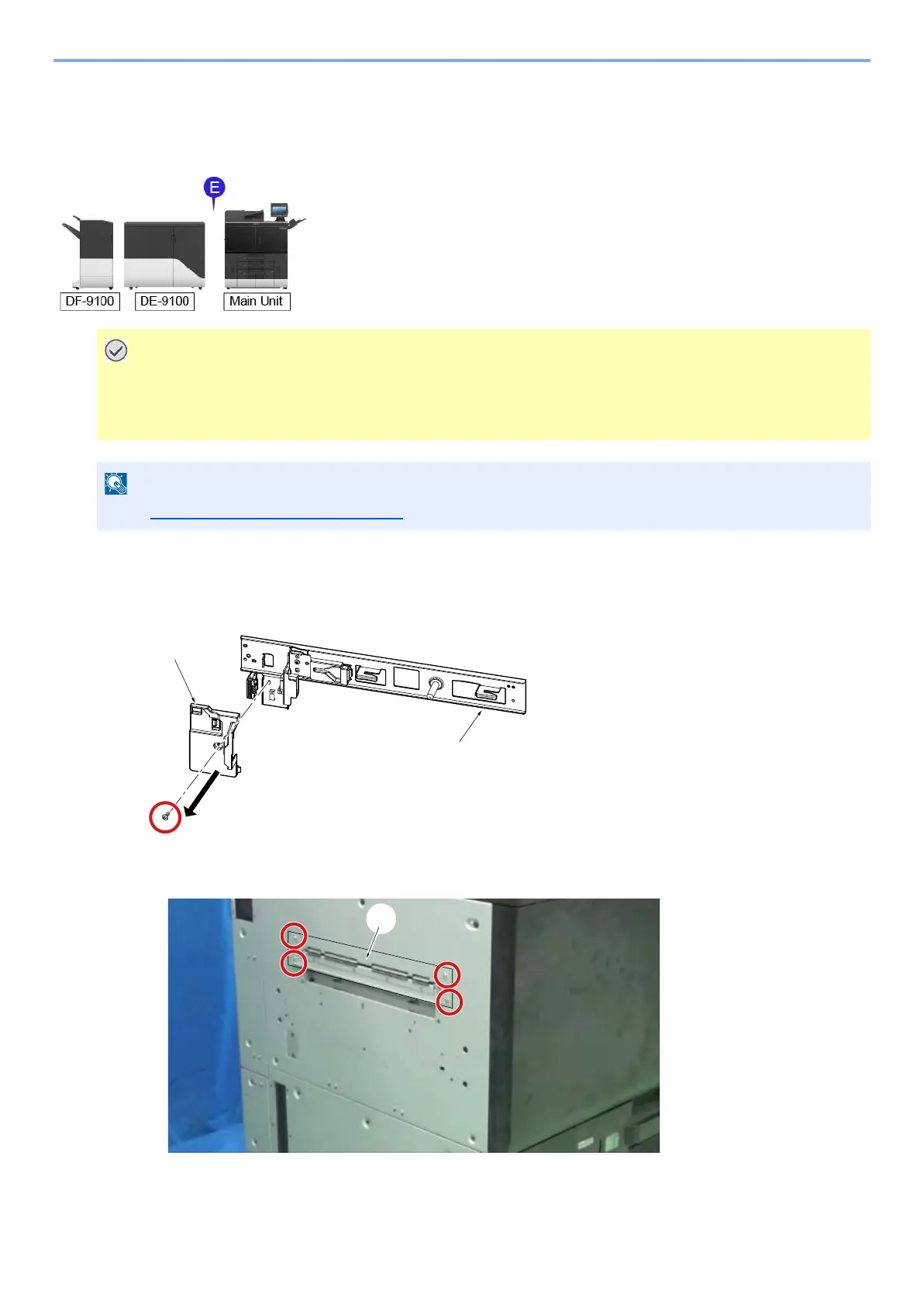

Remove the connect cover [B] from connecting plate [A] (Screw x1). The connect
cover [B]and the screw will be used in step 6.
2
Attach exit guide [A] (Screw x4: M4x8).
IMPORTANT
• All tapes and packing materials on the accessories have to be removed.
• Main power switch has to be turned off and power cable has to be unplugged before install Inverter and
Decurler Unit (DE-9100).
NOTE
• See Inverter and Decurler Unit (DE-9100) for unpacking.
[A]
[B]
[A]
