Kyocera PH-7D - Page 121

3-43
Enhancement device setup procedure > Optional device installation
[CONFIDENTIAL]
12

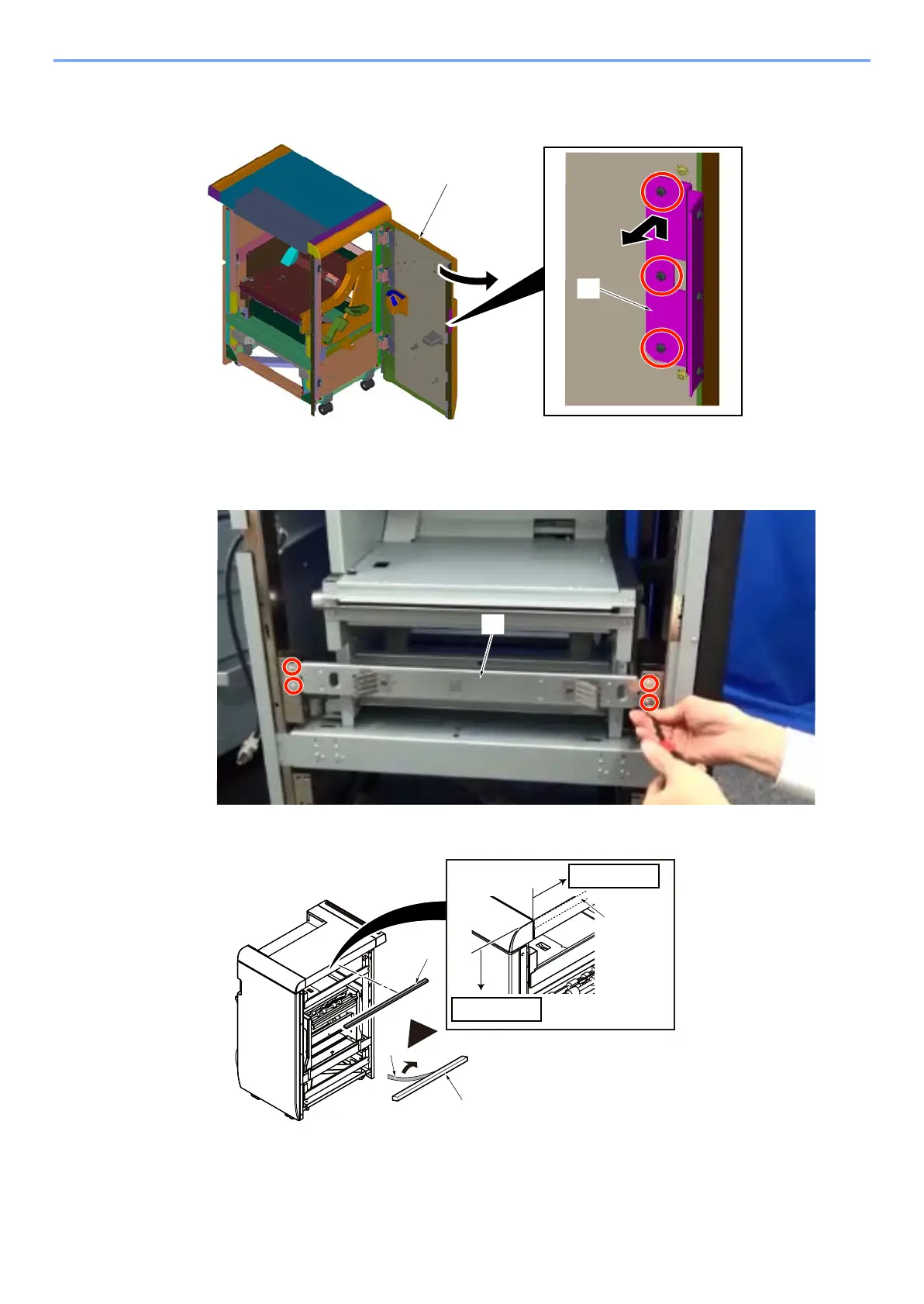

Open the front cover [A] and remove plate [B] (Screw x3). The plate [B] and the
screws will not be used in this installation.
13
Close the front cover.
14
Attach stay lock upper [A] (Screw x4: M4x12).
15
Peel off the release paper [B] on sponge [A] and put in on dashed line [C].
[B]
[A]
[A]
[B]
0 to 5mm
0 to 5mm
[A]
[A]
[C]
