Kyocera PH-7D - Page 157

3-79
Enhancement device setup procedure > Optional device installation
[CONFIDENTIAL]
96

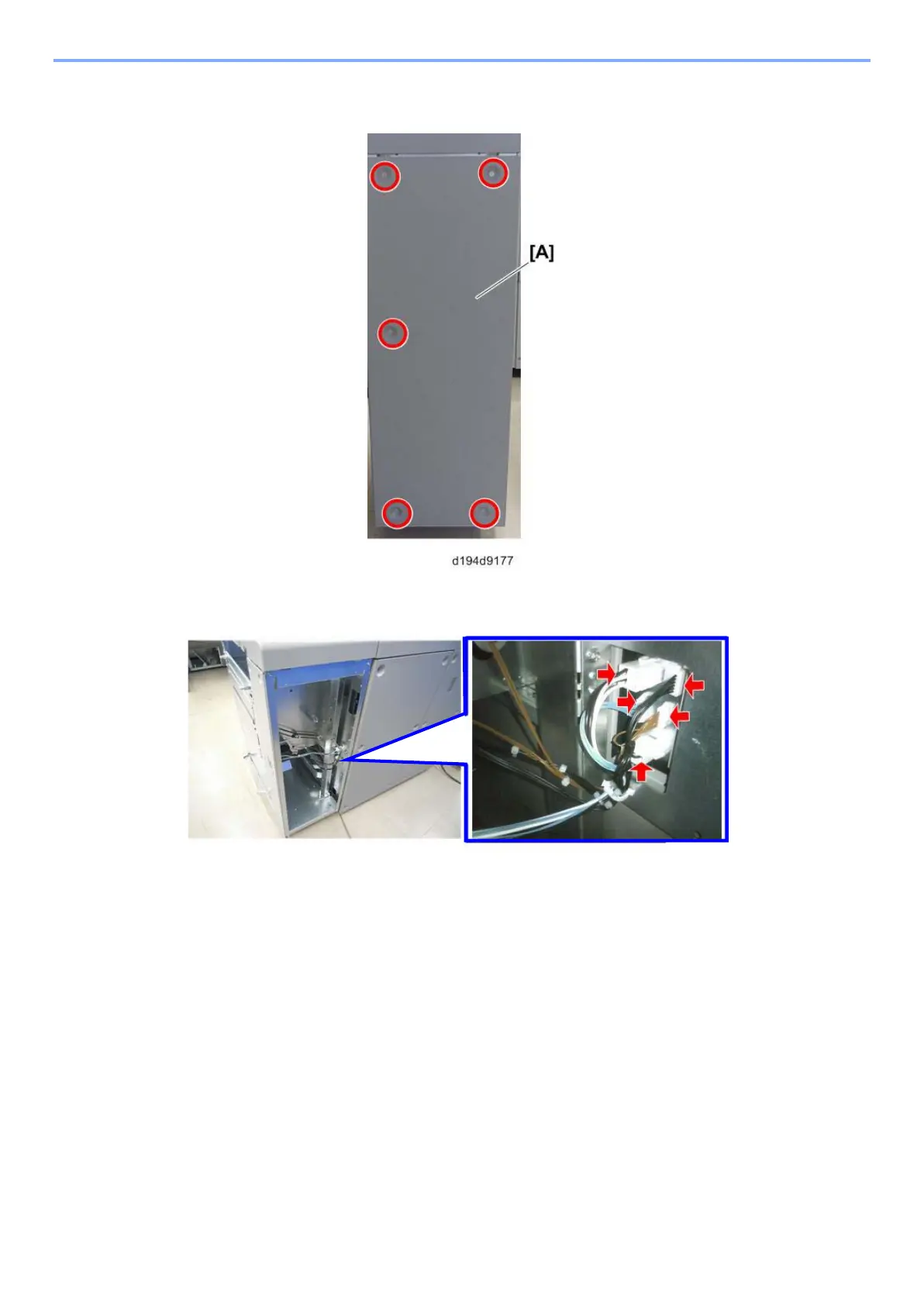

Remove the rear cover [A] from the bridge kit (Screw x5). These screws are used in
Step 98.
97
Connect the harness of the rear side of the bridge kit to the downstream paper feeder
(Connector x5).
