3-194
Enhancement device setup procedure > Optional device installation
[CONFIDENTIAL]
161

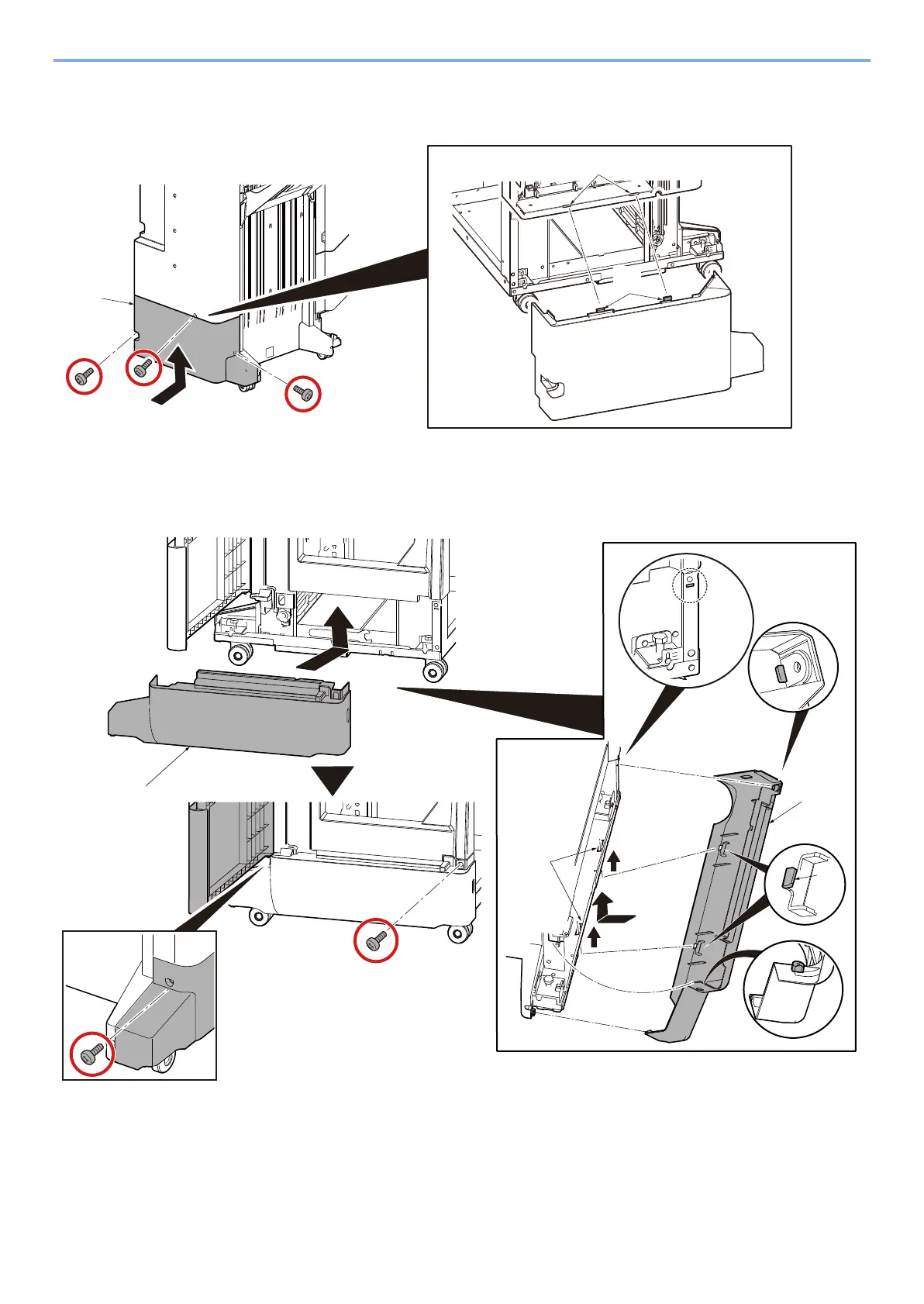

Get 2 projections [B] into holes [C] of the foot cover rear [A]. Put back the foot cover
to the original position (Screw x3). Screw was removed in step 154.
162
Get 2 projections [B] into holes [C] of the foot Front [A]. Put back the foot rear cover
[A] to original position (Screw x2). Screw was removed in step 153.
[A]
[B]
[C]
[A]
[A]
[C]
[B]
