Enhancement device setup procedure > Optional device installation
[CONFIDENTIAL]
8

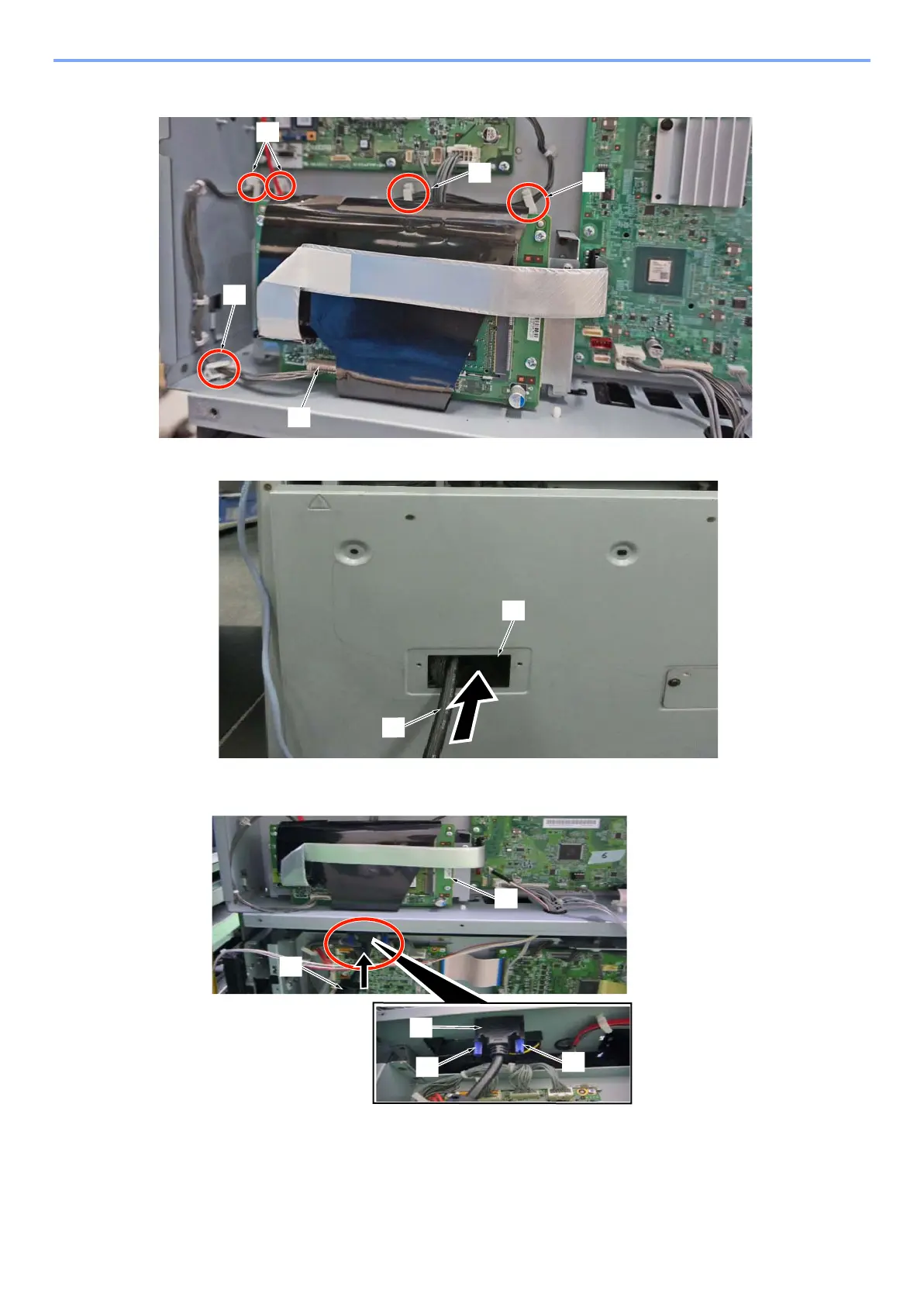

Fix the Fiery cable [A] with the a 5 clamps [B].
9
Pass the DVI cable [A] through a rectangle hole [B] in the Rear Lower cover.
10
Secure the DVI cable [B] onto Fiery Relay PWB [C] with screw [A].
