6-36
Machine transportation after setup > Procedure for the main unit transportation (Truck transportation)
[CONFIDENTIAL]
17

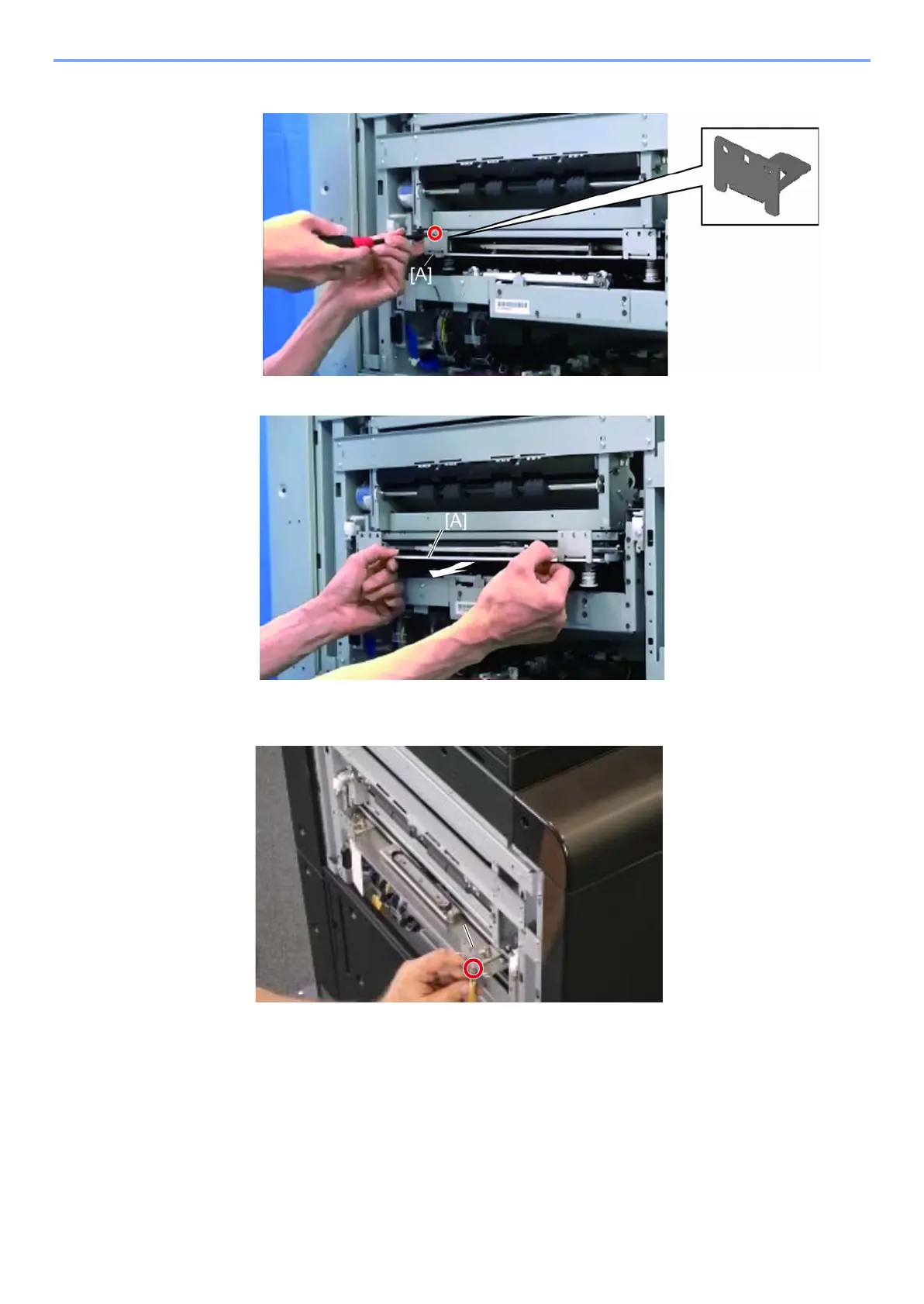

Remove the screw of the cap rear plate [A]. (Screw x1)
18
Pushing down the cap unit [A] and pull it out slightly.
19
Remove the screw from the lower side of the cap front plate [A] with a screwdriver
then remove the plate. (Screw x1)
[A]
