6-40
Machine transportation after setup > Procedure for the main unit transportation (Truck transportation)
[CONFIDENTIAL]
28

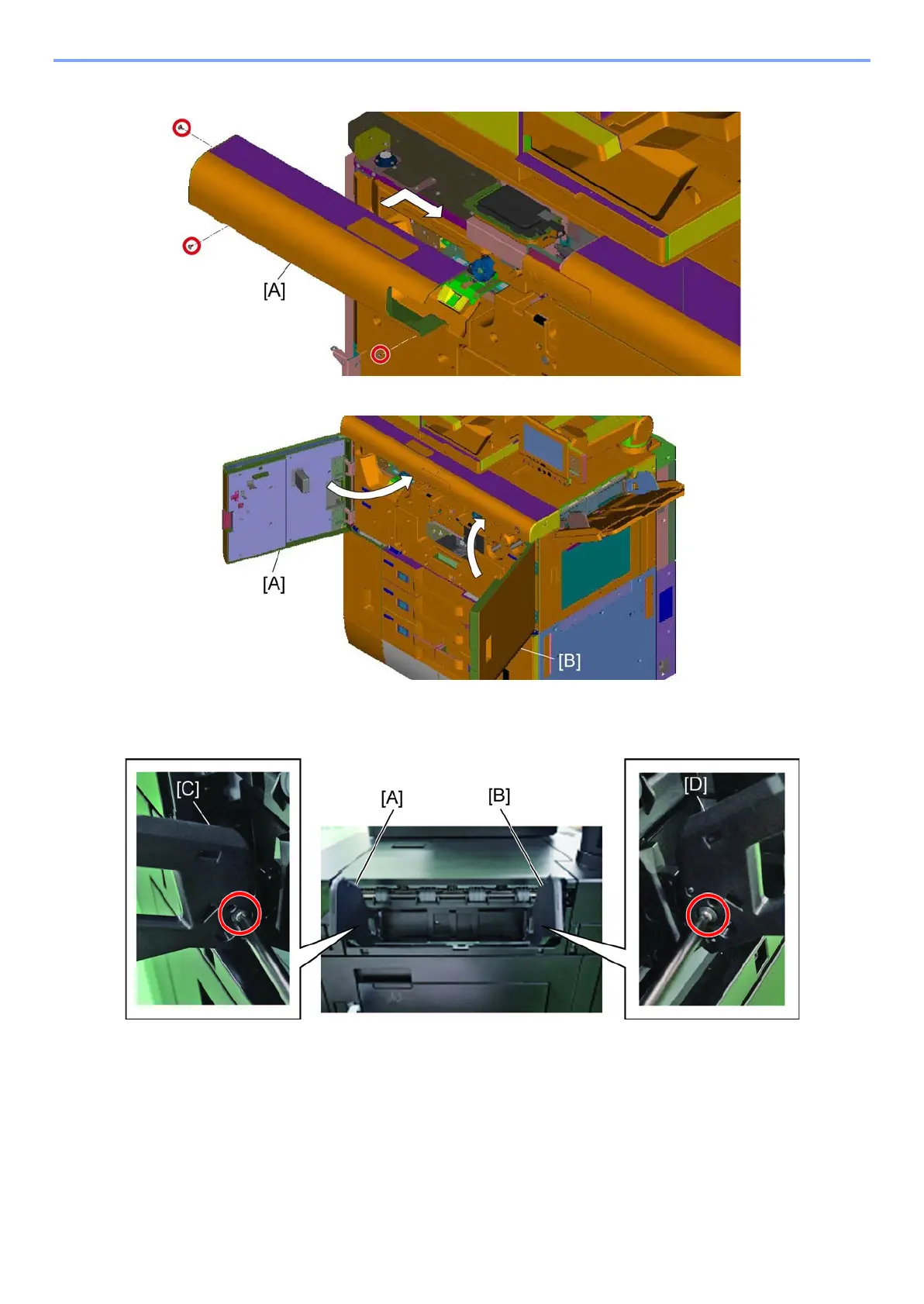

Reattach the left front upper cover to the original position. (Screw x3)
29
Close the front left upper cover [A] and the front right upper cover [B].
30
Attach the front width guide [C] to the front guide bracket [A]. (Screw x1)
31
Attach the rear width guide [D] to the front guide bracket [B]. (Screw x1)
To Next Page
