2-44
The main unit setup procedure > Ink initial supply (Set up flow)
[CONFIDENTIAL]
26

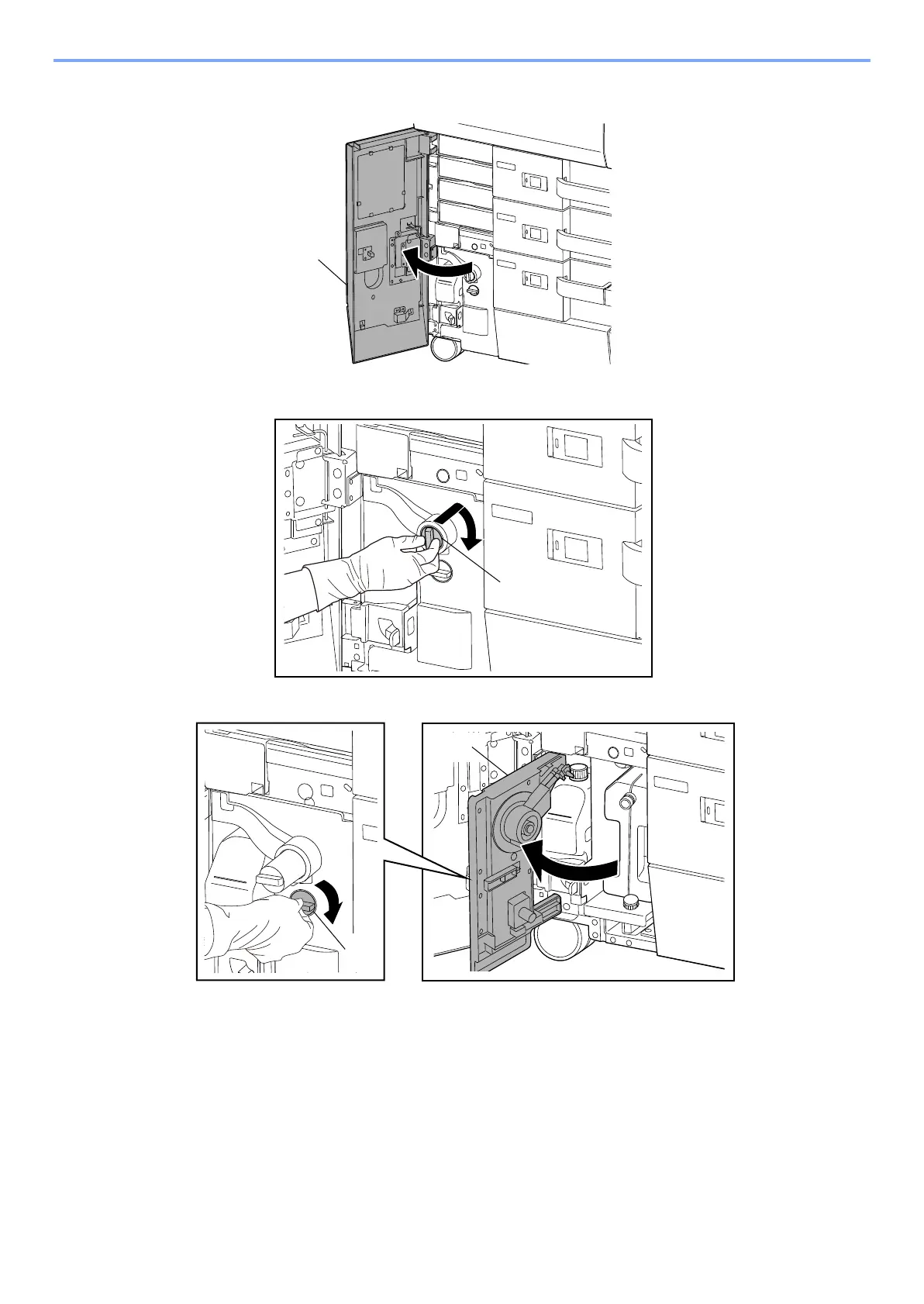

Open the front left lower cover [A].
27
Rotate the waste ink tank nozzle release lever [A].
28
Rotate the lock dial [A] to release lock, and open the waste ink cover [B].
[A]
[A]
[A]
[B]
