Vehicle Super Probe
- 3 -

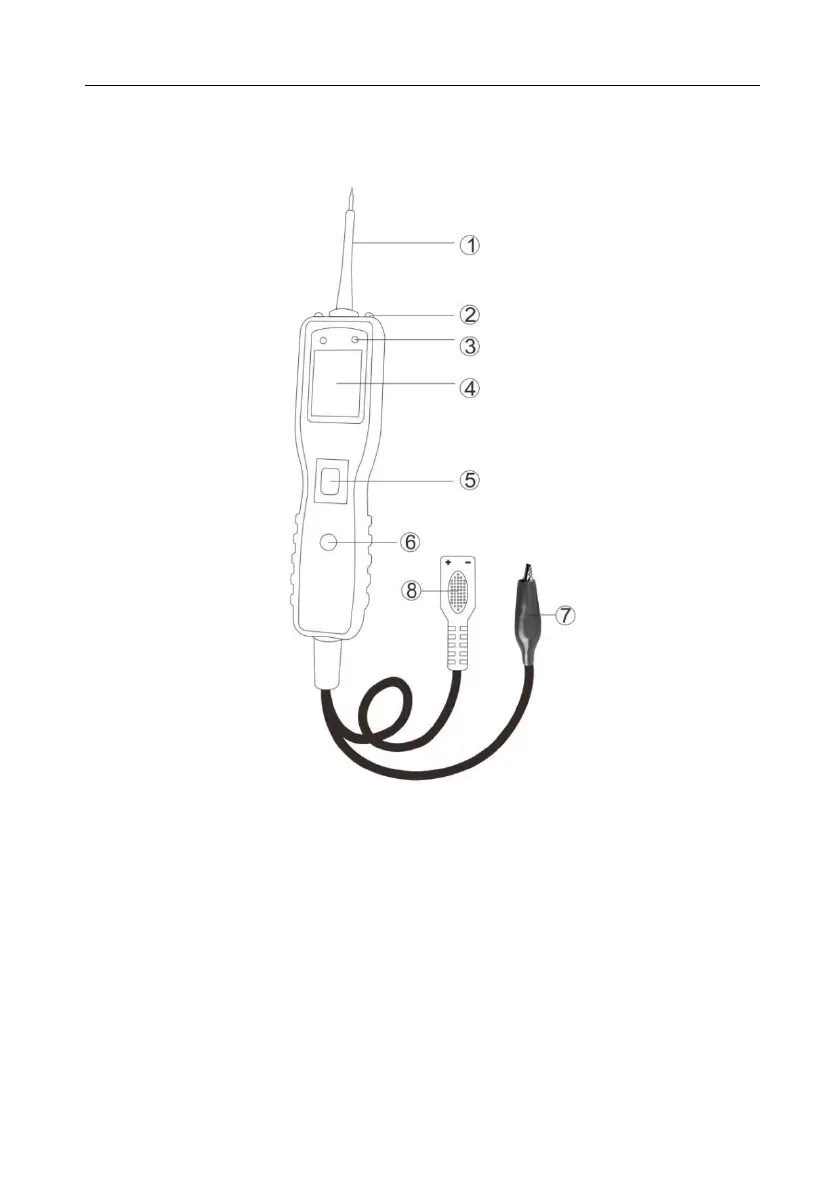

2.2 Tool Description
① Probe Tip - Contacts the circuit or component to be tested.
② Head Lights - Illuminates dark work areas or work areas at night.
③ Red/ Green Polarity Indicator - Identifies positive, negative or open circuits. The
RED Indicator lights when the Probe Tip is contacting a positive circuit. The GREEN
Indicator lights when the probe Tip is contacting a negative circuit.
④ LCD Display - Indicates test results.
⑤ Power Switch - Allows you to conduct a positive or negative battery current to the
tip for activating and testing the function of electrical components.
⑥ Mode Button - Selects the work mode: AC voltage, DC voltage, resistance,
diode.
⑦ Auxiliary Ground Lead - Assists test as a ground lead.
⑧ Adaptor -Connects to the battery.
